Knuth SSB 40 Xn Column Drill Press ( Part No. 162339 ) Universal drill press for workshop applications
+3

Knuth SSB 40 Xn Column Drill Press ( Part No. 162339 ) Universal drill press for workshop applications

162339
£6,841.00
In stock
1
Product Details

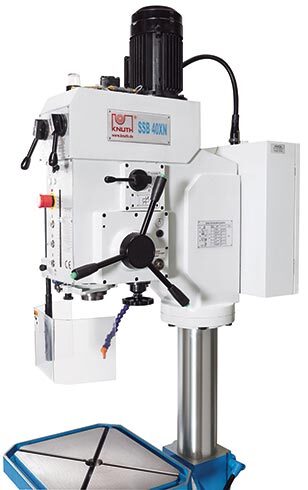

Knuth SSB 40 Xn Column Drill Press

( Part No. 162339 )

Universal drill press for workshop applications

Ex stock availability. 4 weeks. Subject to no prior sales





Highlights

  • Knuth SSB 40 Xn Column Drill Press
  • The SSB Xn-Series drill presses are the right choice for every workshop, both for repair and production. These universal drilling machines have a thick-walled column, powerful drives and robust gearboxes for the spindle and feed. The large work area and the large, universal clamping tables enable easy handling and processing of small workpieces, but also large and heavy parts and assemblies. With its proven reliability, this series has been one of our best-selling solutions for more than 20 years.
    • Swivel table for angle drilling
    • Automatic drill feed
    • Worktable with 2 rotary axes for flexible operation
    • Tiltable milling head (SSB 32 XN)
    • Well thought out security features

Detail

  • Stable cast iron construction with thick-walled column
  • Thread cutting device as standard
  • Automatic drill feeds are switched on and off via an electromagnetic clutch
  • Fully equipped with coolant system and work light

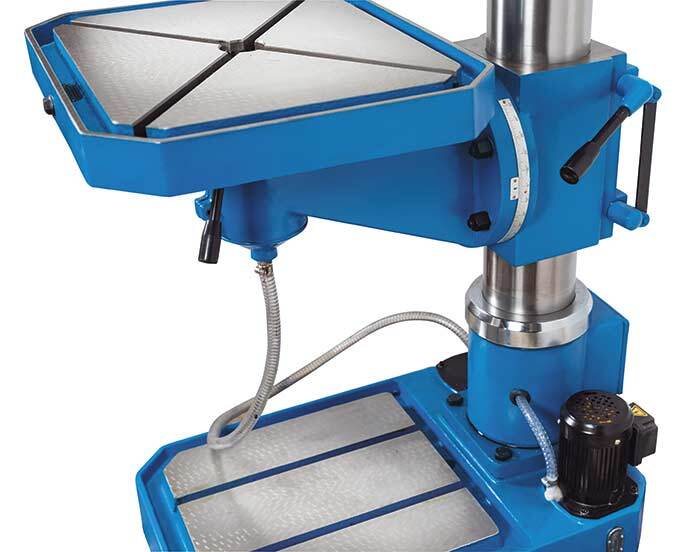

  • Table can be rotated and swiveled ± 45°

Technical Details

WORKSPACE
drilling performance 40mm
table mounting surface 540mm x 440mm
table load capacity 150kg
Tapping performance, steel M24
unloading 340mm
Distance spindle nose - table surface 610mm
Table swivel range (max.) ± 45°
quill stroke 190mm
column diameter 140mm
Distance spindle nose - foot 1195mm
Swivel range head -
table lift 550mm
MAIN SPINDLE
spindle mount MK 4
spindle speed 75 rpm - 2020 rpm
Spindle speed levels 12
FEED
quill feeds 0.12; 0.24; 0.4mm/rev
DRIVE POWER
Main drive engine power 1.5kW
supply voltage 400v
MASS AND WEIGHT
Dimensions (length x width x height) 0.95m x 0.61m x 2.23m
Weight 550kg

Standard Equipment

Thread cutting device
Protective shield
LED work light
Coolant device

Operating tool

Operating
instructions

Optional Equipment

Wide range of optional equipment available for this machine as follows

accessory set MK 4 8 pcs. SKU: 104594
PB 120 prism drill vice SKU: 104845
grip type. Deluxe 14/M12 SKU: 105295
Coolant concentrate 5 l SKU: 103184
Universal facing and boring head ADA / MK 4 SKU: 103402
Boring head & boring bar set 75mm 12 pcs . SKU: 108633
Receiver shaft MK4 SKU: 108641
Oscillating elements LK 3 SKU: 103330
Reducing sleeve MT 4/1 SKU: 103820
Reducing sleeve MT 4/2 SKU: 103825
Reducing sleeve MT 4/3 SKU: 103830
Extension sleeve MT 4/5 SKU: 104670
Punch MK 4/5 SKU: 104695
Insertion spigot MK4 / B16 SKU: 104745
Insertion spigot MK 4/B 18 SKU: 104750
Keyless chuck 1-13 mm B16 SKU: 104765
Keyless chuck 3-16 mm B18 SKU: 104770
Tapping attachment MK3/4 M5-M12 SKU: 106035
Tapping attachment MK3/4 M8-M20 SKU: 106037
HSS countersink set approx. 2-12mm SKU: 107615
HSS countersink set approx. 6-20mm SKU: 107617
Boring head & boring bar set 50mm 9 pcs. SKU: 108631
Combination countersink set SKU: 108655
Countersink 90° SKU: 108665
PBS 140 machine vise SKU: 125006
PBS 200 machine vise SKU: 125007
UMS 140 vice SKU: 125031


Please contact us via email for price details of any options of interest.
