Knuth ABS 350 C Fully Automatic Band Saw
( Part No.152758 )
Cost effective fully automated band saw with adjustable cutting angle
Ex stock availability. 4 Weeks. Subject to no prior sales.
Highlights
Knuth ABS 350 C Fully Automatic Horizontal Miter Band Saw
The ABS 350 C is a robust, fully automatic band saw designed for maximum reliability. The model impresses with high-quality components and a heavy, solid machine frame. The automatic feed via driven rollers in the clamping jaws enables continuous operation, perfect for single and series production. The angle cutting function increases its versatility and allows it to cover a wider range of applications.
- Vice with feed rollers
- Saw frame swivels in one direction
- Touchscreen control panel
- Lift height limitation shortens non-productive times
- workpiece counter
- manual bundle clamping device
Detail
- The ABS 350 C is a fully automatic, horizontal miter band saw for series processing of solid material, tubes and profiles
- The material is fed by driven rollers integrated into the vice
- This efficient and economical solution has been tried and tested many times over and convinces with its robustness and precise cut
- The saw frame is particularly stable, insensitive to oscillations and vibrations and can be swiveled manually by up to 45°
- Very stable, adjustable carbide saw band guides ensure high vertical angle accuracy
- The saw frame is lifted and the workpiece is powerfully clamped hydraulically
- The feed of the saw frame can be finely adjusted via a hydraulic valve

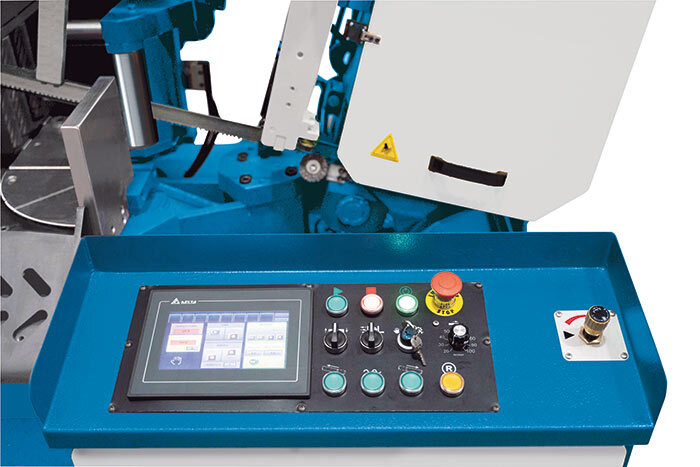

- Switches and controls are clearly arranged on the control panel integrated in the control cabinet
- The touchscreen enables easy and clear programming for fully automatic operation
- The infinitely variable speed motor transmits its power to the drive wheel of the saw blade via a deflection gear designed for continuous operation
- Correct saw blade tension can be checked on a manometer
- An automatic strip breakage control, a powerful coolant device and an effective chip brush round off the standard accessories
- An additional roller conveyor and a small quantity cooling device are optionally available
Technical Detail
| CUTTING PERFORMANCE | |
|---|---|
| Cutting capacity 0° (round) | 350mm |
| Cutting capacity 0° (square) | 350mm |
| Cutting capacity 0° (rectangular) (length x width) | 400mm x 350mm |
| cutting speed | 20m/min - 100m/min |
| Cutting capacity 30° (round) | 320mm |
| Cutting capacity 30° (rectangular) (length x width) | 400mm x 350mm |
| Cutting capacity 30° (square) | 320mm |
| Cutting capacity 45° (round) | 320mm |
| Cutting capacity 45° (rectangular) (length x width) | 290mm x 300mm |
| Cutting capacity 45° (square) | 290mm |
| DRIVE POWER | |
|---|---|
| Main drive engine power | 2.2kW |
| Engine power hydraulic pump | 0.37kW |
| engine power feed | 0.25kW |
| Engine power coolant pump | 0.12kW |
| MASS AND WEIGHT | |
|---|---|
| Dimensions (length x width x height) | 2.45m x 0.92m x 2.02m |
| Weight | 1050kg |
| tape dimensions | 4160mm x 34mm x 1.1mm |
Standard Equipment
Automatic band breakage control
Bundle clamping device
Coolant system
Hydraulic workpiece clamping
Operating tool
Saw band
Chip scraper
Infeed roller conveyor 1.2 m
Operating instructions
Optional Equipment
Please contact us for price and delivery details of optional equipment
