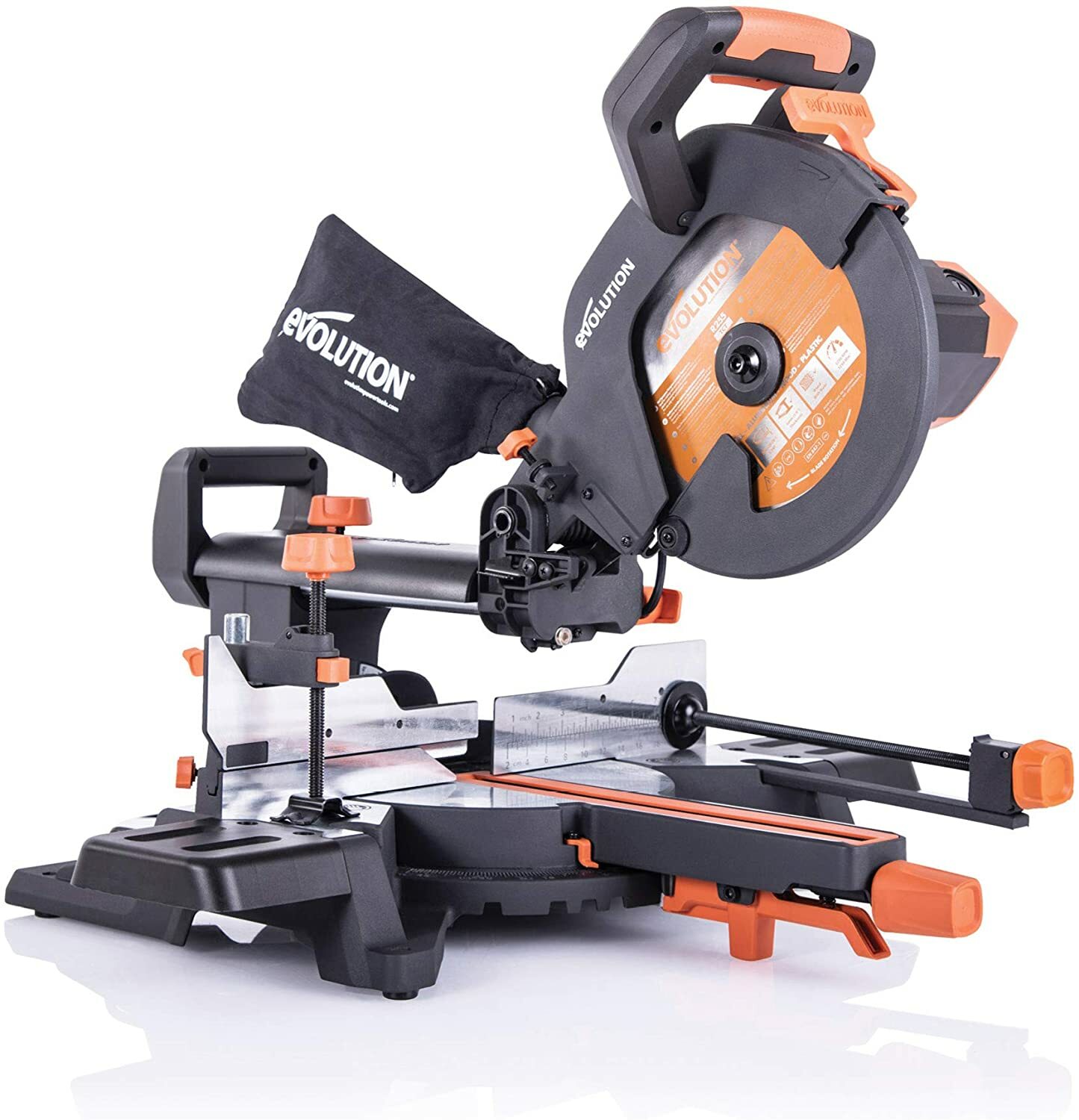

Evolution R255SMS+ - 255mm Sliding Mitre Saw With TCT Multi-Material Cutting Blade

Evolution R255SMS+ - 255mm Sliding Mitre Saw With TCT Multi-Material Cutting Blade

Highlights

Trade rated and approved the R255SMS+ is the ultimate tool on the job site. Accuracy, power and reliability at the forefront of its design, this 255mm sliding mitre saw is equipped to power through 6mm thick mild steel, and cut hardwood, laminate and even nail-embedded wood with precision.

Multi-Material cutting technology. One saw, one blade, cuts all.*, one blade cuts all. *

• Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
• Smooth, square, reliable cutting every time in a variety of materials.
• Powerful 2000W (240v) / 1600W (110v) hi-torque, optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
• Clean & consistent smooth cutting to within +/- 0.5˚ with 0° - 45° bevel tilt and 50˚ - 50˚ mitre angles with quick click mitre stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.
• Slice through skirting boards, cornices, boards, decking and more up to 300mm x 80mm.
• Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.
• Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.
• The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
• 3 Year limited warranty.

PLUS+ Features

• Premium Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included for long-life, multi-material cutting.
• Dual Quick-Release clamps included for additional accuracy & faster adjustments.
• Slide rail protector included protects against damage & prevents dust ingress.
• Cleaner & safer working environment with dust collection bag & dust port adaptor for use with vacuum extraction.
• Integrated carry handles - easy to carry & transport around the workplace.
• 3m power cable reduces the need for extension leads.

110 v or 230v versions of this machine available

Technical Specification

Motor (110V 50Hz):1600W

Motor (240V 50Hz):2000W

Speed No Load:2500 min ^-1 Max.

Mitre:50° - 50°Max.
Bevel (Left):45°
Blade Guard:Cast Aluminium
Cable Length:3m
Blade Dia.:255mm
No. of Teeth:28
Bore:25.4mm
Kerf:2mm
Max.Cross Cut (0° x 0°):300mm x 80mm
Max. Bevel Cut (0° x 45°):300mm x 45mm
Max. Mitre Cut (45° x 0°):210mm x 80mm
Max. Compound Cut (45° x 45°):210mm x 45mm
Mild Steel Plate (Max. Thickness):6mm
Mild Steel Box Section (Max. Wall Thickness):3mm
Product Dimensions:360mm x 705mm x 730mm (with saw head down)
Packaging Dimensions:365mm x 565mm x 520mm
Product Weight:15.3 kg
Packaged Weight:18.5 kg
Sound Pressure Level L _PA :110V: 95.8 dB(A) / 220-240V: 95.8dB(A)
Sound Power Level L _WA :110V: 108.8 dB(A) / 220-240V: 108.8dB(A)
Uncertainty K:K _pA & K _WA : K=3 dB(A)

Laser Class:Class 2

Laser Source:Laser Diode

Laser Output Power (Max):<1mWWave Length (Nm):650

Optional

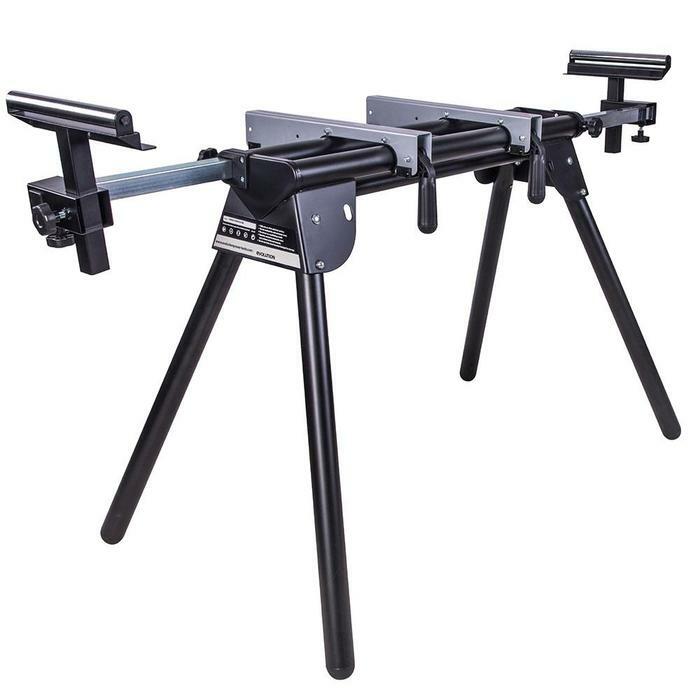

Evolution Mitre Saw Stand With Universal Fittings

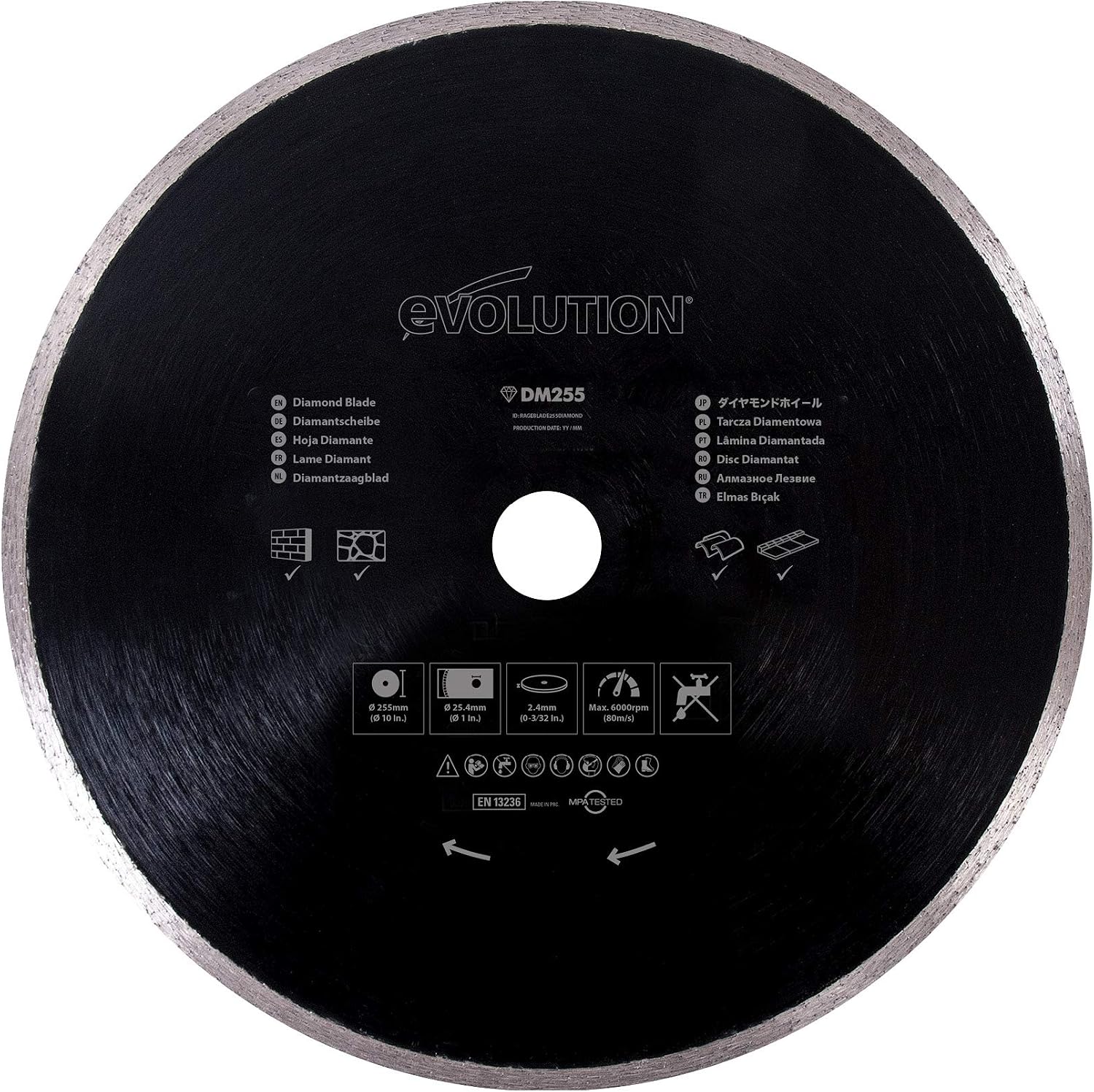

Evolution 255 mm Diamond Blade

Evolution Warranty

Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
