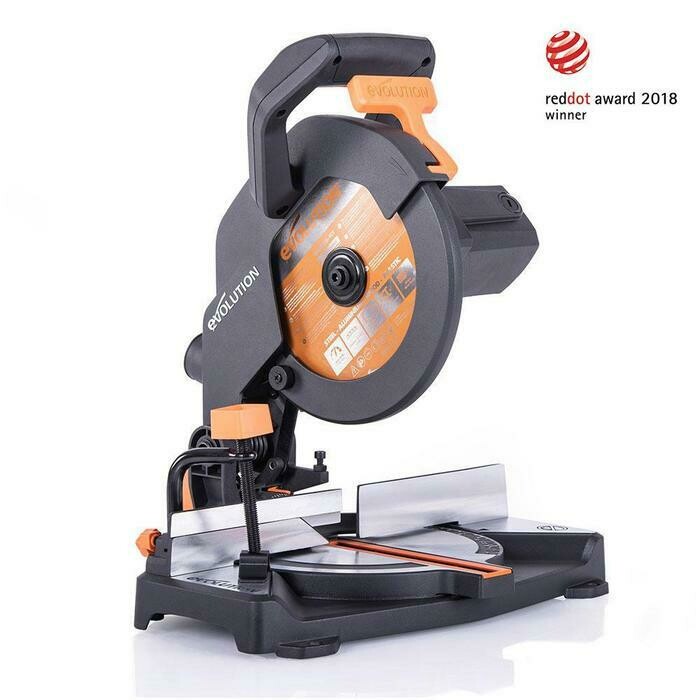

Evolution R210CMS - 210mm Compound Mitre Saw
Evolution R210CMS - 210mm Compound Mitre Saw
Highlights
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with 0˚ - 45˚ bevel tilt and 45˚ - 45˚ mitre angles.
- Reliable, smooth, square cut every time in a variety of materials.
- Powerful 1200W hi-torque motor with optimised gearbox & blade system.
- Compact, lightweight & robust design, weighing only 5.8kg. Easy to carry with one hand and stare away taking up very little space.
- 125mm x 55mm max. cross cut capacity.
- Positive mitre stops both left & right at 0˚, 15, 22.5, 30, and 45˚ covers all common cutting angles accurately and reliably.
- Ergonomic trigger handle designed for left and right-handed use.
- Compatible with the Evolution Mitre Saw Stand (Sold Separately).
- Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.
- 3 Year limited warranty.
Technical Details
| Motor (110V 50Hz): | 1200W |
| Motor (240V 50Hz): | 1200W |
| Speed No Load: | 3750 min -1 |
| Max. Mitre: | 45° - 45° |
| Max. Bevel (Left): | 45° |
| Blade Guard: | Cast Aluminium |
| Cable Length: | 2m |
| Dust Port Diameter: | 35mm |
| Blade Dia.: | 210mm |
| No. of Teeth: | 20 |
| Bore: | 25.4mm |
| Kerf: | 1.7mm |
| Max. Cross Cut (0° x 0°): | 125mm x 55mm |
| Max. Bevel Cut (0° x 45°): | 125mm x 35mm |
| Max. Mitre Cut (45° x 0°): | 85mm x 55mm |
| Max. Compound Cut (45° x 45°): | 85mm x 35mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Mild Steel Box Section (Max. Wall Thickness): |
4mm |
| Product Dimensions: | 260mm x 393mm x 381mm |
| Packaging Dimensions: | 420mm x 290mm x 310mm |
| Product Weight: | 5.8 kg |
| Packaged Weight: | 7.2 kg |
| Sound Pressure Level L PA : | 110V: 96.02 dB(A) / 220-240V: 97.14dB(A) |
| Sound Power Level L WA : | 110V: 109.02 dB(A) / 220-240V: 110.14dB(A) |
| Uncertainty K: | K pA & K WA : K=3 dB(A) |
110 v or 230v versions of this machine available
Optional
Mitre Saw Stand With Universal Fittings
Technical Details
| Max. Length Material Support: | 3m |
| Max. Load: | 150kg |
| Max. Saw Mounting Hole Spacing: | 680mm x 330mm |
| Collapsed Product Dimensions: | 1000mm x 280mm x 230mm |
| Assembled Product Dimensions: | 1100mm x 600mm x 750mm |
| Arms Fully Extended Product Dimensions: | 1970mm x 600mm x 750mm |
| Packaging Dimensions: | 945mm x 265mm x 300mm |
| Product Weight: | 15.5kg |
| Packaged Weight: | 17.65kg |
210mm Dia Diamond Blade ( RAGEBLADE210DIAMOND)
Evolution Warranty
Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty
with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
