Evolution RAGE4 - 185mm Chop Saw with TCT Multi-Material Cutting Blade
Evolution RAGE4 - 185mm Chop Saw with TCT Multi-Material Cutting Blade
Highlights
The Evolution RAGE4 is a 185mm chop saw designed exclusively for Electricians and Plumbers. Producing fast, ultra-clean cuts through armoured cable, Unistrut and cable tray, as well as conduit, chrome, copper & plastic pipe, plus plastic hose. Easier to use than a hacksaw, far more portable than a 14" (355mm) chop saw.Multi-Material cutting technology.
One saw, one blade, cuts all.*
- Accurate cutting - cuts mild steel with ready-to-weld, clean & square cold-cuts.
- Unlike abrasive cutting, the RAGE4 TCT blade cuts steel with no harmful dust, no burrs & virtually no sparks, leaving an instantly workable finish.
- Reliable smooth square cutting every time in a variety of materials.
- Powerful 1250W hi-torque motor with optimised gearbox & blade system.
- Accurate & durable vice portability with 0Ëš - 45Ëš mitre detents.
- A robust, durable base - ideal when handling heavy-duty, metallic applications.
- Lightweight, easy to transport, taking up little space, weighing only 9.1kg.
- Versatile, repositional fence for cutting of round, square & rectangle materials.
- Chip guard & dust extraction port for added safety & cleaner working environment.
- Compatible with the Evolution 185mm Diamond blade for cutting stone, concrete, and brick. (Sold separately).
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
- 3 Year limited warranty.
Technical Details
| Motor (110V 50Hz): | 1250W |
| Motor (240V 50Hz): | 1250W |
| Speed No Load: | 4500min -1 / RPM |
| Max. Mitre: | 45° |
| Blade Dia.: | 185mm |
| No. of Teeth: | 20 |
| Bore: | 20mm |
| Kerf: | 1.7mm |
| Max. Cross Cut (0° x 0°): | 45 x 97mm |
| Max. Mitre Cut (45° x 0°): | 40 x 40mm |
| Max Round Tube (0° x 0°): | 50mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Product Dimensions: | 255mm x 381mm x 267mm |
| Packaging Dimensions: | 510mm x 320mm x 310mm |
| Product Weight: | 9.1kg |
| Packaged Weight: | 10.2kg |
| Sound Pressure Level L PA : | 93dB(A) K=3 dB(A) |
| Sound Power Level L WA : | 106dB(A) K=3 dB(A) |
| Vibration Level: | 4,5m/s 2 |
| Uncertainty K: | 1,5m/s 2 |
110 v or 230v versions of this machine available
Optional
Highlights

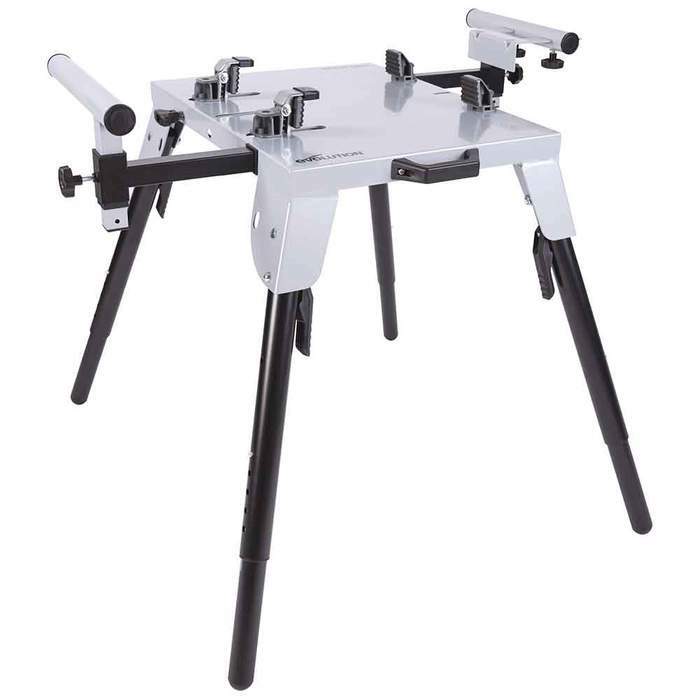

Working with long, heavy steel tubes? Now you can take your chop saw anywhere with the sturdy and robust chop saw stand for versatile, portable cutting which can support up to 225kg.
- Universal fittings to fix most leading brand chop saws securely.
- Bespoke table height setting with adjustable legs from 595 - 815mm.
- Left and right work arms extend the workpiece support area up to 106cm.
- Built-in end stop, makes repeat cutting faster and easier than ever before.
- Telescopic and folding legs for easy storage and portability.
- Heavy-duty design built to support up to 225kg.
- 3-year guarantee.
- Compatible with the Evolution RAGE2, RAGE4, EVOSAW355, R355CPS and S355CPS chop saw models.
Technical Details
- able size: 460 x 600mm
- Min. Chop Saw Base Width: 220mm
- Max. Chop Saw Base Width: 322mm
- Table Height: 595mm - 815mm
- Footprint at floor: 834 x 963mm
- Max. Load: 225kg
- Product Weight: 16kg

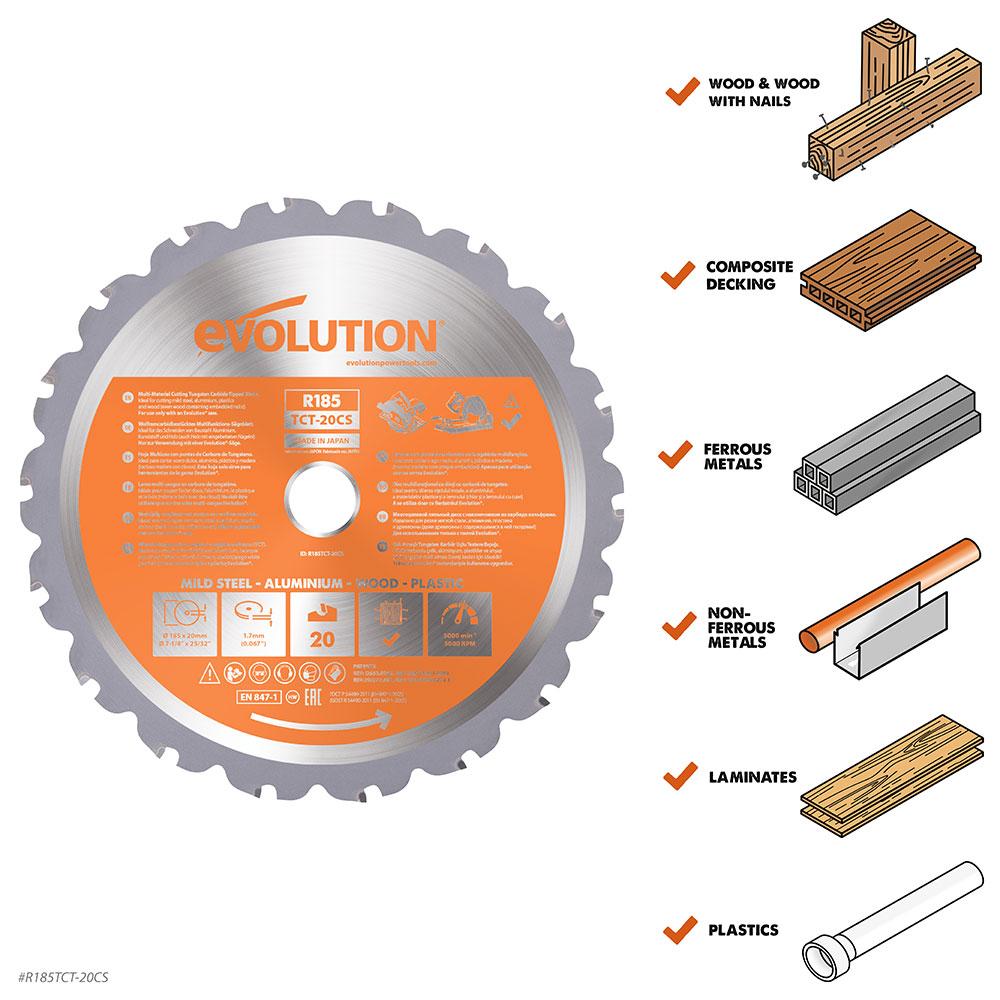

2/ Evolution 185mm Multi-Material Cutting 20T Blade R185TCT-CS Circular & Chop SawsR185TCT-20CS
Evolution Warranty
Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty
with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
