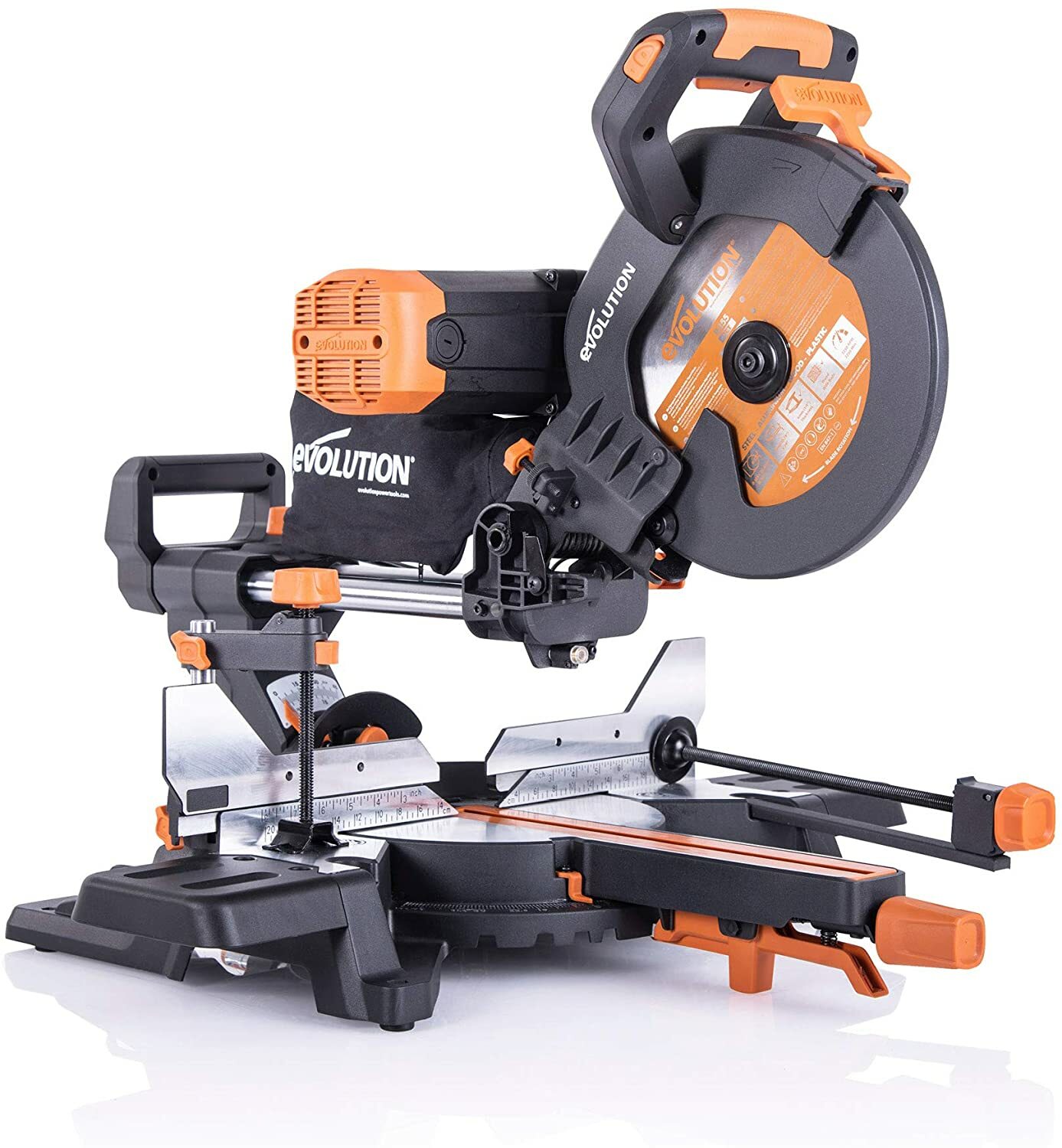

Evolution R255SMS-DB+ - 255mm Double Bevel Sliding Mitre Saw With TCT Multi-Material Cutting Blade
Evolution R255SMS-DB+ - 255mm Double Bevel Sliding Mitre Saw With TCT Multi-Material Cutting Blade
Highlights
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
- Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs & virtually no sparks.
- Powerful 2000W hi-torque optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
- Perform accurate Crosscuts, Mitre cuts, Bevel cuts and Compound cuts with adjustable precision settings.
- Cut to within +/- 0.5Ëš with 45° - 45° bevel tilt and 50Ëš - 50Ëš mitre angles with quick click miter stops at 0Ëš, 15, 22.5, 30, and 45Ëš both left & right.
- An impressive 300mm x 90mm max. crosscut capacity enables you to cut 4 x 4-inch posts.
- Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.
- Compatible with Evolution's Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.
- The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
- 3 Year limited warranty.
PLUS+ Features
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included for long-life, multi-material cutting.
- Quick-Release top clamp included for additional safety and faster adjustments.
- Tall neck and fences for increase cut capacity and versatility when cutting materials stood upright such as skirting and cornices.
- Laser-guided precision projects the cutting line on your workpiece for assisted straight-line cutting.
- Cleaner and safer working environment with a dust collection bag and dust port adaptor for use with vacuum extraction.
- Integrated carry handles - easy to carry and transport around the workplace.
- 4m rubber power cable gives you the power and reach you need to get the job done.
Technical Details
| Motor (240V 50Hz): | 2000W |
| Motor (110V 50Hz): | 1600W |
| Speed No Load: | 2600 min -1 |
| Max. Bevel (Left): | 45° - 45° |
| Max. Mitre: | 50° - 50° |
| Cable Length: | 4m |
| Blade Dia.: | 255mm |
| No. of Teeth: | 28 |
| Bore: | 25.4mm / 1 in. |
| Kerf: | 2mm |
| Max. Cross Cut (0° x 0°): | 300mm x 90mm |
| Max. Bevel Cut Left (0° x 45°): | 300mm x 52mm |
| Max. Bevel Cut Right (0° x 45°): | 300mm x 34mm |
| Max. Mitre Cut (45° x 0°): | 212mm x 90mm |
| Max. Compound Cut Left (45° x 45°): | 212mm x 52mm |
| Max. Compound Cut Right (45° x 45°): | 212mm x 34mm |
| Mild Steel Plate (Max. Thickness): |
1/4 in. |
| Mild Steel Box Section (Max. Wall Thickness): |
1/8 in. |
| Product Dimensions: | 570 x 545 x 385mm |
| Packaging Dimensions: | 575 x 545 x 385mm |
| Product Weight: | 18.24 kg |
| Packaged Weight: | 20.5 kg |
| Sound Pressure Level L PA : | 95,8 dB(A) K=3 dB(A) |
| Sound Power Level L WA : | 108,8 dB(A) K=3 dB(A) |
110 v or 230v versions of this machine available

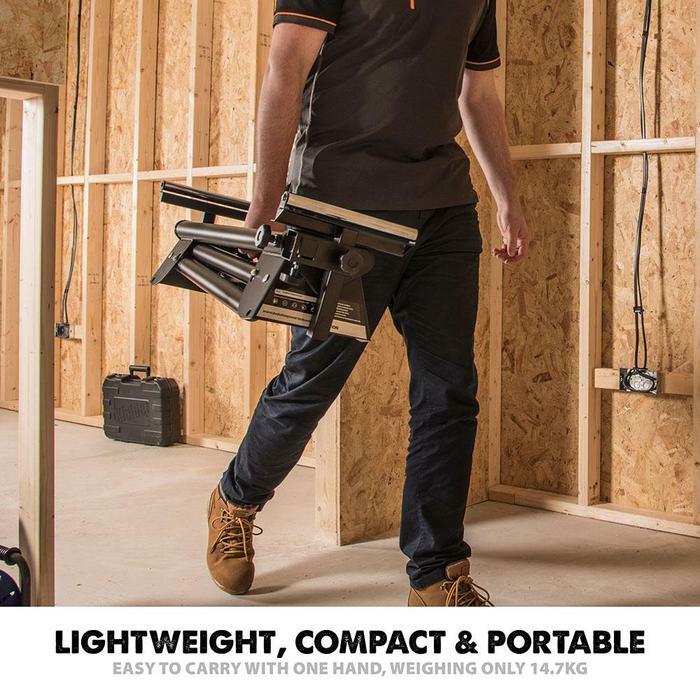

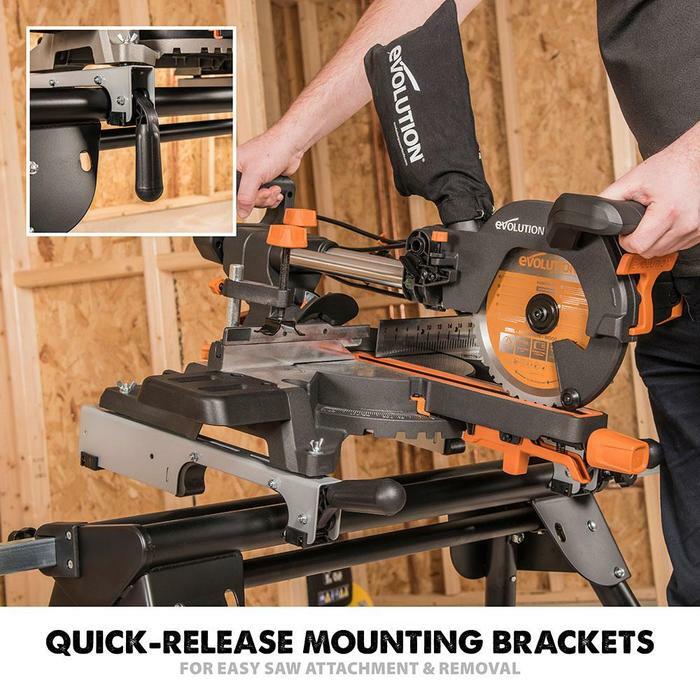

Optional Mitre Saw Stand With Universal Fittings
Technical Details
| Max. Length Material Support: | 3m |
| Max. Load: | 150kg |
| Max. Saw Mounting Hole Spacing: | 680mm x 330mm |
| Collapsed Product Dimensions: | 1000mm x 280mm x 230mm |
| Assembled Product Dimensions: | 1100mm x 600mm x 750mm |
| Arms Fully Extended Product Dimensions: | 1970mm x 600mm x 750mm |
| Packaging Dimensions: | 945mm x 265mm x 300mm |
| Product Weight: | 15.5kg |
| Packaged Weight: | 17.65kg |
Evolution Warranty
Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty
with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
