Knuth KAM 250 Hydraulic Notching Machine ( Part No. 130610) Maximum power with minimal space requirement
Knuth KAM 250 Hydraulic Notching Machine
( Part No. 130610)
Maximum power with minimal space requirementEx Stock Availability, 4 weeks, Subject to No Prior Sales.
Highlights
KAM Series
The machines of the KAM series are compact fixed-angle notching machines with large cutting lengths. A powerful, hydraulic drive and the heavy, stable design enable the processing of sheet metal thicknesses of up to 6.5 mm. With automatic cutting gap adjustment, a large work table and adjustable stops, the work is quick and easy to do. The machines are used in sheet metal processing companies and metalworking shops.
- fixed angle version
- large cutting length
- hydraulic drive
- the automatic cutting gap adjustment
- automatic hold-down devices

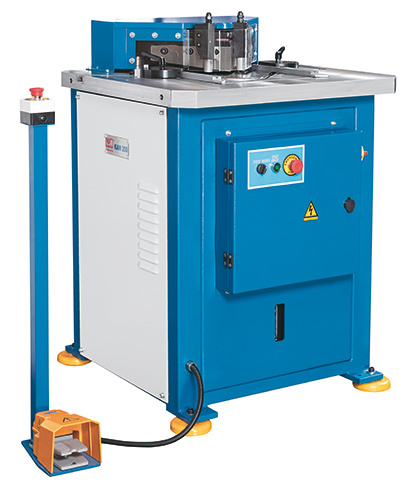

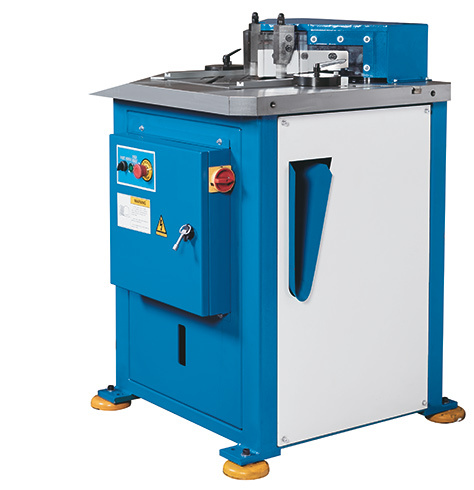

KAM 250 Hydraulic Notching Machine
- he fixed-angle notching machine KAM 250 impresses with its compact design and large cutting length
- The powerful, hydraulic drive and the heavy, stable design enable the processing of sheet metal thicknesses of up to 6.5 mm
- The automatic cutting gap adjustment simplifies processing and minimizes idle times
- Large work table has a 90° groove, parallel to the cutting line, in which two indexable angle stops can be positioned
- Easy-to-read scale bands allow the workpiece to be precisely aligned under the cutting head
- Automatic hold-down clamps fix the workpiece close to the cutting blade during the cutting process
- The notched material is ejected to the side
- Easy and comfortable operation via foot pedal
Technical Details
| WORKSPACE | |
|---|---|
| cutting angle | 90 degrees |
| Working table dimensions (length x width) | 810mm x 750mm |
| Max cutting length | 250mm |
| Max cutting thickness | 6.5mm |
| Beat rate (per minute) | 24 pieces |
| engine power | 4kW |
| operating pressure | 120 bars |
| MASS AND WEIGHT | |
|---|---|
| Dimensions (length x width x height) | 1.01m x 0.85m x 1.4m |
| Weight | 630kg |
| oil tank capacity | 35L |
Standard Equipment
Foot pedal with emergency stop switch
Angle stop
Operating instructions
