Knuth TSB 35 Bench Drill Press ( Part No. 162345 ) Versatile use in workshop applications
+3

Knuth TSB 35 Bench Drill Press ( Part No. 162345 ) Versatile use in workshop applications

162345
£5,163.00
In stock
1
Product Details

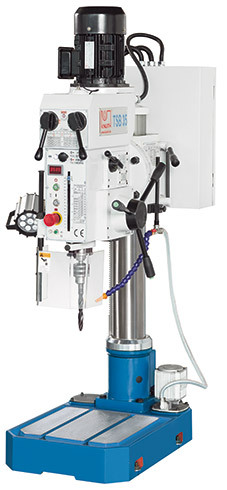

Knuth TSB 35 Bench Drill Press





Highlights

  • The series of TSB bench drilling machines impresses with its compact dimensions and high drilling performance for a wide range of applications. They are suitable for every workshop, from steel construction to repair shops. The machines have a main spindle gearbox for high torque and a particularly wide speed range. A swiveling drill head enables drilling at an angle. The TSB 35 also has an automatic quill feed for large drilling diameters.
    • Compact table design
    • pivoting drill head
    • Manual transmission for high torque
    • automatic feed with electromagnetic clutch
    • thread cutting device incl.
    Great performance at a competitive price enabling a good value machine tool investment.
    • Drilling capacity 35 mm
    • Projection 320 mm
    • Spindle nose foot 645 mm
    • Speed range (12) 125-3030 rpm
    • Spindle mount MT 4
    • Stable cast iron construction
    • Height-adjustable machine head
    • 6 or 12 speed levels
    • Rectangular base with T-slots and all-round coolant channel
    • Automatic quill feed
    • Digital speed display
    • coolant device
    • Swiveling head ± 45°
    • Thread cutting device as standard

Technical Details

WORKSPACE
drilling performance 35mm
Tapping performance, steel M22
unloading 320mm
column diameter 120mm
Distance spindle nose - foot 645mm
clamping surface, foot 370mm x 360mm
machine head lift 515mm
MAIN SPINDLE
spindle speed 125 rpm - 3030 rpm
spindle mount 4 MK
Spindle speed levels 12
quill stroke 155mm
FEED
quill feeds (3) 0.1; 0.2; 0.3mm/rev
DRIVE POWER
Main drive engine power 1.2kW
MASS AND WEIGHT
Dimensions (length x width x height) 0.81m x 0.5m x 1.67m
Weight 340kg

Standard Equipment

Underframe machine base 123952
Protective shield
Thread cutting device
LED work light
Coolant device Drill
chuck
Operating tools
Operating instructions
