Holzmann SB163VH 230V Drill Press Quality Column Drill Press. Optional BT63 Drill Press Table
+3

Holzmann SB163VH 230V Drill Press Quality Column Drill Press. Optional BT63 Drill Press Table

9120058377518
£783.00
In stock
1
Product Details

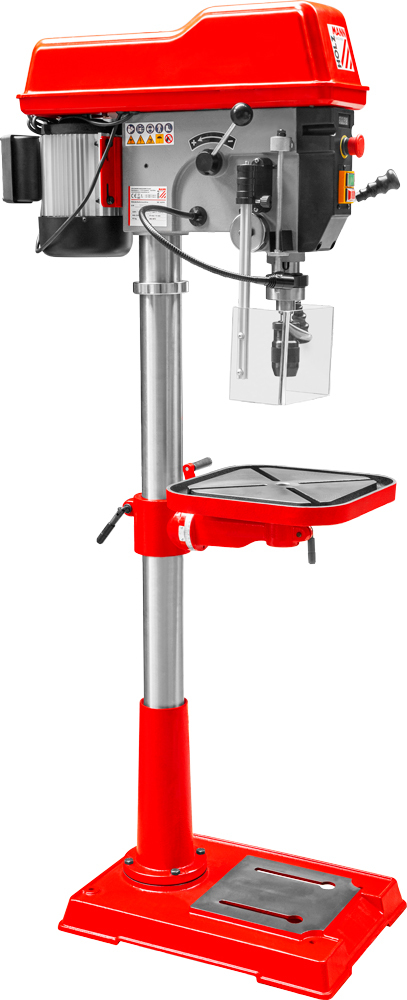

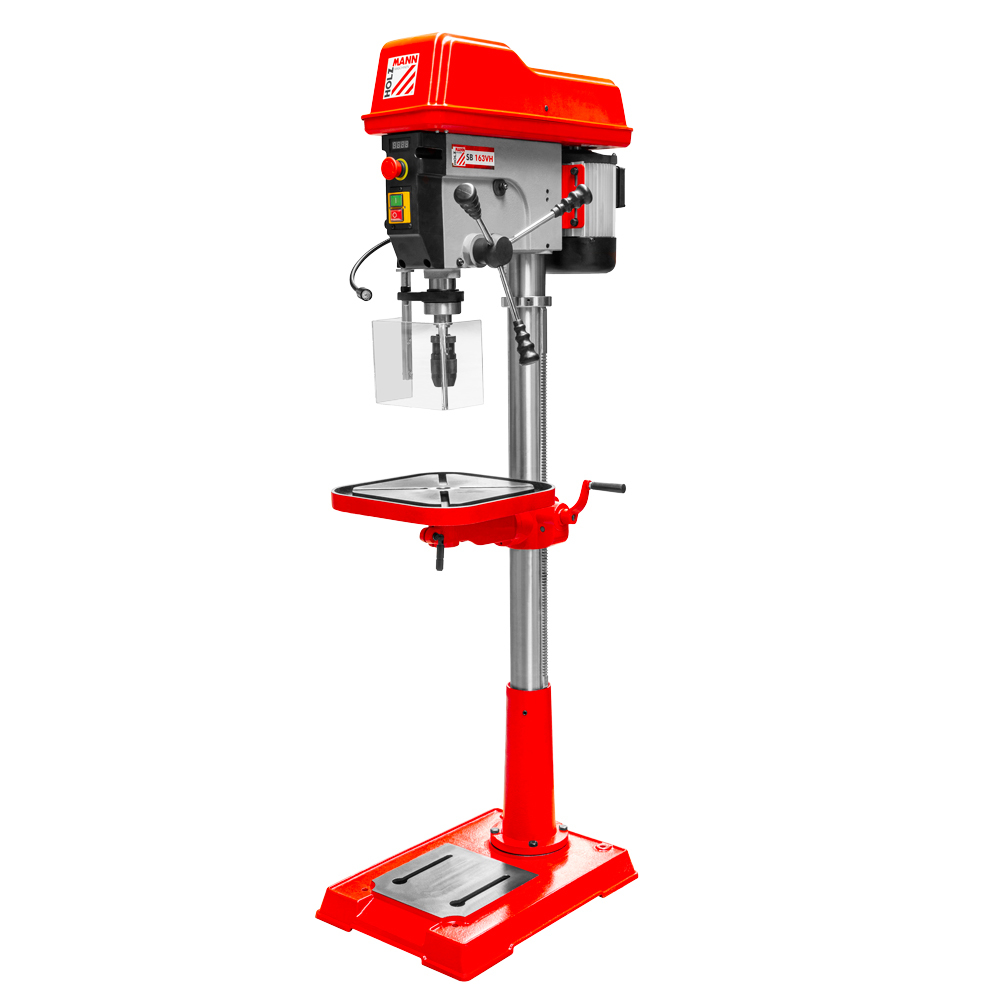

Holzmann SB163VH 230V Drill Press

Quality Column Drill Press. Optional BT63 Drill Press Table



Manual_SB163VH_DE_EN_18072019.pdf


Highlights

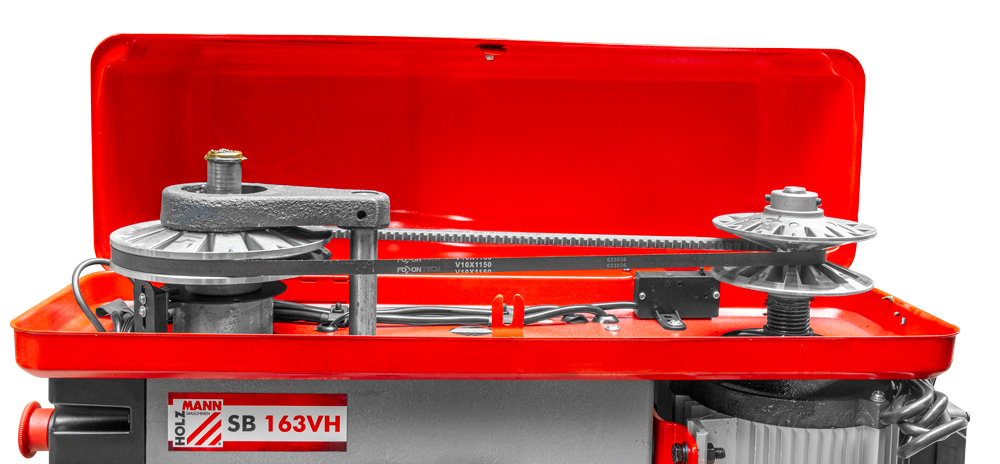

  • variable adjustable spindle speed with LCD Display
  • LED light
  • features solid, polished base with T-nuts
  • torsion-resistant, solid and polished steel column
  • the worktable is tiltable from-45° to +45°
  • spindle protection cover
  • adjustable drill depth stop with scale for accurate drill depth control

Included in delivery:

keyless chuck 1-16mm B16



Technical Details

motor data
motor power s1 in W 1100
voltage 230V / 50Hz
measurements
outreach in mm 430
table size in mm 356x356
total dimensions in mm 740x470x1710
technical specification
max. drilling performance steel in mm 16
drilling spindle collet MK3/MT3
drilling spindle speed in min-1 460-2100
column diameter in mm 80
spindle stroke in mm 150
base in mm 580x420
volume level and vibration
sound power level in dB(A) 88,5
sound pressure level in dB(A) 73,1
weight
gross weight in kg 98.50
net weight in kg 88.50
packaging
packaging width in mm 280
packaging length in mm 700
packaging height in mm 1.530






Optional

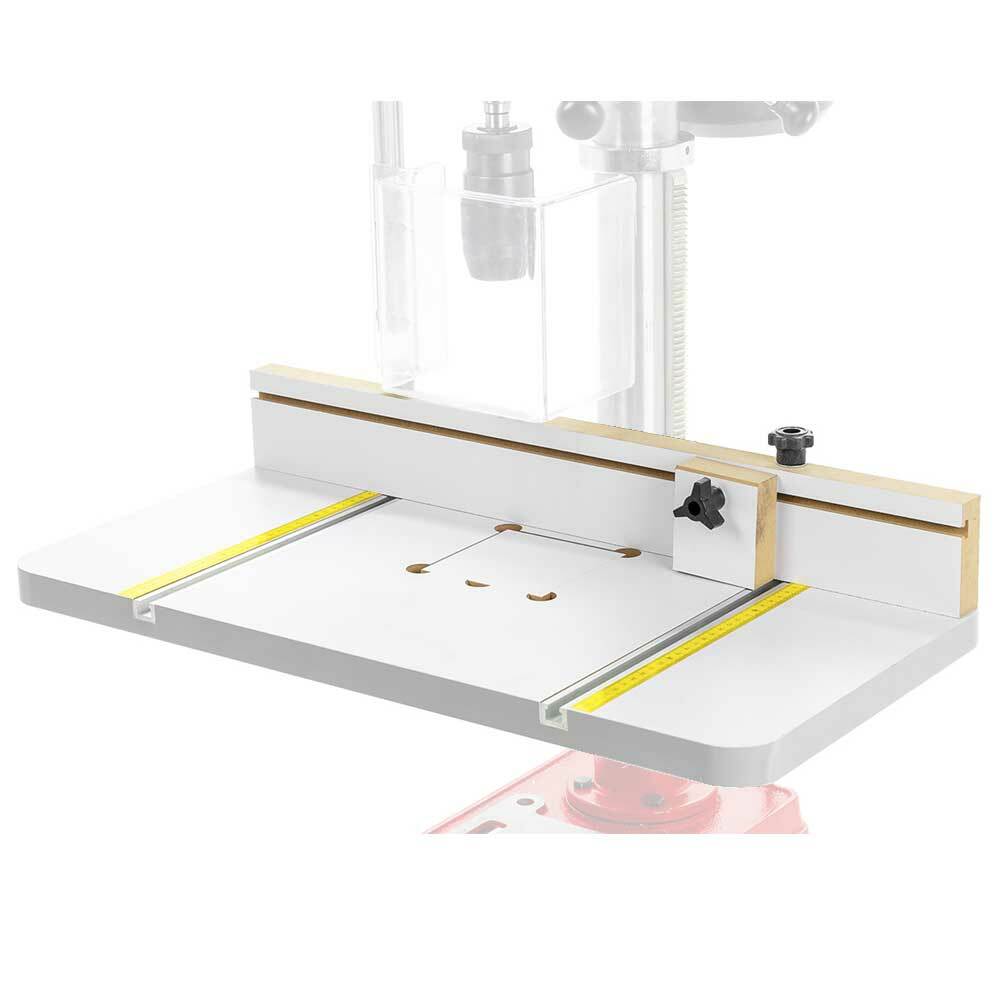

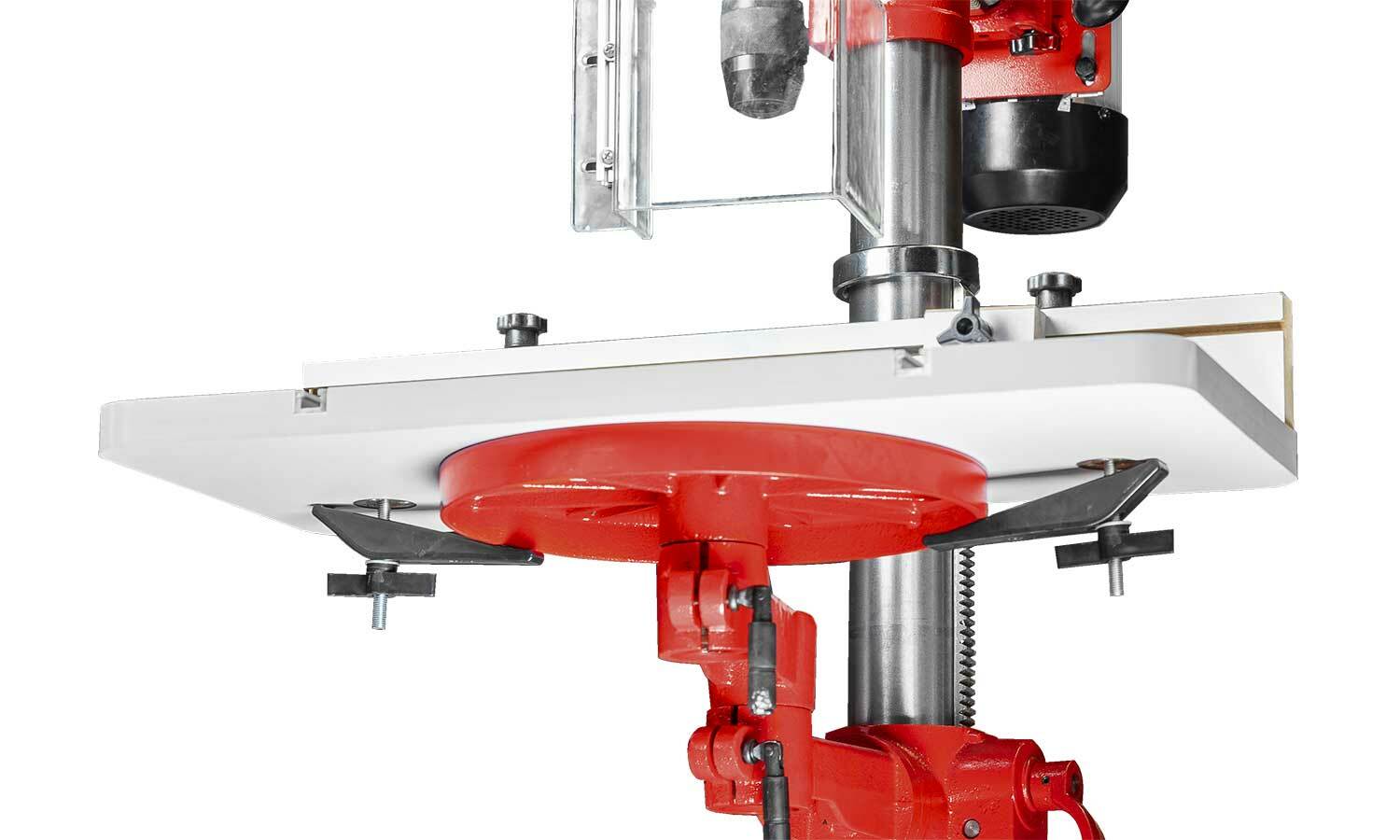

BT63 D rill Press Table


Highlights

  • drill press table suitable for Holzmann drill press
  • thickness of 25.4mm
  • max. load of 30kg

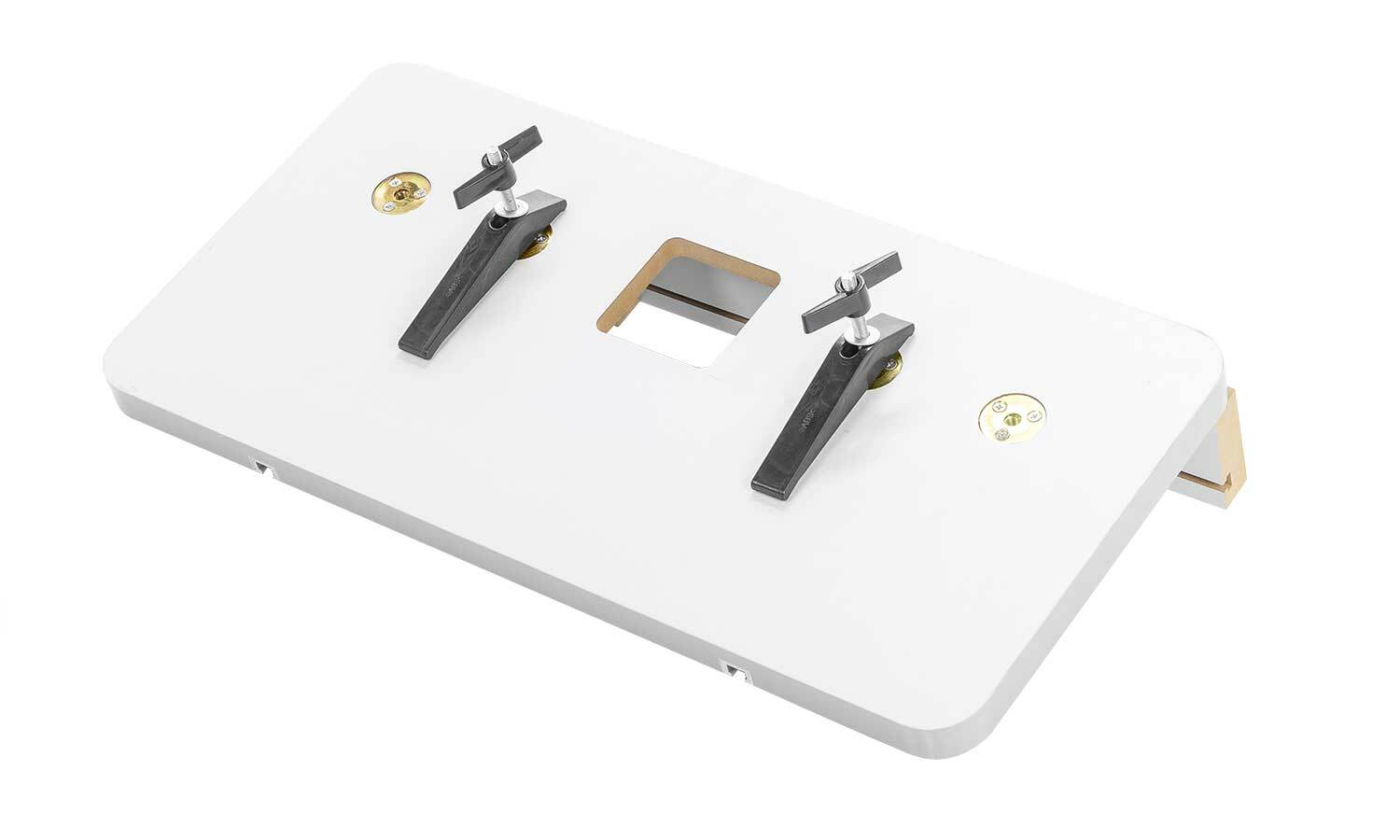

  • fixation by means of supplied fixing clamps (range from 245-425 mm)
  • fence dimension (L x H) 605 x 75 mm
  • distance T-slot (centre to centre) 330 mm


Technical Details


measurements

table size in mm 605 x 300
weight
gross weight in kg 5.50
net weight in kg 4.80
packaging
packaging width in mm 320
packaging length in mm 630
packaging height in mm 90
general data
EAN code
9120058378355







The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
