Holzmann ZS50APS 400V Gear Driven Drill Machine
+3

Holzmann ZS50APS 400V Gear Driven Drill Machine

9120039901015
£2,830.00
In stock
1
Product Details

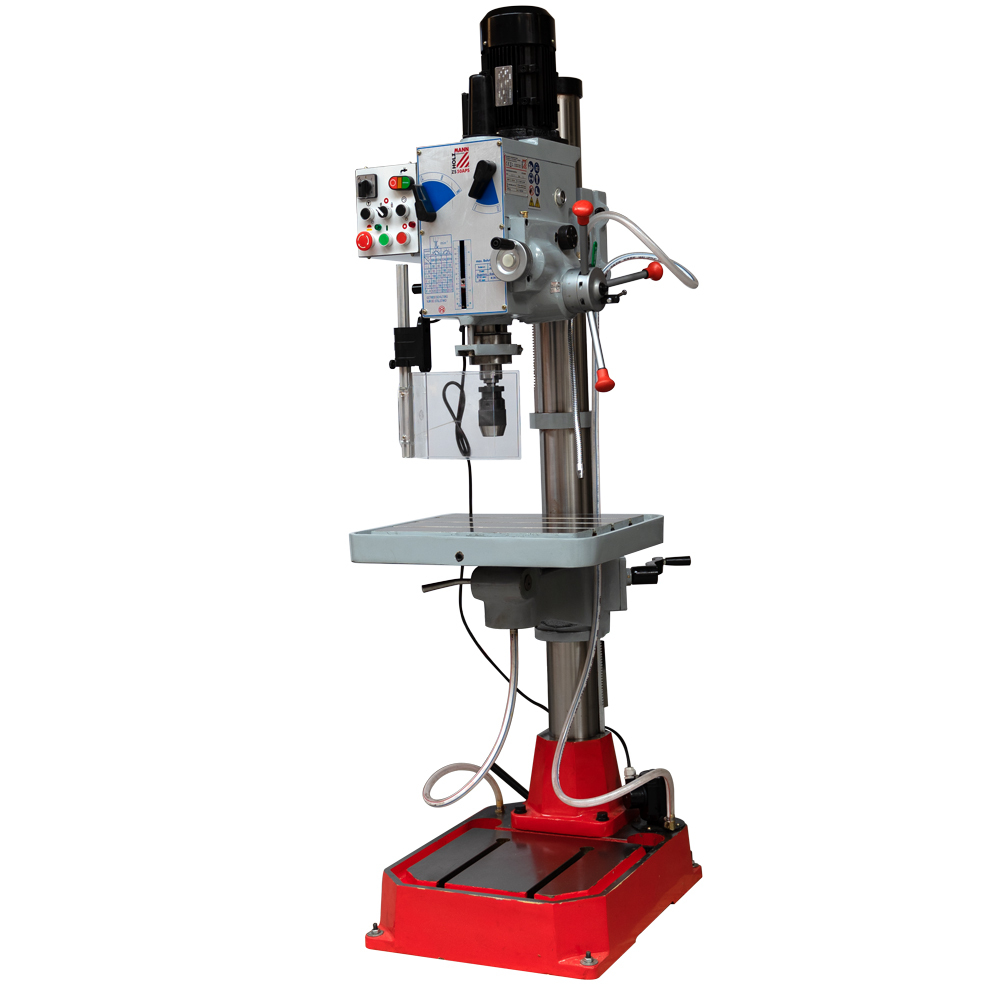

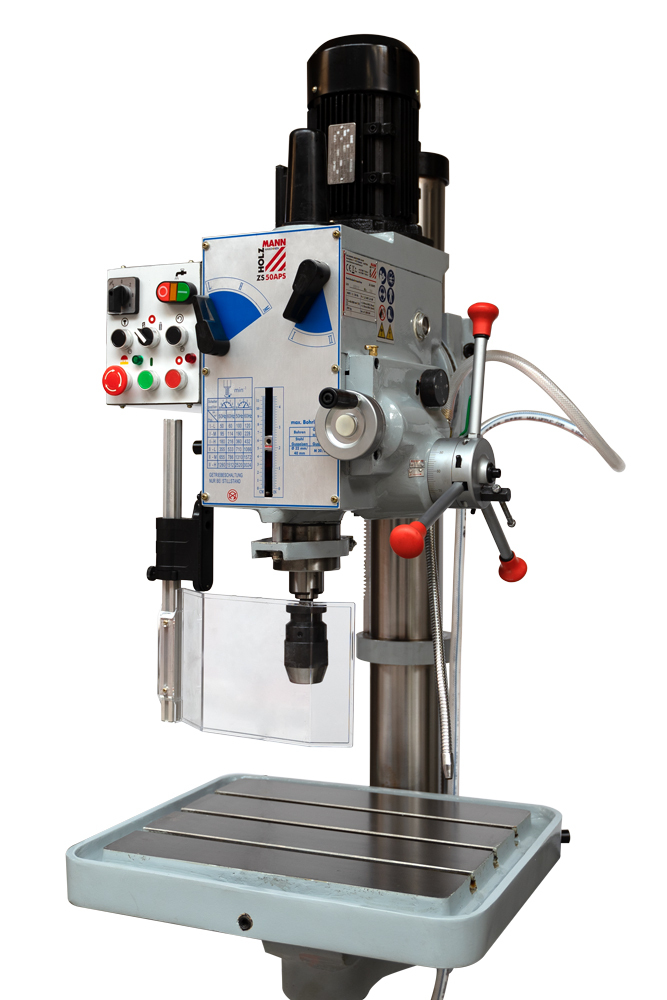

Holzmann ZS50APS 400V Gear Driven Drill Machine





Highlights


  • with automatic vertical power feed 2-step motor with cooling pump
  • 2-step motor delivers a wide spindle speed range, very low base speed ideal for tapping
  • automatic vertical power feed with three different speeds 0 - 0,12 - 0,18 - 0,25mm/rpm
  • largely dimensioned, hardened and precision-ground cast iron table can be adjusted in height and rotated 360° around center and column
  • the table is equipped with t-nut guides (14mm) to fix devices as a vice
  • cooling system included in delivery
  • extra wide gear wheels
  • height adjustable and tiltable gear head delivers wide application range
  • automatic tapping function and CW/CCW run included in delivery
  • permanent oil bath lubricated gear with ground and hardened gear wheels
  • massive base plate featuring T-slots enables the mounting of oversize height workpieces
  • powerful 2-step motor assures max. drilling performance even at heavy duty
  • torsion-resistant, solid column with smoothed surface
  • height adjustable spindle protection with microswitch for your safety

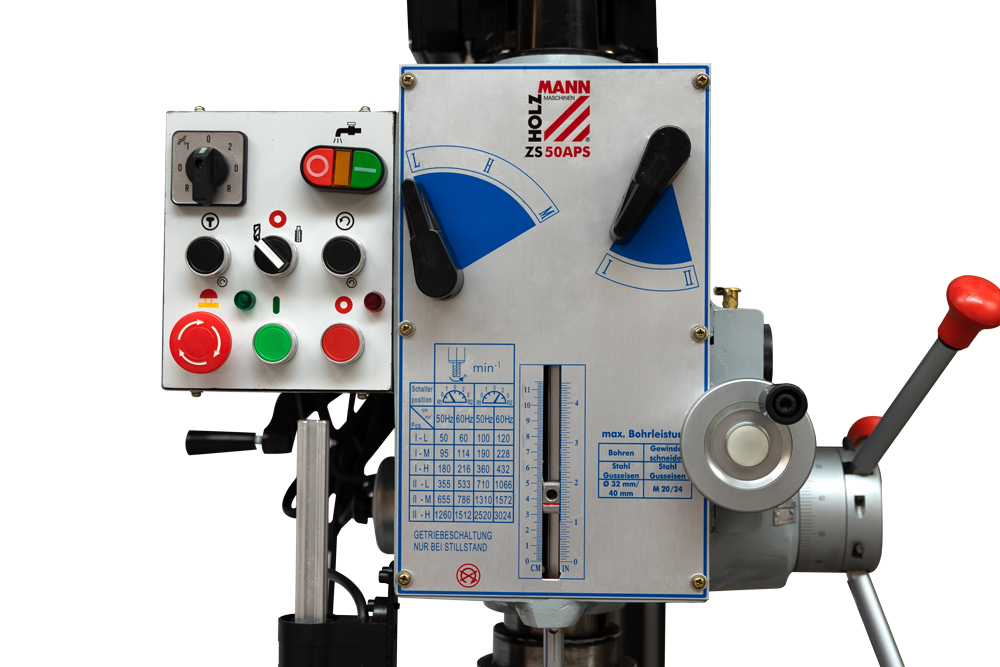

  • fine infeed via precision wheel positioned at machine front with depth scale indication

Included in delivery:

Drill chuck 16mm, reducer MT4/3, MT3/2, wedge, drawbar M12



Technical Details


motor data

motor power s1 in W 1300 / 1800
cable length 2,5 m
voltage 400V
measurements
max. height in mm 2150
outreach in mm 260
table size in mm 550 x 480
technical specification
column diameter in mm 115
quill travel 110
max. drilling performance steel in mm ø 32 (M20)
drilling spindle speed in min-1 50-2520 (12)
drilling spindle collet MK4 / MT4
distance spindle-base in mm 1200
max. distance spindle-table in mm 750
max. drilling performance cast in mm ø 40 (M24)
volume level and vibration
sound power level in dB(A) 95
sound pressure level in dB(A) 85
weight
gross weight in kg 425
net weight in kg 390
packaging
packaging length in mm 640
packaging width in mm 720
packaging height in mm 1.910






The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
