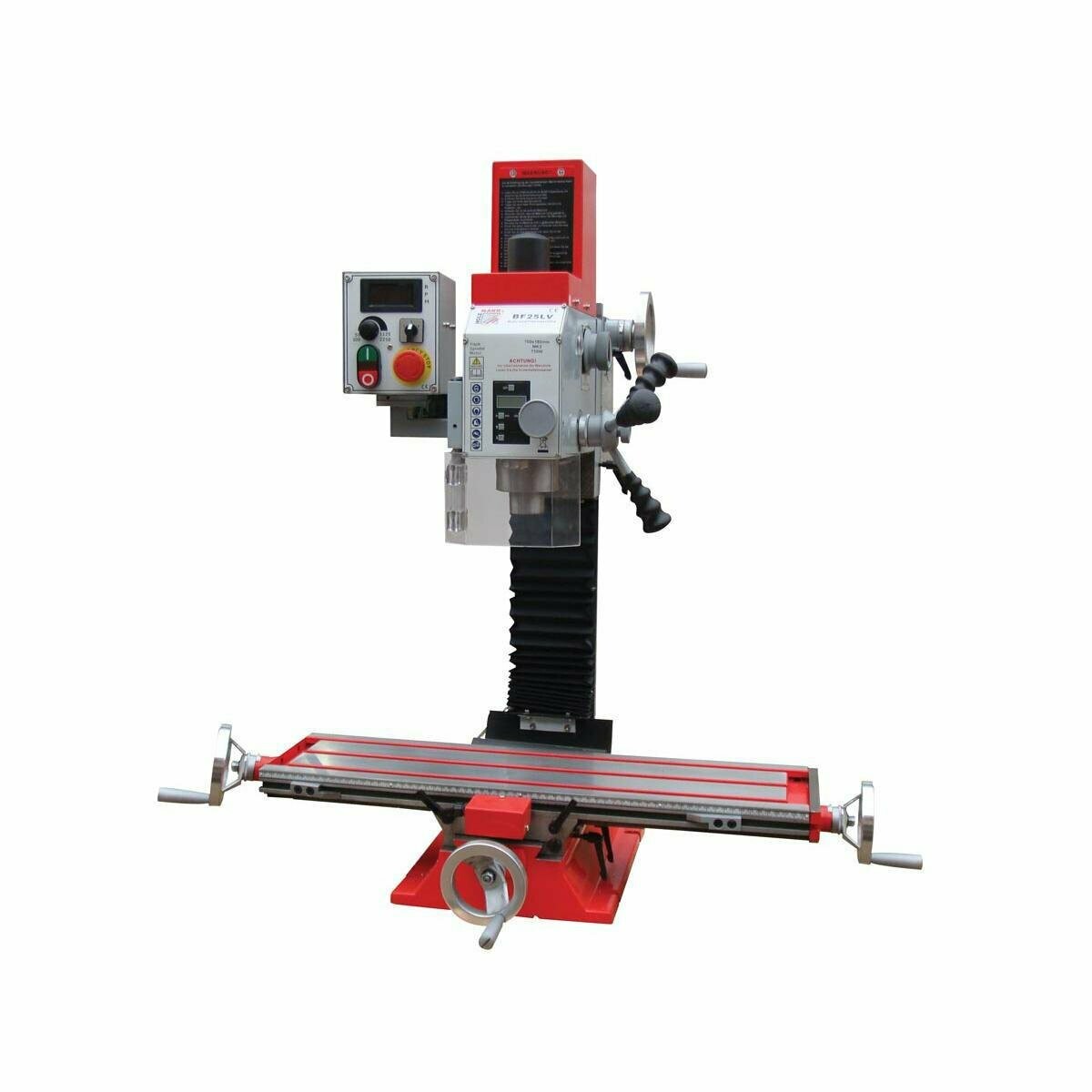

Holzmann BF25VLN 230V milling machine MT3
+3

Holzmann BF25VLN 230V milling machine MT3

9120039909295
£1,999.99
In stock
1
Product Details

Holzmann BF25VLN 230V Milling Machine MT3



Highlights


  • XL-cross table (700x180mm)
  • variable speed control with DRO
  • DRO for drill depth indication as standard
  • CW and CCW run
  • dovetail guided cross table and gear, adjustable via gibs
  • rotateable gear head enlarges use of application
  • three spoke hand lever for milling operation
  • three lever wheel for drilling operation
  • high quality cross table with scale and adjustable end stops
  • ideal machine for schools, precision mechanic and DIY users

Included in delivery:


Drill chuck MK3/B16, speed DRO, drill depth DRO, draw bar M12, toolings



Technical Details


motor data
motor power s1 in W 600
cable length 1,7 m
voltage 230V
measurements
outreach in mm 160
table size in mm 700 x 180
payload in kg 55
total dimensions in mm 990 x 590 x 908
technical specification
travel Z-axis in mm 265
head swivel +/- 90°
T-slots in mm 12
max. end mill diameter in mm 16
max. face mill diameter in mm 63
max. drilling performance steel in mm ø 13
milling spindle speed in min-1 50-2250
drilling spindle collet MK3 / MT3 (M12)
travel Y-axis in mm 165
travel X-axis in mm 480
max. distance spindle-table in mm 315
quill travel 50
weight
gross weight in kg 141
net weight in kg 113

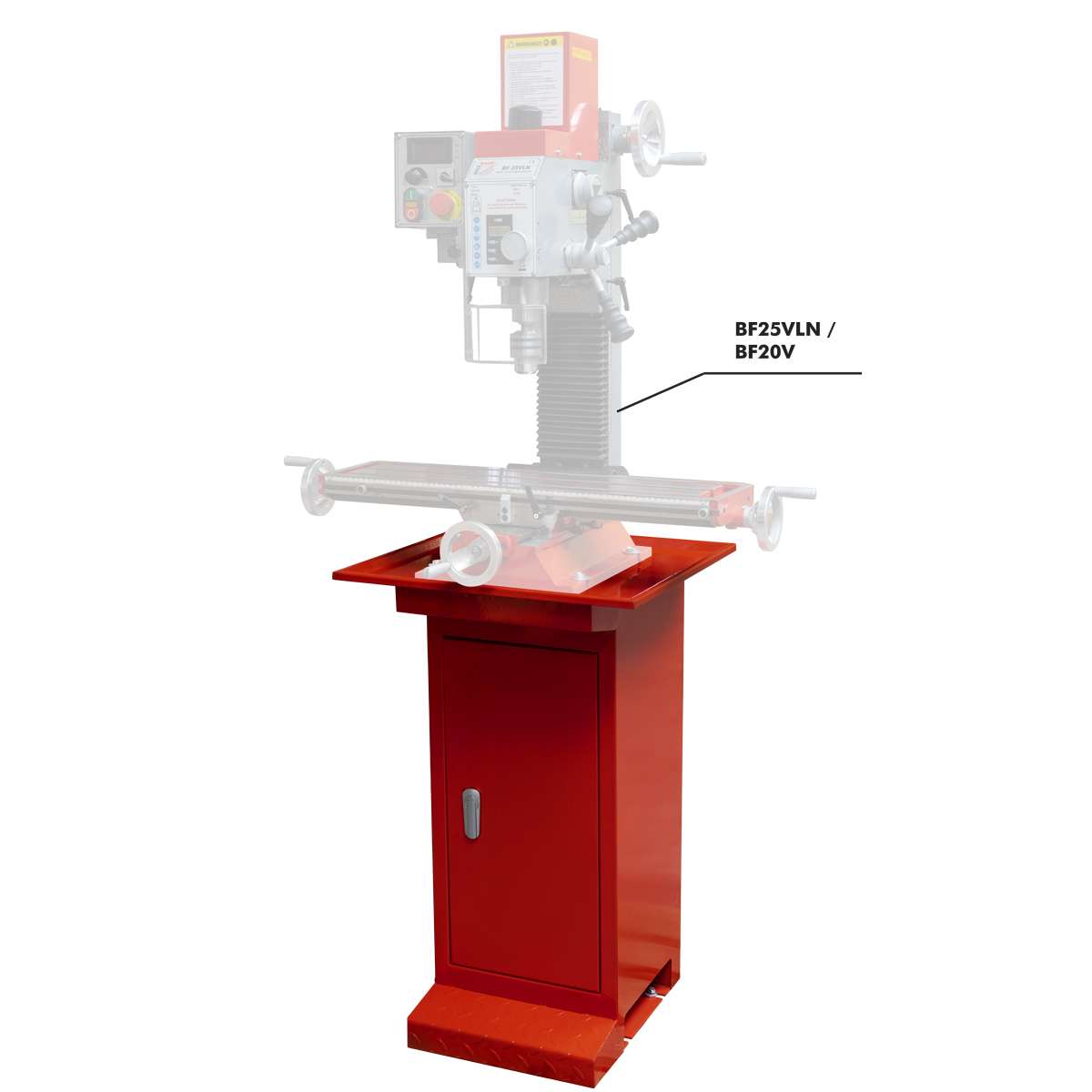

Optional Stand


Technical Details

weight
gross weight in kg 26.50
net weight in kg 24
packaging
packaging length in mm 520
packaging width in mm 380
packaging height in mm 840
general data

EAN code
9120039906232

The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
