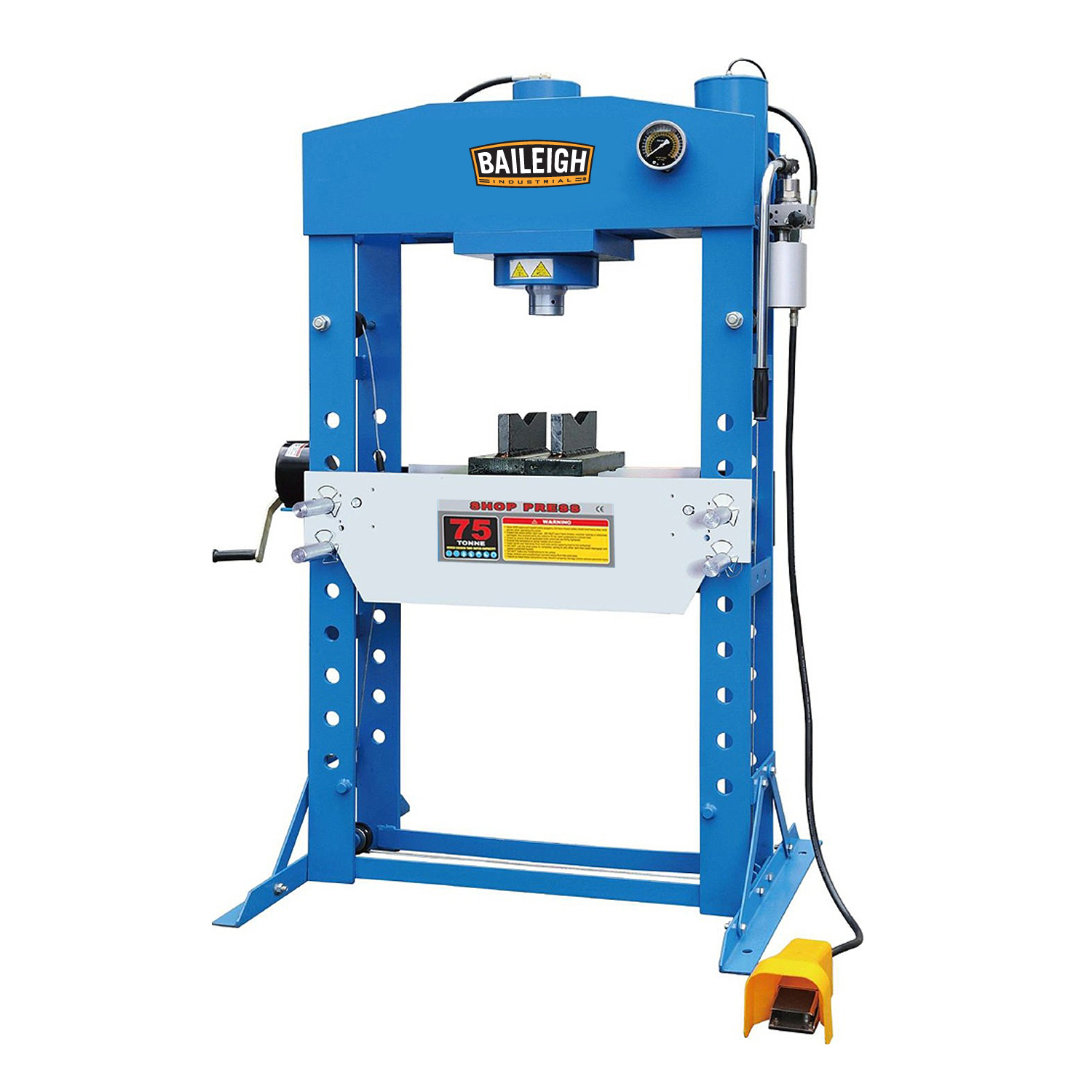

Baileigh Pneumatic Workshop Press HSP-75A
Baileigh Pneumatic Workshop Press HSP-75A
Highlights
Looking for a little more power from your shop press?
The Baileigh Industrial HSP-75A pneumatic shop press is the perfect answer.
This 75 ton press features a fully welded main frame to reduce flex, allowing the operator to use all 75 tons that are available from the HSP-75A.
The large 230mm diameter cylinder of this press features a 250mm stroke.

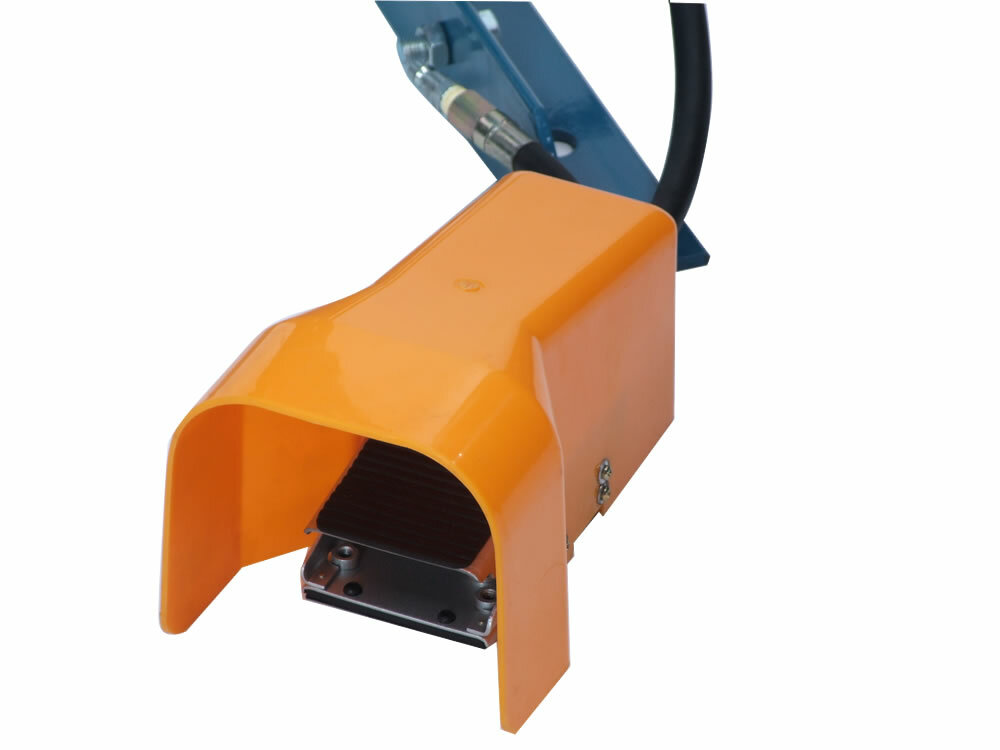

Yet, the operation of the HSP-75A press is simple and controllable because of its integrated foot pedal.
For even more control, the operator may chose to use the manual hand pump that is located on the side of the pneumatic press.

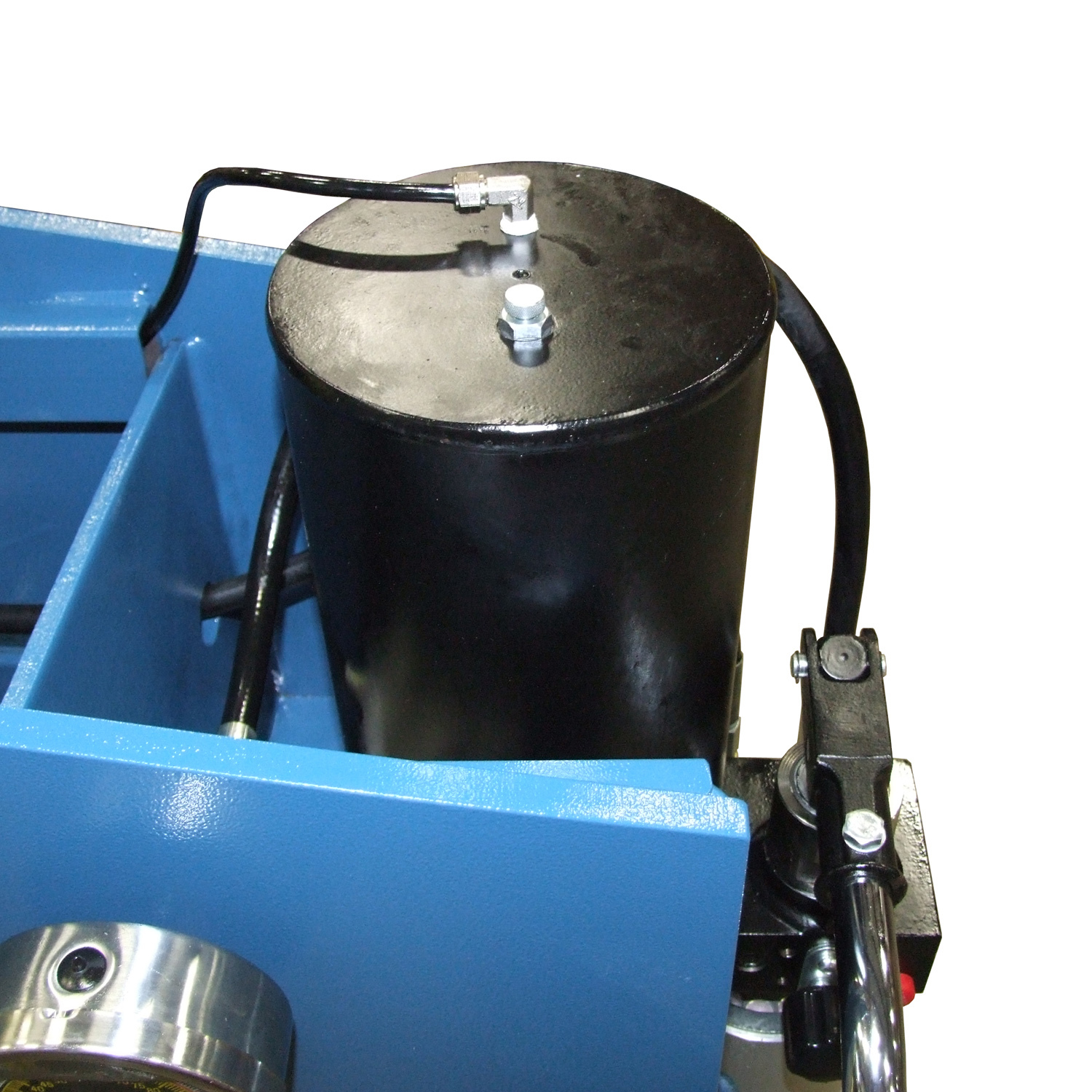

Industrial grade hydraulics are standard on the HSP-75A to ensure years of useful operation.
Just hook up to a compressor that can put out between 90 and 115 psi.

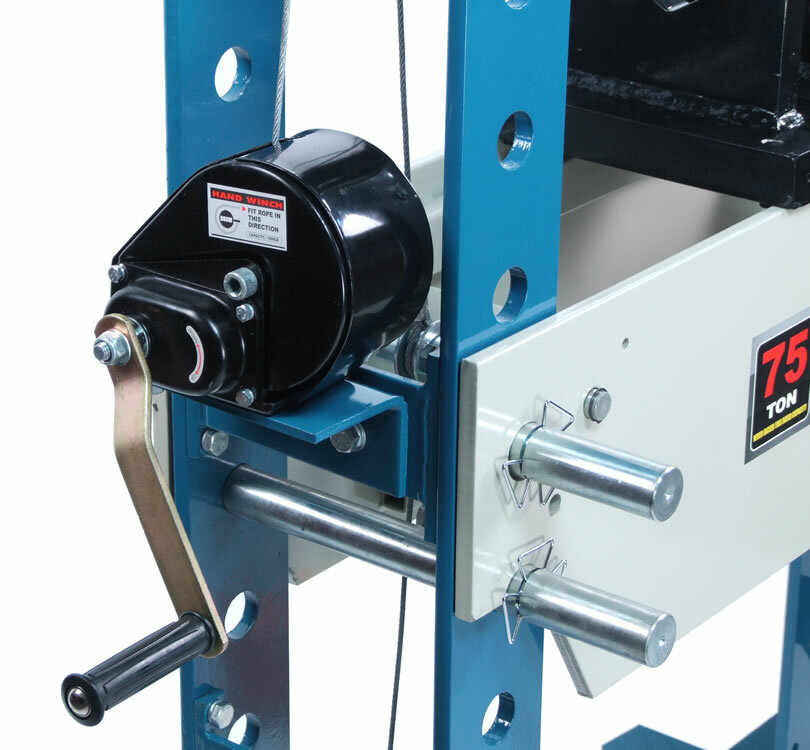

The Baileigh Industrial HSP-75A shop press also has a unique feature that allows the operator
to lift and lower the working table with the help of a winch and pulley system.
This will save time as well as the back of the operator when table relocation is needed! The
HSP-75A pneumatic press also comes with V-blocks.
Contact Traxx Industries today for more information.

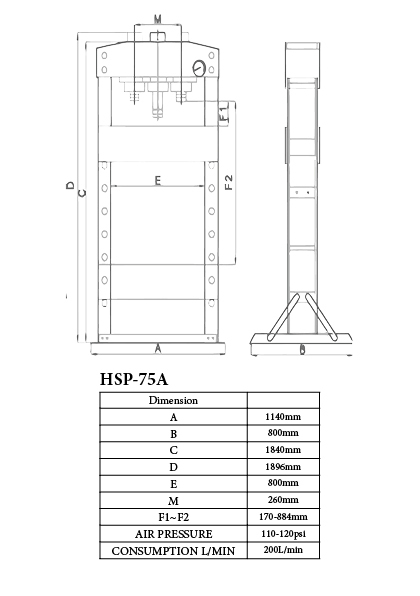

Technical Details
| Item Number | HSP-75A |
|---|---|
| Piston Head Diameter | 76.2 mm |
| Movable Cylinder | Yes |
| Maximum Capacity | 67 ton |
| Cylinder Stroke | 249 mm |
| Cylinder Diameter | 228 mm |
| Power | Pneumatic / Manual |
| Shipping Weight | 590 kgs. |
| Shipping Dimensions (Inches) | 2108 x 1118 x 610 mm |
* specifications subject to change without notice.
