Baileigh DP-1250 VS Variable Speed Drill Press-( 2003348)
Baileigh DP-1250 VS Variable Speed Drill Press-( 2003348)
AVAILABLE ON BACK ORDER/ NEW BATCH DUE END AUGUST 2024

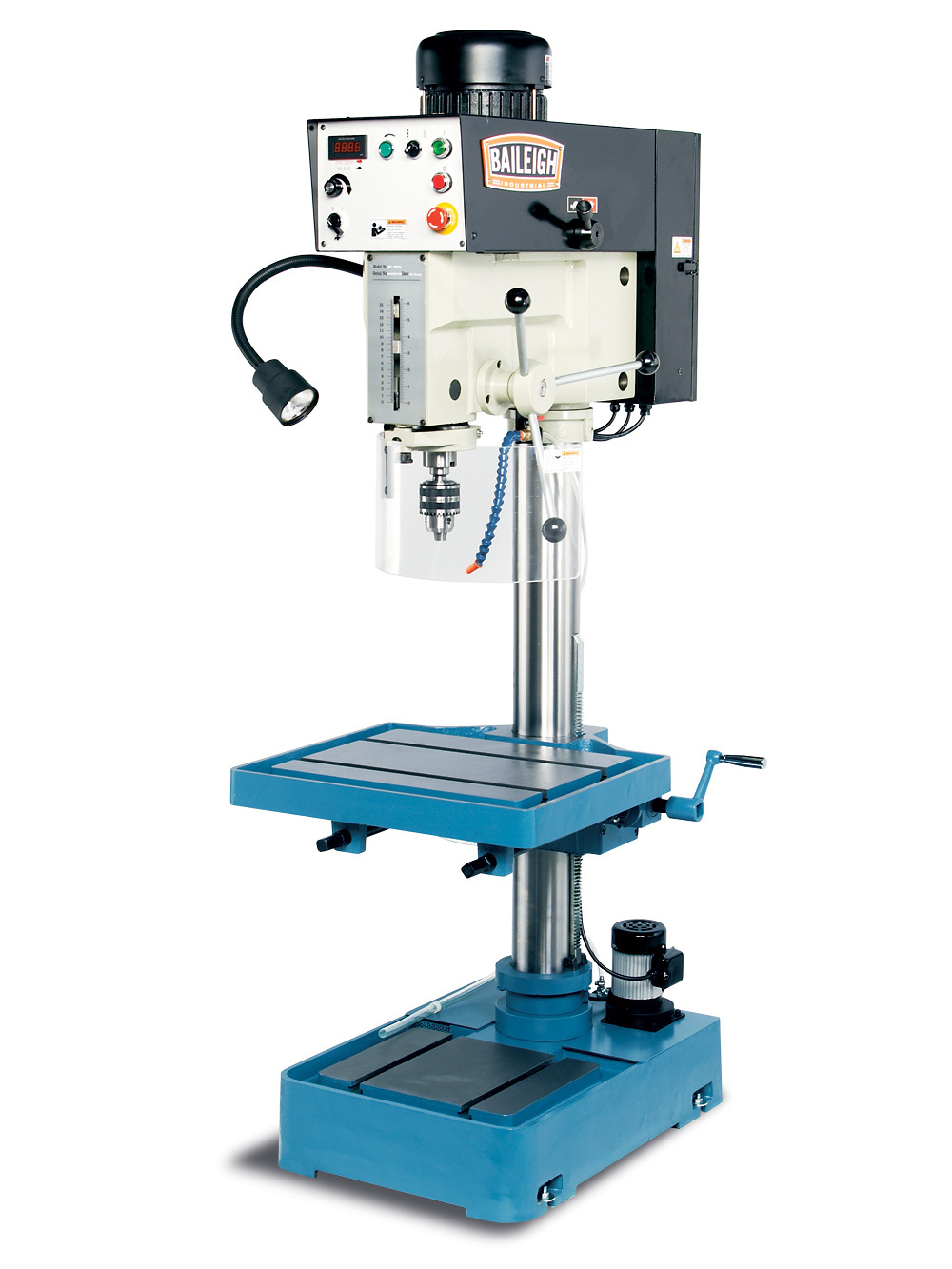

Baileigh's DP-1250VS heavy-duty drill press has a wide column for extra support to reduce flexing during heavy drilling sessions at maximum capacity, at 1.25" diameter mild steel.
This machine has a powerful inverter-driven head that is controlled through a speed potentiometer dial and digital read out for displaying actual quill RPM.
This variable speed drill press uses a heavy 4 morse taper to transfer the power from the spindle to the quill.
To further the rigidity, the base and table are made of a heavy casting with very large T-slots to secure vice or material.
The base includes a powerful coolant system that is sprayed out at the quill behind a quality splash and safety guard.
This heavy-duty, variable speed, drill press is in stock for quick shipments.
It offers any machinist or fabricator a great value for the investment.
Technical Details
| Item Number | DP-1250VS |
|---|---|
| Country of Manufacture | Taiwan |
| Table Dimensions | 559 mm x 470 mm |
| Motor | 1.5 kW |
| Quill Diameter | 75 mm |
| Spindle Nose to Table | 850 mm |
| Spindle Nose to Base | 1180 mm |
| Spindle Speed High | 245 – 2000 rpm |
| Spindle Speed Low | 65 - 540 rpm |
| Spindle Taper | MT 4 |
| Table Slot | 16 mm |
| Tapping Capacity | 19 mm |
| Motor Coolant | 0.125 kw |
| Power | 220V / 1-phase |
| Shipping Weight | 340 kgs. |
| Swing | 5158 |
| Drill Capacity | 32 mm |
| Spindle Travel | 5157 |
| Column Diameter | 5152 |
| Base Dimensions L x W | 685 mm x 485 mm |
| Shipping Dimensions (Inches) | 620 x 940 x 1870 mm |
* specifications subject to change without notice.
