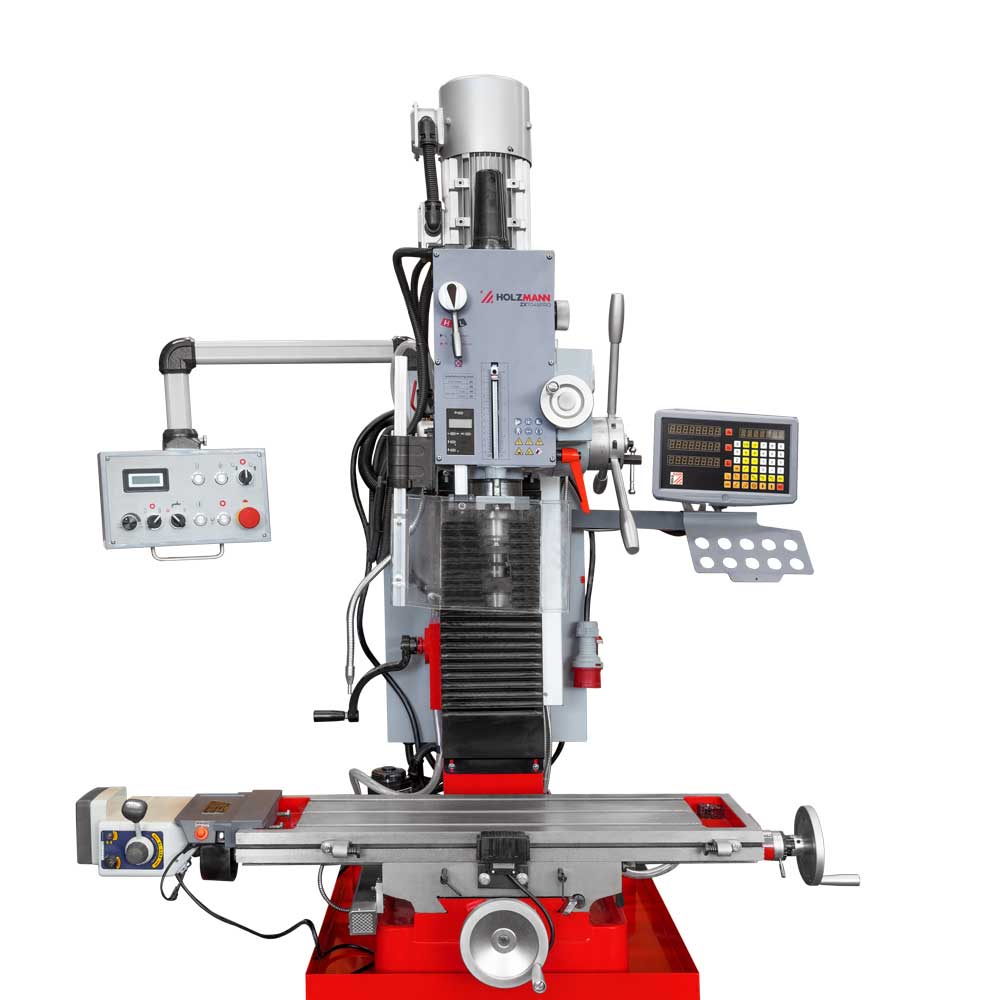

Holzmann ZX7045PRO 400V Milling Machine
+3

Holzmann ZX7045PRO 400V Milling Machine

9120039901046
£3,999.00
In stock
1
Product Details

Holzmann ZX7045PRO 400V Milling Machine




Highlights

  • lifting motor milling head: 90 W,
  • coolant pump: 40 W
  • feed motor X-axis: 90 W, X-axis cross-table travel: 560 mm (manual) 480 mm (auto)
  • cross-table travel y-axis: 190 mm
  • table stroke z-axis: 420 mm (manual), 350 mm (auto)
  • cross table dimensions: 820 x 240 mm

Included in delivery: M16 tightening spindle, B18 drill chuck (Ø1-16 mm), MK4-3, MK3-2 reducing sleeves;

Technical Details


motor data
motor power s1 in W 1500
voltage 400 V / 50 Hz
measurements
total dimensions in mm 1360 x 960 x 2110
technical specification
max. drilling performance steel in mm Ø32
max. drilling performance cast in mm Ø45
max. thread size M20
milling adapter MK4/MT4
milling spindle speed in min-1 (I): 75-438 (II): 438-2500
quill travel 110
max. distance spindle-table in mm 445
max. end mill diameter in mm Ø28
max. face mill diameter in mm Ø80
T-slots in mm 14
milling spindle swivel +/-90°
travel X-axis in mm 560 (man) / 480 (Auto)
travel Y-axis in mm 190
travel Z-axis in mm 420 (man) / 350 (Auto)
volume level and vibration
sound pressure level in dB(A) 78,2
weight
gross weight in kg 435
net weight in kg 400
packaging
packaging width in mm 920
packaging length in mm 1.265
packaging height in mm 1.240
general data
EAN code 9120132140083









The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
