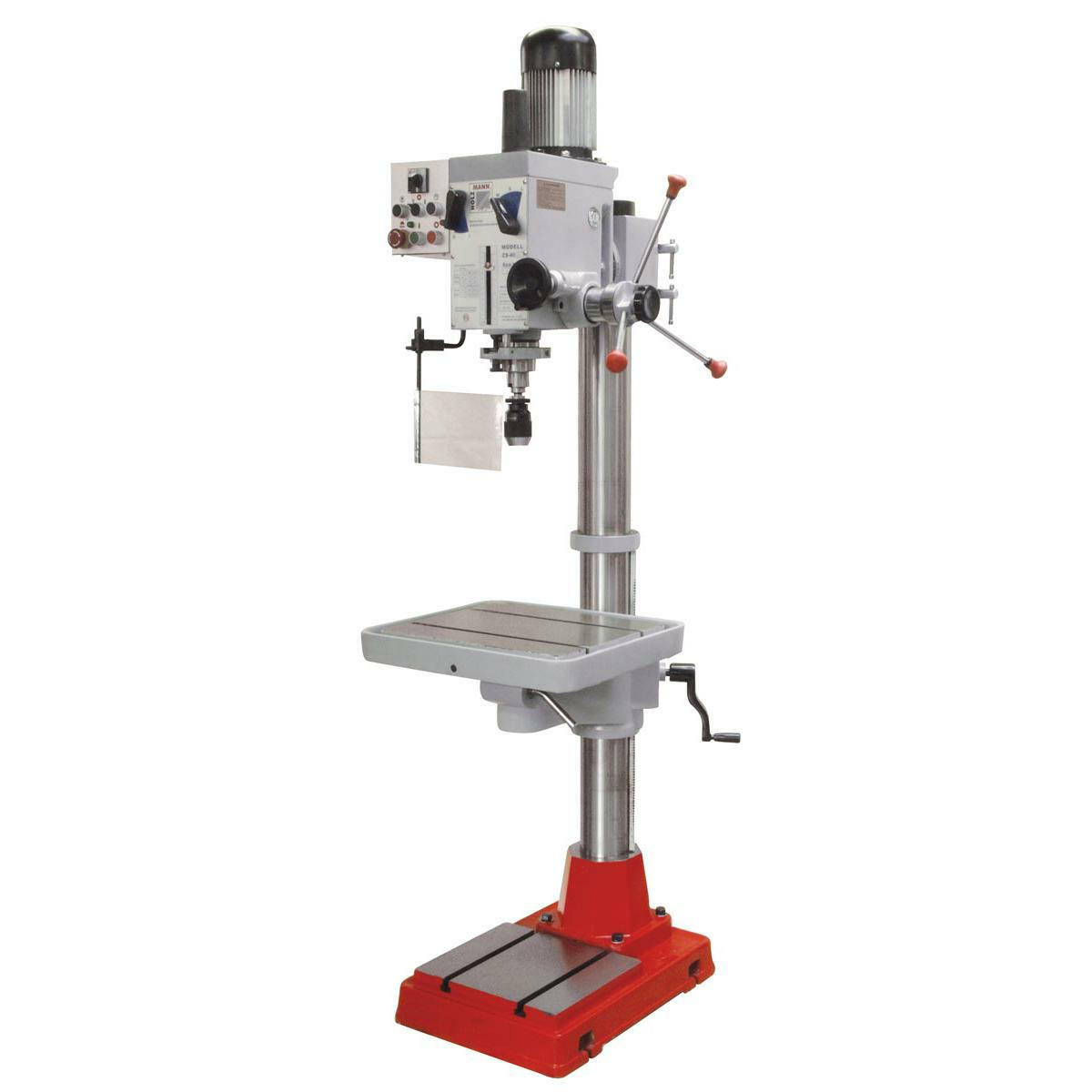

Holzmann ZS40HS 400V Gear Driven Drill Machine With XL Table
+3

Holzmann ZS40HS 400V Gear Driven Drill Machine With XL Table

9120039900995
£2,449.49
In stock
1
Product Details

Holzmann ZS40HS 400V Gear Driven Drill Machine With XL Table

Delivery lead time 4/6 weeks





Highlights

  • largely dimensioned, height adjustable hardened and precision-ground cast iron table with 360° rotation ability around center and column
  • the table is equipped with t-nut guides (14mm) to fix devices as a vice
  • height adjustable and tiltable gear head delivers wide application range
  • automatic tapping function and CW/CCW run as standard
  • spindle sleeve downfeed via three spoke hand wheel
  • permanent oil bath lubricated gear with ground and hardened gear wheels
  • massive base plate featuring T-slots enables the mounting of oversize height workpieces
  • powerful motor assures max. drilling performance at continuous duty
  • torsion resistant column with smoothed surface
  • height adjustable spindle protection with microswitch for your safety
  • fine infeed via precision wheel positioned at machine front with depth scale indication

Included in delivery :

Drill chuck 16mm, reducer MT4/3, MT3/2, wedge, drawbar M12



Technical Details



motor data
motor power s1 in W 1100
motor power s6 in W 1500
voltage 400V
cable length 2,5 m
measurements
max. height in mm 2120
outreach in mm 270
table size in mm 550 x 480
technical specification
distance spindle-base in mm 1260
column diameter in mm 115
quill travel 120
max. drilling performance steel in mm ø 32 (M16)
drilling spindle speed in min-1 95-1600 (6)
drilling spindle collet MK4 / MT4
max. distance spindle-table in mm 790
max. drilling performance cast in mm ø 40 (M20)
weight
gross weight in kg 365
net weight in kg 320
packaging
packaging length in mm 640
packaging width in mm 720
packaging height in mm 1.910



The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
