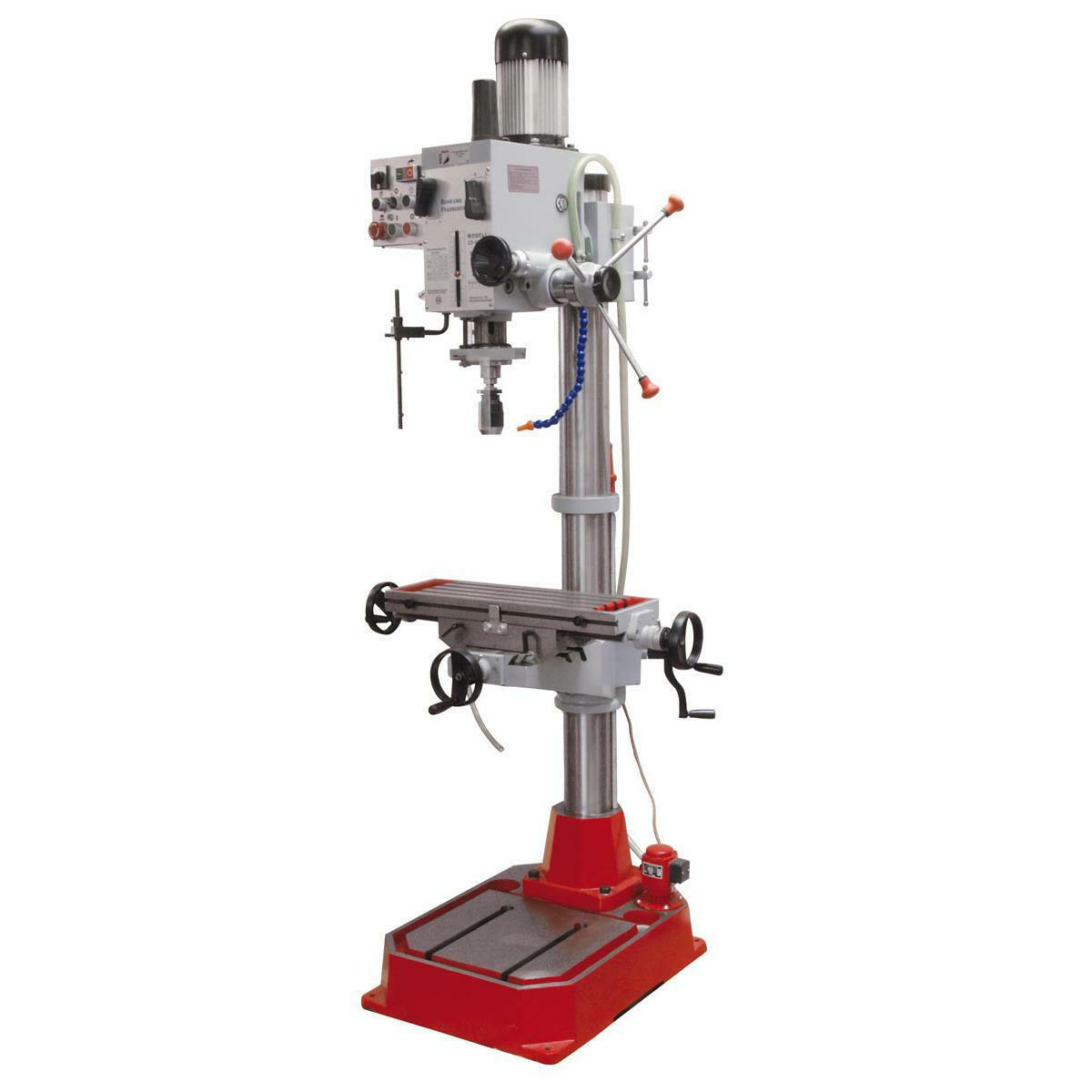

Holzmann ZX40PC 400V Gear Driven Drill Machine
+3

Holzmann ZX40PC 400V Gear Driven Drill Machine

9120039901008
£2,612.00
In stock
1
Product Details

Holzmann ZX40PC 400V Gear Driven Drill Machine



Highlights

  • with cross table with cooling pump
  • massive base plate featuring T-slots enables the mounting of oversize height workpieces
  • the cross table is equipped with t-nut guides (14mm) to fix devices as a vice
  • spindle sleeve feed via three spoke hand lever
  • height adjustable spindle protection with microswitch for your safety
  • cooling system included in delivery
  • height adjustable and tiltable gear head delivers wide application range
  • automatic tapping function and CW/CCW run included in delivery
  • fine infeed via precision wheel positioned at machine front, with depth scale indication
  • permanent oil bath lubricated gear with ground and hardened gear wheels
  • powerful motor assures max. performance even at heavy duty

Included in delivery:

Drill chuck 16mm, reducing sleeve MT4/3, MT3/2, wedge, drawbar M12


Technical Details

motor data
motor power s1 in W 1100
motor power s6 in W 1500
voltage 400V
measurements
outreach in mm 272.5
max. height in mm 2160
table size in mm 190x585
technical specification
distance spindle-base in mm 1270
column diameter in mm 115
quill travel 120
max. drilling performance in mm 40
milling spindle speed in min-1 95-1600
drilling spindle collet MK4 / MT4
max. distance spindle-table in mm 754
weight
gross weight in kg 410
net weight in kg 375
packaging
packaging length in mm 720
packaging width in mm 740
packaging height in mm 1.910

The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
