| Motor (240V 50Hz): | 1200W |
| Motor (110V 50Hz): | 1200W |
| Speed No Load: | 480 min -1 |
| Number of Speeds | 1 |
| Insulation Class | 1 |
| Cable Length: | 2.5m |

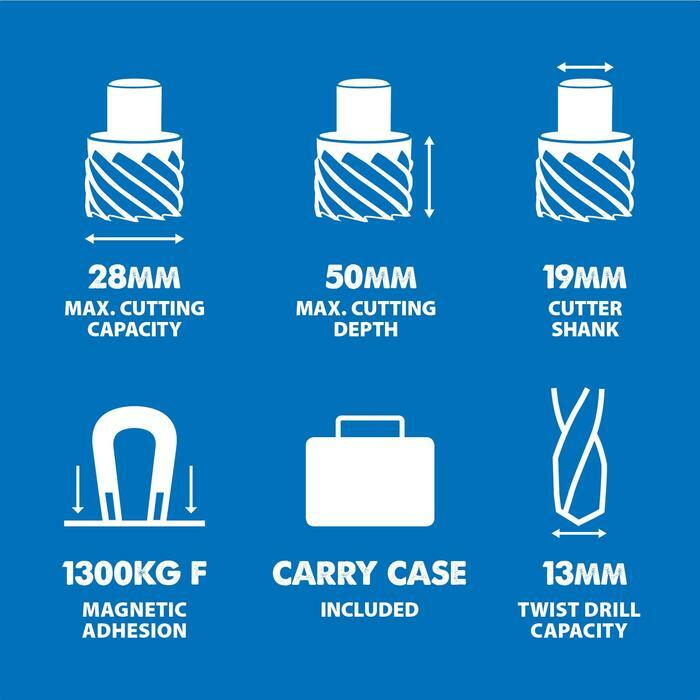

| Magnetic Adhesion | 1300kg f |
| Maximum Annular Cutting Capacity | 28mm |
| Maximum Cutting Depth | 50mm |
| Cutter Shank | 19mm |
| Standard Twist Drill Capacity | 13mm |
| Minimum Plate Thickness | 10mm |
| Magnet Dimension | 40 x 90 x 180mm |
| Maximum Machine Height | 650mm |
| Minimum Machine Height | 420mm |
| Machine Width | 200mm |
| Product Weight: | 12kg |
| Product Dimensions: | 275 x 132 x 338mm |
| Blow Moulded Carry Case Dimensions: | 570 x 200 x 450mm |
| Packaging Dimensions: | 570 x 470 x 210mm |
| Product Weight: | 12 kg |
| Packaged Weight: | 17 kg |
| Sound Pressure Level L PA : | 91dB(A) K:3dB(A) |
| Sound Power Level L WA : | 102dB(A) K=3 dB(A) |
| Hand Arm Vibration | 2.41m/s 2 K= 1.5m/s 2 |
Optional Equipment
Evolution 6 piece broach cutter set 25 mm
Evolution premium annular cutters can be heat treated up to 68 RC and they still have tempered hardness. A higher RC rating without brittleness means more holes cut per sharpening.
6 piece cutter set 25 mm
| Description | Broaching cutter set |
| Type | Short Series |
- Boxed set including protective foam insert
- Contains 6 annular cutters and pilot pin
- 25mm/1” long
- Includes 12,14,16,18,20,22mm dia broach cutters and pilot pin
Evolution 6 piece broach cutter set 50 mm
Evolution premium annular cutters can be heat treated up to 68 RC and they still have tempered hardness. A higher RC rating without brittleness means more holes cut per sharpening.
6 piece cutter set 50 mm
| Description | Broaching cutter set |
| Type | Long Series |
- Boxed set including protective foam insert
- Contains 6 annular cutters and pilot pin
- 50mm/2” long
- Includes 12,14,16,18,20,22mm dia broach cutters and pilot pin
