Evolution EVOMAG42 - 42mm Magnetic Drill
+3

Evolution EVOMAG42 - 42mm Magnetic Drill

095-0002
£374.00
In stock
1
Product Details

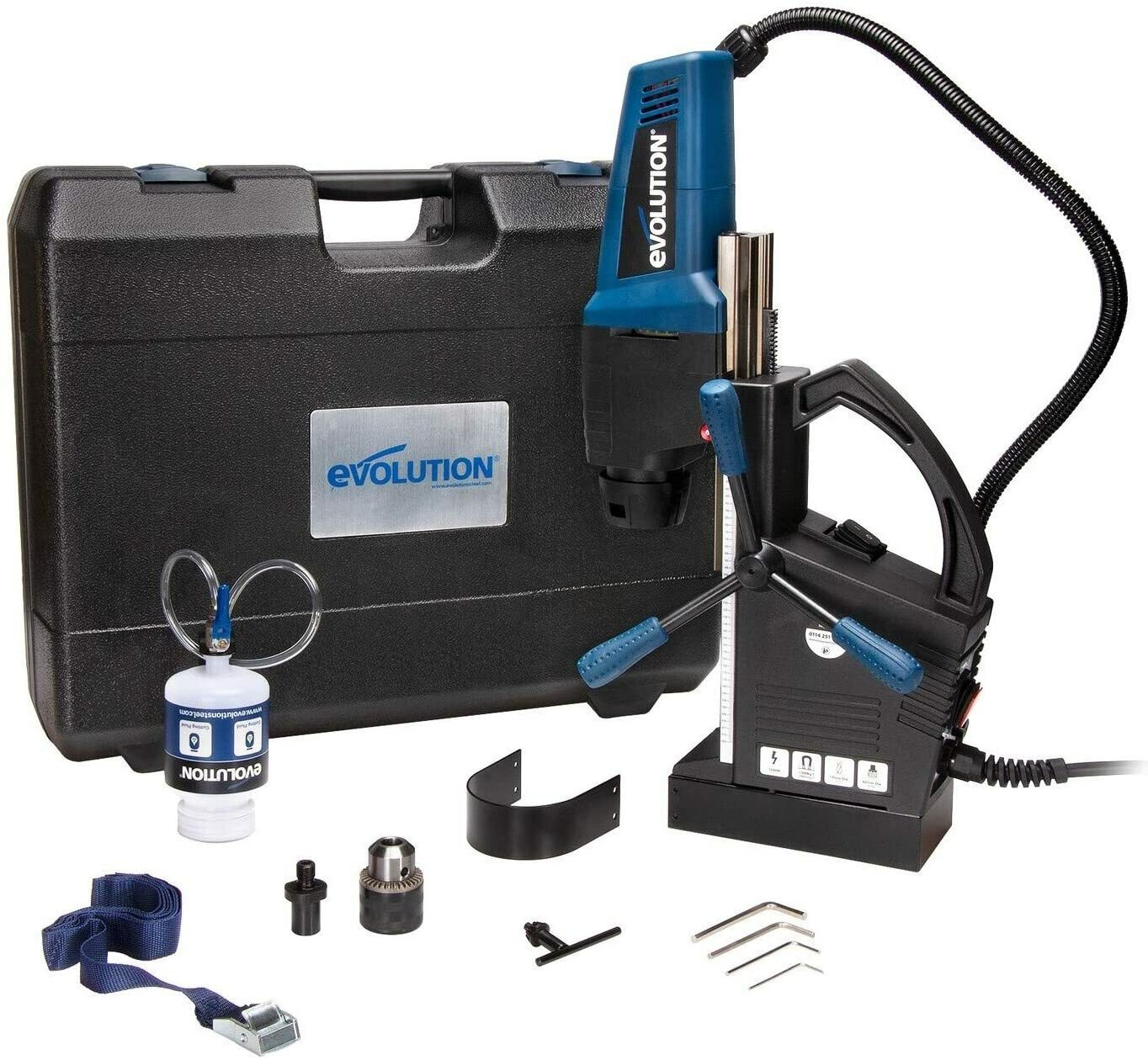

Evolution EVOMAG42 - 42mm Magnetic Drill








Highlights


  • Industrial Quality - This incredible Magnetic Drill is deceptive in its capabilities; although small in size it is well-suited for heavy-duty industrial and fabrication work.
  • The EVOMAG42 is versatile, accurate and portable with strong magnetic adhesion.
  • Ideal for site use - With so many buildings being built around a steel framework, a Magnetic Drill is an essential product and ideal for site use.
  • It is also easy to carry (with the supplied case) and its light weight makes it manageable to position in both awkward and confined spaces.
  • The impressive EVOMAG42 offers incredible value with the capability to use up to 1-5/8 inch (42mm) cutters and 1/2 inch (13mm) twist drills.
  • The EVOMAG42 also features an integrated coolant system for magnetic drilling.
  • Evolution also offers a large variety of tools to be used with the EVOMAG42. This offering includes a wide range of annular cutters, step drills and mini-cutters.
  • Extend the life of your cutters and get more value by using Evolution Cutting Fluid.
  • Ideal For: Bridges, I-Beams & Framework
  • Includes Carry Case

Technical Details


Motor (110V 50Hz): 1200W
Motor (240V 50Hz): 1200W
Speed No Load: 450 rpm -1
Number of Speeds 1
Insulation Class 1
Cable Length: 2.6m
Maximum Annular Cutting Capacity 42mm
Maximum Cutting Depth 50mm
Cutter Shank 19mm
Standard Twist Drill Capacity 13mm
Magnetic Adhesion 1300kg f
Minimum Plate Thickness 10mm
Magnet Dimension 40mm x 90mm x 180mm
Maximum Machine Height 654mm
Minimum Machine Height 420mm
Machine Width 222mm
Sound Pressure Level L PA : 89.40dB(A) K:3dB(A)
Sound Power Level L WA : 102.4dB(A) K=3 dB(A)
Hand Arm Vibration 0.629m/s 2 K= 1.5m/s 2

110 v or 230v versions of this machine available


Optional Equipment


Evolution 6 piece broach cutter set 25 mm

Evolution premium annular cutters can be heat treated up to 68 RC and they still have tempered hardness. A higher RC rating without brittleness means more holes cut per sharpening.

6 piece cutter set 25 mm

Description Broaching cutter set
Type Short Series
  • Boxed set including protective foam insert
  • Contains 6 annular cutters and pilot pin
  • 25mm/1” long
  • Includes 12,14,16,18,20,22mm dia broach cutters and pilot pin

Evolution 6 piece broach cutter set 50 mm

Evolution premium annular cutters can be heat treated up to 68 RC and they still have tempered hardness. A higher RC rating without brittleness means more holes cut per sharpening.

6 piece cutter set 50 mm

Description Broaching cutter set
Type Long Series
  • Boxed set including protective foam insert
  • Contains 6 annular cutters and pilot pin
  • 50mm/2” long
  • Includes 12,14,16,18,20,22mm dia broach cutters and pilot pin




Evolution Warranty

Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
