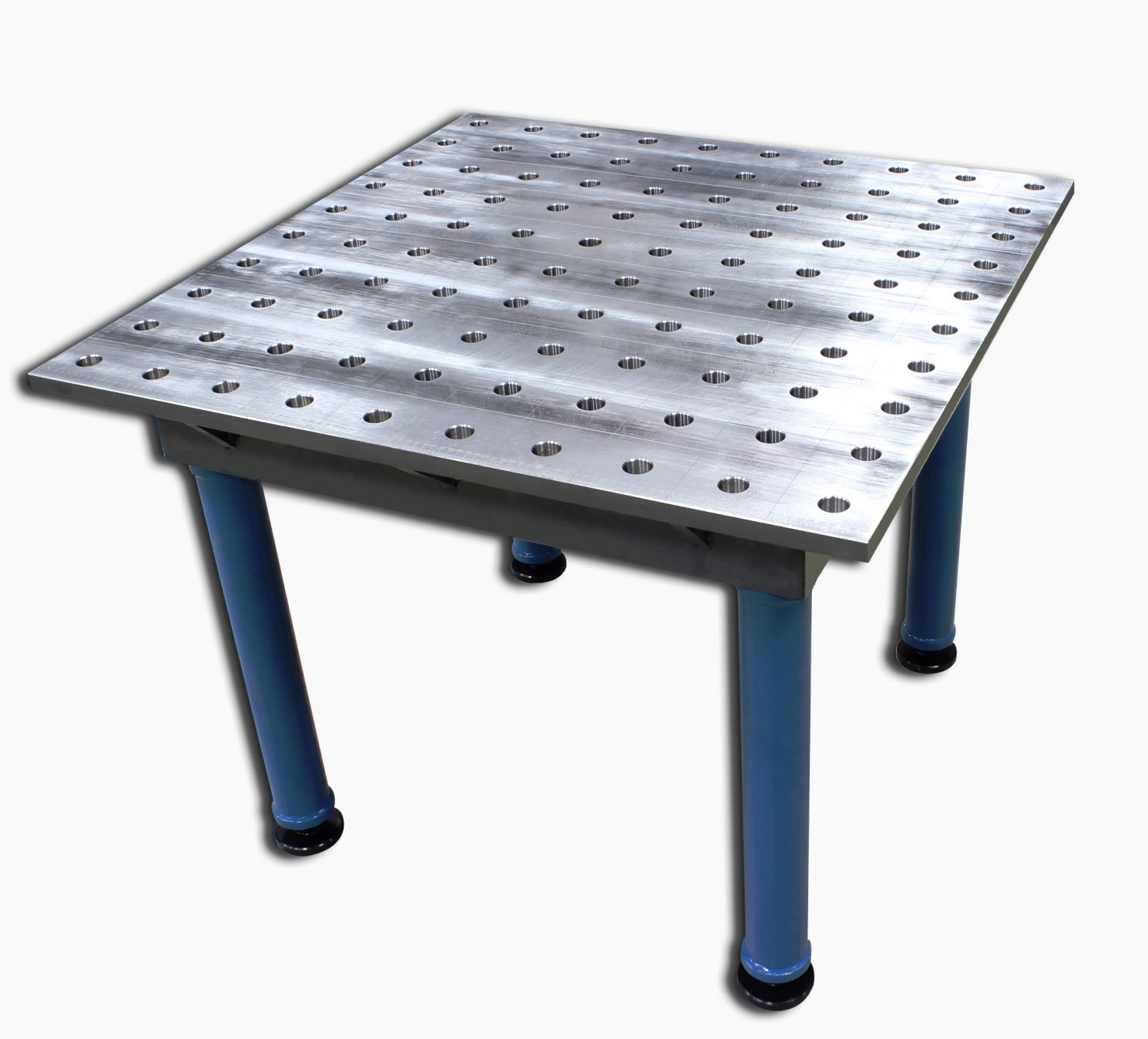

Baileigh WJT 3939 Welding Jig Table
Baileigh WJT 3939 Welding Jig Table
Highlights
The WJT-3939 welding jig table is perfect for those small shops looking for a good economical fixture mounting system.
It features one solid mounting surface that has a flatness of +/- .0025" and a Brinell hardness rating of between 140 and 160.
The best thing about the WJT-3939 metal welding table is that it accepts all of the same fixtures that the Baileigh heavy duty tables use,
so when the time is right and the shop grows, you can step right up without having the large expense of swapping out fixtures.
For more information about our welding tables, contact Traxx Industries today.
- 39” x 39” metal welding table
- Made from Q345 Steel
- Brinell Hardness 140~160
- Single Mounting Surface
- Expandable
- 2 ton weight capacity
- Industry Standard 28mm Mounting holes
- 100mm hole spacing
- Etched Position Marks
- Includes table Oiler, Brush and cleaning stone
Technical Details
| Item Number | WJT-3939 |
|---|---|
| Working Table Size | 39" x 39" |
| Table Load Capacity | 2 Tons |
| Table Height | 33.5" |
| Shipping Weight | 1,540 lbs |
| Table Flatness | +/- .0025" |
| Number of Mounting Surfaces | 1 |
| Mounting Hole Size | 28mm |
| Mounting Hole Spacing | 100mm |
* specifications subject to change without notice.
Optional
WJT - AK43 Welding Table Accessory Kit ( sku 1010427 )
Description

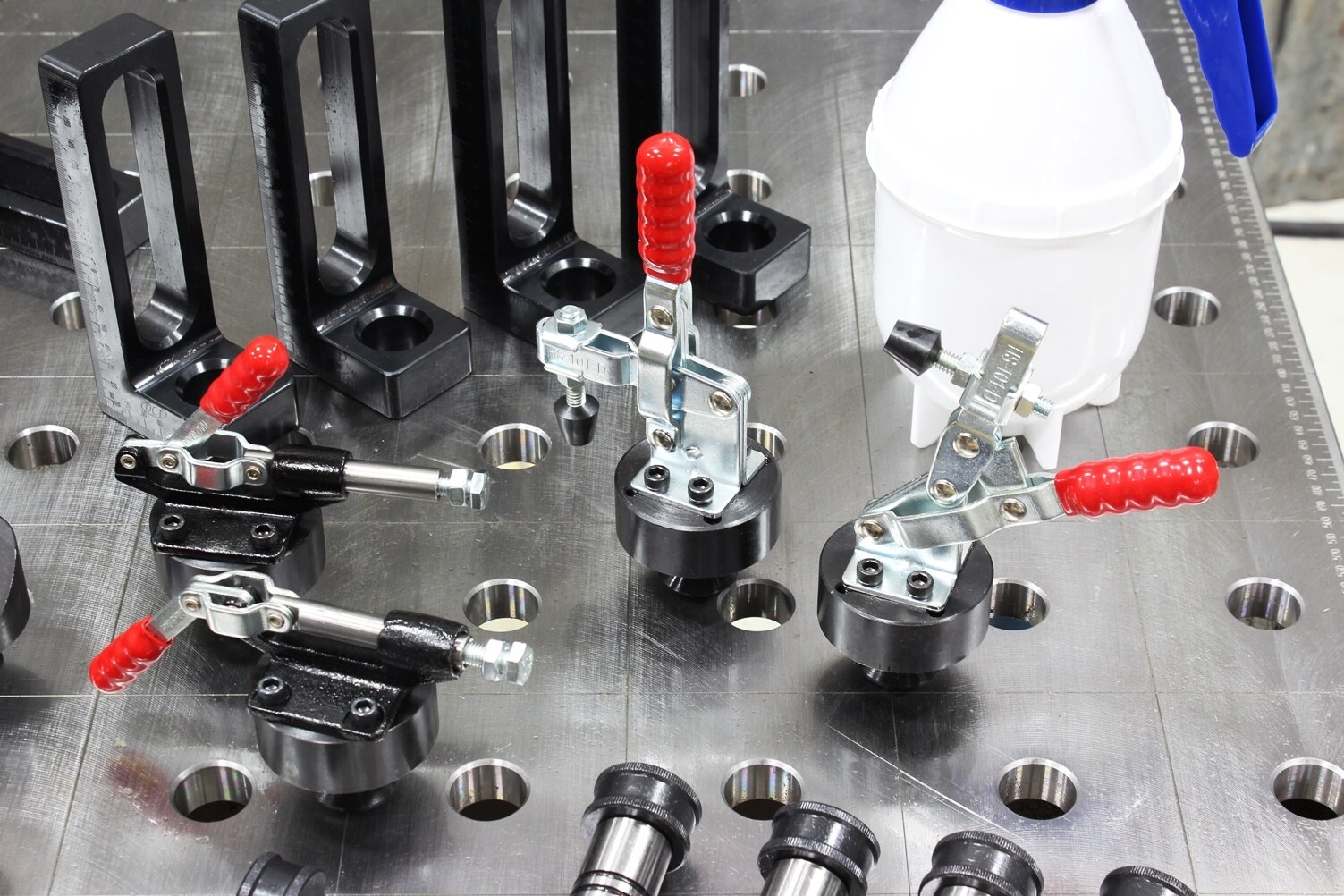

The WJT-AK43 43 Piece Welding Jig Table Accessory Kit is the perfect starter set for the Baileigh Industrial line of welding tables.
Below is a list of the included tooling:
Specifications
| Item Number | WJT-AK43 |
|---|---|
| Shipping Weight | 100lbs |
| Shipping Dimensions (Inches) | 24x24x24 |
* specifications subject to change without notice.
