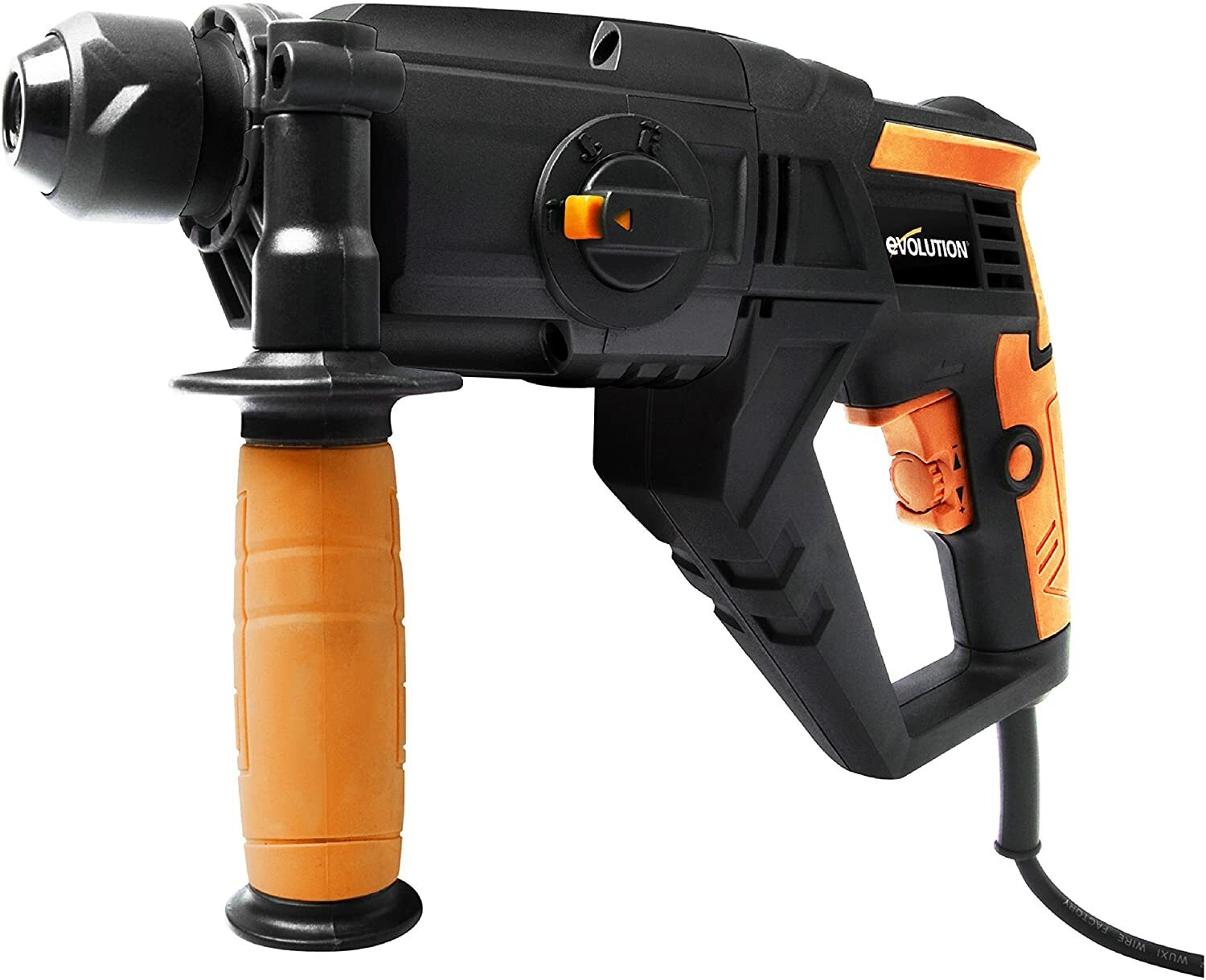

Evolution SDS4-800 4 Function Hammer Drill (110v or 230v Options)
Evolution SDS4-800 4 Function Hammer Drill (110v or 230v Options)
Highlights

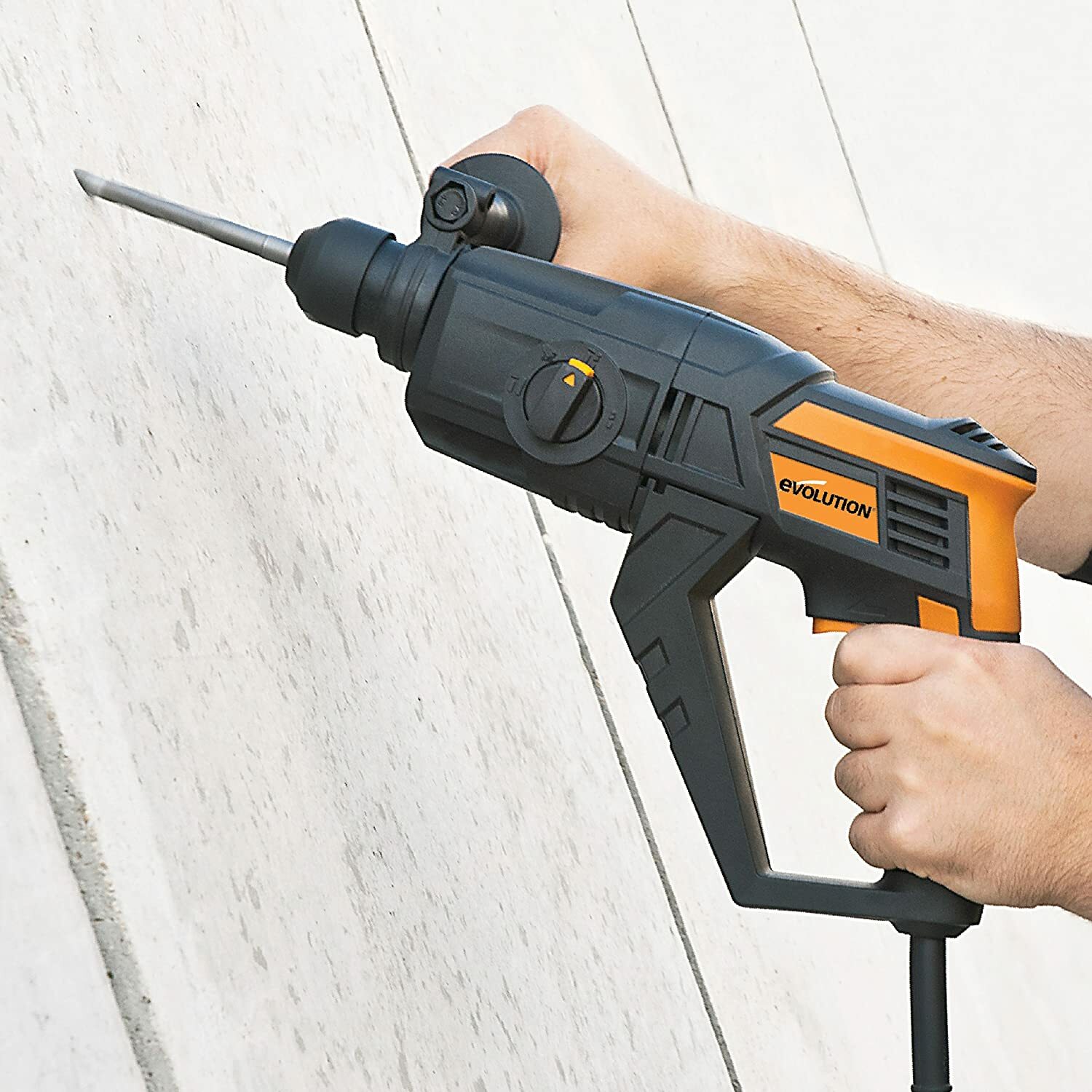

The Evolution SDS4-800 is a compact yet powerful 650W SDS hammer drill designed to tackle tough materials like steel, concrete, brick, and stone with ease. Whether you're a professional tradesperson working on-site or a DIYer renovating at home, this versatile tool delivers reliable performance across a wide range of applications.
With four operating modes – drilling, hammer drilling, chiselling, and rotation-only – the SDS4-800 adapts to a multitude of tasks. Use the hammer drill mode to bore into masonry, switch to chisel mode to remove tiles or render, or use standard drilling for wood and metal. The SDS+ chuck system allows for fast bit changes and ensures maximum impact energy transfer, making it ideal for repetitive tasks and heavy-duty use.
Delivering 1.6 Joules of impact energy and up to 1100 RPM, this drill combines speed and force for efficient material removal and penetration. The variable speed trigger gives you precise control, while the depth stop ensures consistent drilling depth – essential for tasks like installing fixings or anchors.
Its compact design and lightweight build make it easy to manoeuvre in tight spaces or overhead, while the soft-grip handle and adjustable side handle enhance comfort and control during extended use. Supplied with a full accessory kit – including 3 SDS drill bits (6mm x 160mm, 8mm x 160mm, 10mm x 160mm), 2 chisels (250mm Pointed Chisel and 250mm Flat Chisel), depth stop, and a durable carry case – the SDS4-800 is ready to go straight out of the box.
Whether you're chasing walls for electrical cables, mounting shelves into brick, removing old tiles, or drilling pilot holes into steel, the SDS4-800 is a dependable, multi-functional tool that bridges the gap between trade-grade performance and DIY accessibility..
*This SDS Drill is not rated as a concrete breaker.
- 4-Function Modes – Drill, hammer drill, chisel, and rotation-only for maximum versatility
- 650W Motor – High torque output for tough materials like concrete and brick
- 1.6 Joules Impact Energy – Efficient penetration with less effort
- Variable Speed (0–1100 RPM) – Greater control for different materials and applications
- SDS+ Chuck System – Quick and secure bit changes with enhanced hammering action
- Drilling Capacities – Steel (13mm), Concrete (20mm), Wood (30mm) – suitable for a wide range of jobs
- Ergonomic Design – Soft-grip handle and adjustable side handle for comfort and control
- Accessory Kit Included – Supplied with a full accessory kit including 3 SDS drill bits (6mm x 160mm, 8mm x 160mm, 10mm x 160mm), 2 chisels (250mm Pointed Chisel and 250mm Flat Chisel), depth stop, and a durable carry case
- Compact & Lightweight – Easy to manoeuvre in tight spaces and ideal for overhead work
- 2-Year Warranty – Peace of mind with manufacturer-backed support
- This SDS Drill is not rated as a concrete breaker
SDS4 -800 110V
- Four functions (drill, chisel, rotation, hammer)
- Variable speed control (0-1100 rpm)
- Compact and portable, yet strong and robust
- High impact energy (1.6 J)
- Two year warranty (only valid if purchased in the UK)
SDS4 -800 230V
- Four functions (drill, chisel, rotation, hammer)
- Variable speed control (0-1100 rpm)
- Compact and portable, yet strong and robust
- High impact energy (1.6 J)
- Two year warranty (only valid if purchased in the UK)
Technical Details
SDS4-800 230v
| Manufacturer | Evolution Power Tools |
|---|---|
| Part Number | 096-0001 |
| Item model number | 096-0001 |
| Size | 230 V - Domestic |
| Power Source | Corded Electric |
| Voltage | 230 Volts |
| Wattage | 650 watts |
| Speed | 1100 RPM |
| Included Components | Side handle, 250mm Pointed Chisel, Depth stop, 8 x 160mm SDS drill, 250mm Flat Chisel, 10 x 160mm SDS drill, 6 x 160mm SDS drill |
| Item Weight | 3.5 kg |
| Product Dimensions | 32 x 8.5 x 21 cm |
| Weight | 3.5 Kilograms |
SDS4 -800 110V
| Manufacturer | Evolution Power Tools |
|---|---|
| Part Number | 096-0002 |
| Item model number | 096-0002 |
| Size | 110 V - Site Use |
| Power Source | Corded Electric |
| Wattage | 650 watts |
| Included Components | Side handle, 250mm Pointed Chisel, Depth stop, 8 x 160mm SDS drill, 250mm Flat Chisel, 10 x 160mm SDS drill, 6 x 160mm SDS drill |
| Item Weight | 4.82 kg |
| Product Dimensions | 31.5 x 38.99 x 12.5 cm |
Items Supplied
| Instruction Manual |
| 250mm Pointed Chisel |
| 8mm x 160mm SDS drill |
| 250mm Flat Chisel |
| 10mm x 160mm SDS drill |
| 6mm x 160mm SDS drill |
| Depth Stop |
