Knuth Basic Plus Mechanics Lathe ( Part No. 300809 ) Great Value Leadscrew & Feed Shaft Lathe. Extensive Standard Equipment
Knuth Basic Plus Mechanics Lathe
( Part No.300809 )
Great Value Leadscrew & Feed Shaft Lathe. Extensive Standard Equipment
Ex Stock Availability, 4 weeks, Subject to No Prior Sales.
Highlights

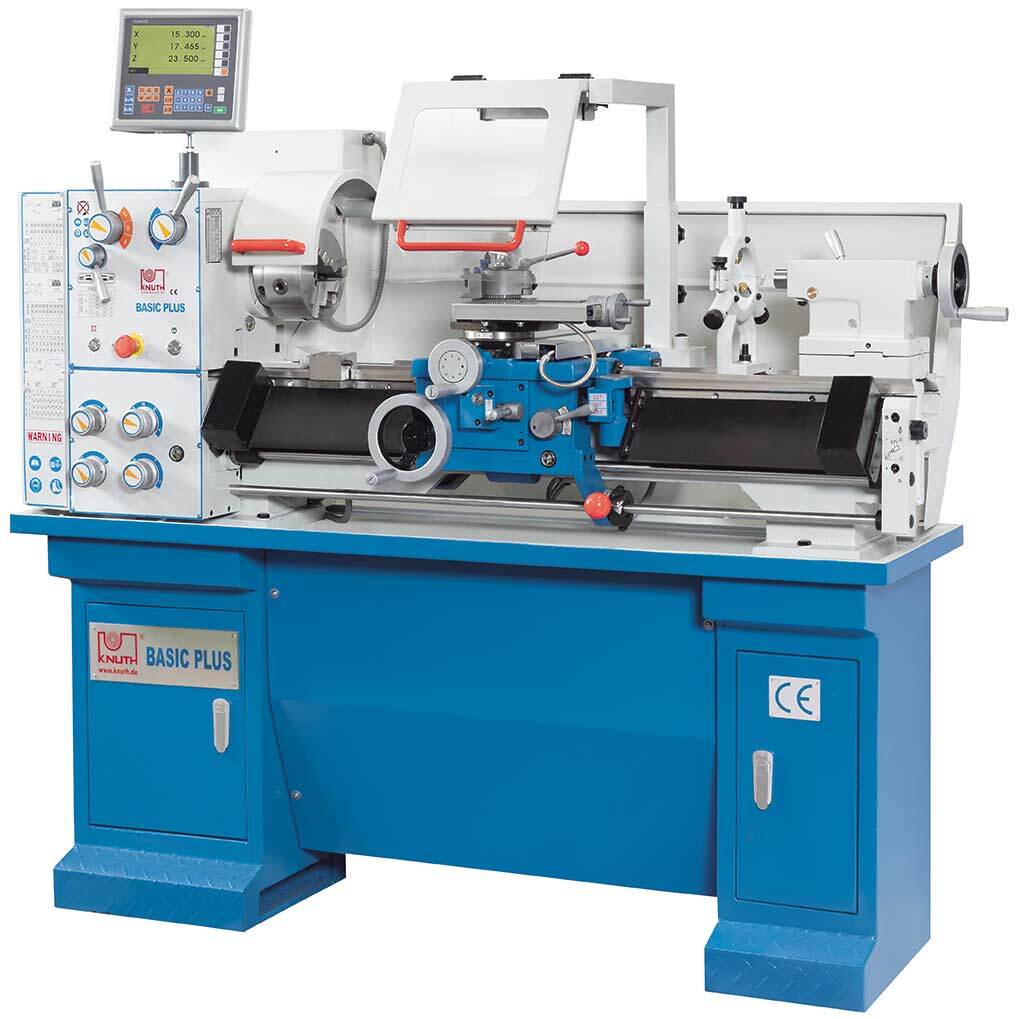

Knuth Basic Plus Mechanics Lathe
The Basic Plus is a versatile lathe for single part production. The wide range of optional accessories makes this model the best choice for repair, training and workshops of all kinds.
- Robustness and precision
- compact design with small footprint
- Extensive standard accessories
- Quick change tool holder
- Mounted 3-axis position indicator
Detail
- Main spindle gears hardened and ground
- Main spindle with Camlock D1-4" mount, bore Ø 38 mm, guided in 2 adjustable precision bearings
- Adjustable main spindle bearing
- Tailstock can be shifted ±10mm for taper turning
- Sliding wheel reversing gear for changing the feed direction
- Guides adjustable via V-ledges
- Cast iron bed, double V-guide, hardened and ground
3-axis position indicator
- Higher work accuracy
- Lower error rate
- Greater production security
- Significant time savings
- productivity increase
- Optimal readable display
- User-friendly functions
- Clearly arranged keyboard
- Resolution 0.01 / 0.005mm
- coordinate value specification
- Retaining the axis position when the display is switched off
- Bolt circle pattern calculation
- calculator function
- Storage for 10 tools
- Radius / diameter switching
- Conversion mm/inch
- Easy attachment and maintenance-free operation
- Display of upper (Z0) and bed slides (Z1) both separately and in difference / cumulative switching on lathes
Technical Details
| WORKSPACE | |
|---|---|
| turning diameter over bed | 300mm |
| Circulation Ø over support | 178mm |
| bed width | 180mm |
| peak width | 810mm |
| TRAVERSE PATHS | |
|---|---|
| X axis travel | 155mm |
| Z1 axis travel | 95mm |
| Swivel range top slide | ± 60° |
| MAIN SPINDLE | |
|---|---|
| spindle mount | Camlock D1-4 |
| spindle speed | 60 rpm - 1550 rpm |
| spindle bore | 38mm |
| Spindle speed levels | 9 |
| spindle cone | 5 MK |
| FEED | |
|---|---|
| Feed X axis | 0.014mm/rev - 0.38mm/rev |
| Feed Z axis | 0.052mm/rev - 1.392mm/rev |
| THREADING | |
|---|---|
| Threading Whitworth | (34) 4-56 TPI |
| Threading, Metric | (26) 0.4-7mm |
| TAILSTOCK | |
|---|---|
| tailstock cone | 3 MK |
| tailstock quill stroke | 100mm |
| tailstock quill diameter | 32mm |
| Tailstock cross adjustment | ± 10mm |
| DRIVE POWER | |
|---|---|
| Main drive engine power | 1.1kW |
| MASS AND WEIGHT | |
|---|---|
| Dimensions (length x width x height) | 1.6m x 0.75m x 1.27m |
| Weight | 520kg |
Standard Equipment
3-axis position indicator 3-jaw
chuck Ø 160 mm
4-jaw faceplate chuck Ø 200 mm
clamping disc Ø 250 mm
WAD 1675
quick-change tool holder head WA quick -change tool holder
fixed and
revolving steady rest chip tray
splash guard
chuck guard
subframe
change gears
reducing sleeves
fixed centers (centering centers)
micrometer longitudinal stop thread gauge
operating
tool
operating manual
Operator Training
