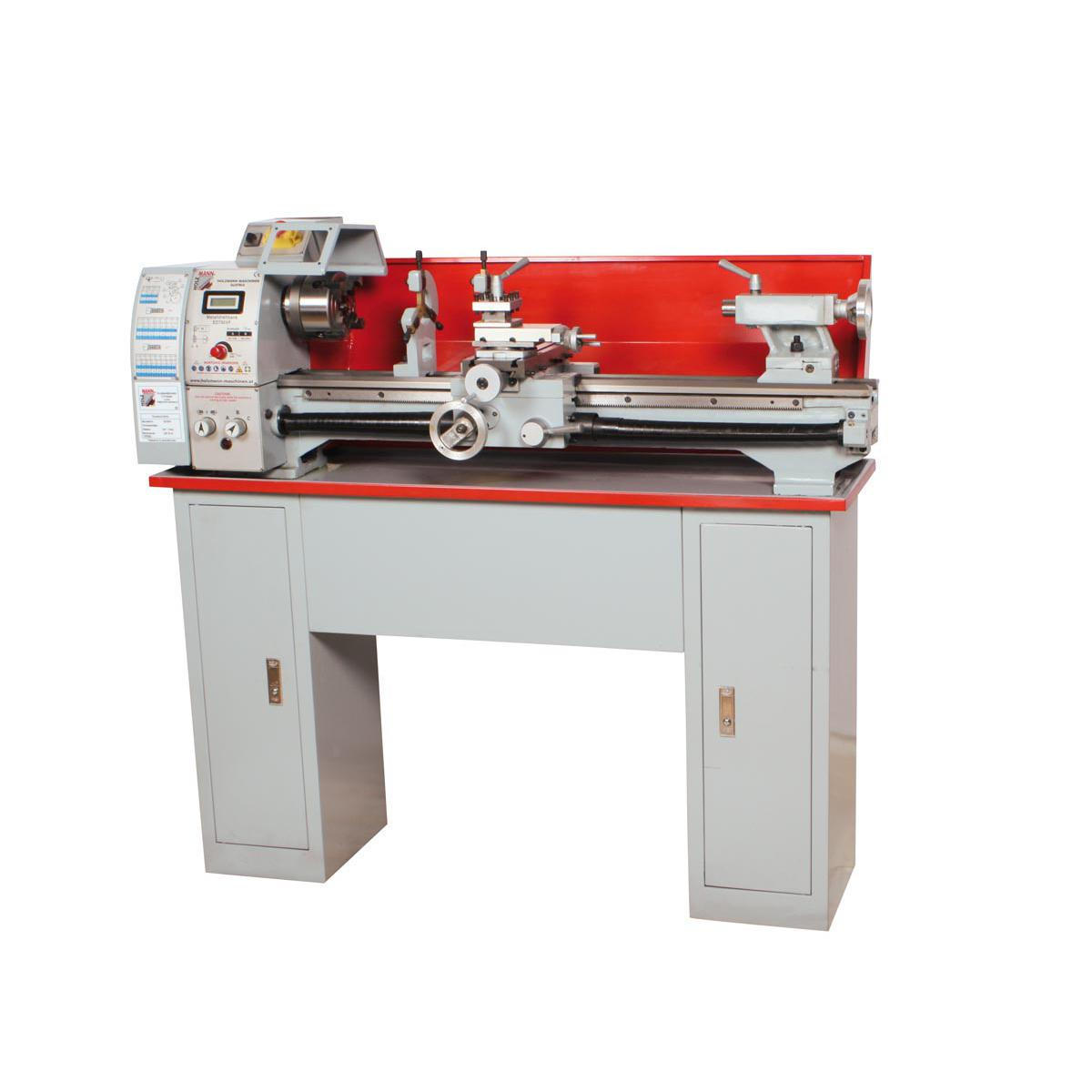

Holzmann ED750FD 230V * Metal Lathe
+3

Holzmann ED750FD 230V * Metal Lathe

9120039900902 LATHE
£2,399.00
In stock
1
Product Details

Holzmann ED750FD 230V * Metal Lathe





Highlights

  • solid and rugged cast iron set up
  • variable speed adjustable via potentiometer
  • speed indication via LCD-display
  • resistant and induction-hardened machine bed
  • stand with two cabinets included in delivery, modern design
  • max. turning diameter 250mm, bed width 135mm
  • lead screw cover ensures a long durability and accuracy over many years
  • spindle bore 25mm, spindle taper MT3, tail stock MT2
  • machine able to cut metric threads

included in delivery: stand, 3-jaw chuck Ø125mm, change gears, 2pcs dead centres, inner and outer jaws, 4-way tool post, lead screw cover, chuck guard with window, 4-jaw chuck Ø125mm, face plate Ø 220mm

Technical Details

motor data
motor power s1 in W 750
voltage 230V / 50Hz
measurements
total dimensions in mm 1355 x 560 x 1065
bed width in mm 135
turning machines
spindle bore in mm 25
spindle taper MK4/MT4
tailstock taper MK2/MT2
lathe spindle speed in min-1 (I): 50-1250; (II) 100-2500
range of metric threads in mm/r 0,2-3,5 (18)
range of inch threads 8-56 TPI (21)
distance between centers in mm 750
max. swing over bed in mm 250
center height in mm 125
max. swing over cross slide in mm 130
longitudinal feed 0,07-0,4 mm/U (6)
carriage travel in mm 640
cross slide travel in mm 115
compound slide travel in mm 70
tailstock sleeve travel 60
weight
net weight in kg 126
gross weight in kg 140
packaging
packaging height in mm 565
packaging width in mm 625
packaging length in mm 1.385
general data
EAN code 9120039900902



The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
