Holzmann ED1000FBDIG_400V Metal Lathe
+3

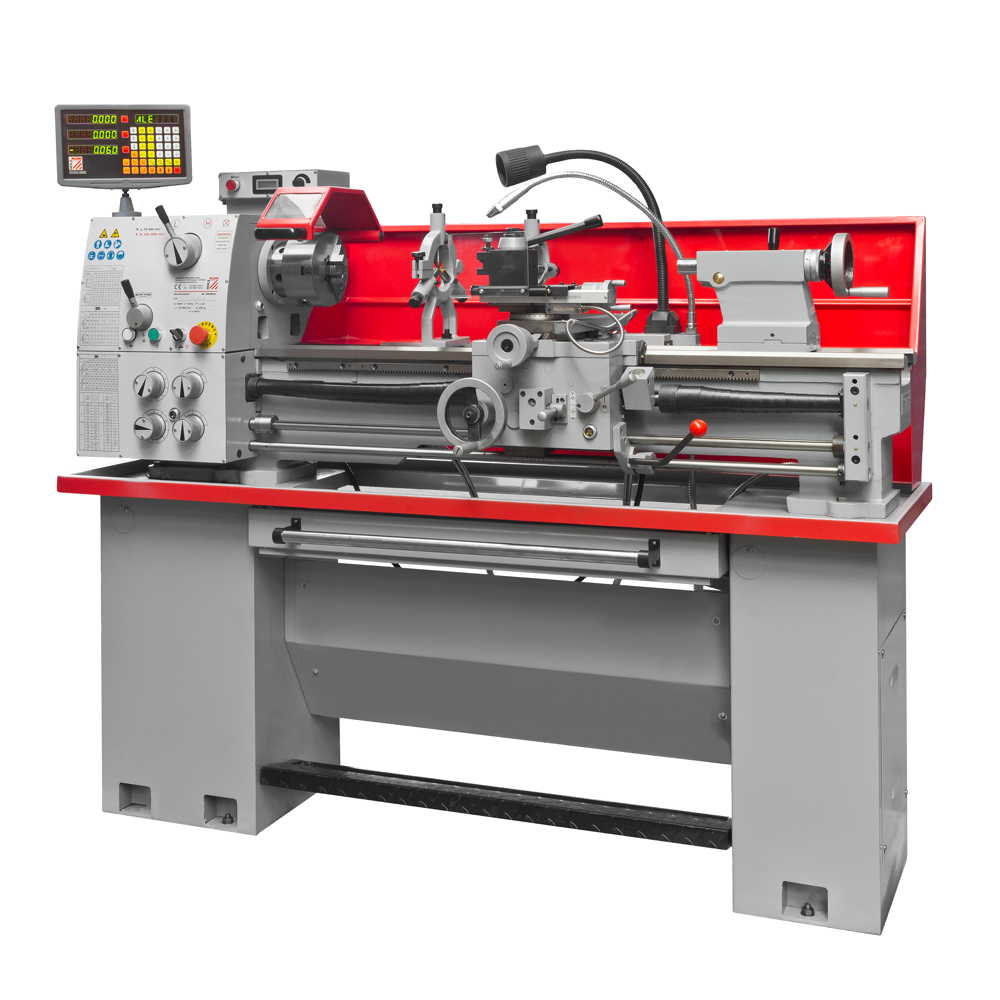

Holzmann ED1000FBDIG_400V Metal Lathe

9120058373275
£6,999.00
In stock
1
Product Details

Holzmann ED1000FBDIG_400V Metal Lathe




Highlights

  • versatile, particularly valuable guide and tension spindle lathe
  • ideal for use in toolmaking, production or in training centers
  • electromagnetic foot brake - for max. Safety and minimal non-productive times thanks to an immediate spindle stop
  • inductively hardened and precision ground prism bed guideway
  • Removable bridge enables workpieces with a diameter of up to 476 mm to be machined
  • Gear and main spindle hardened and precision ground, running in an oil bath
  • Speed continuously adjustable via frequency converter, easy to read via digital speed display
  • including cooling, lamp and quick-change holder
  • large digital display for ease of use

Technical Details

Motor data
Motor power S1 in W 1.5 kW
Voltage 400V / 3 / 50Hz
Lathes
Distance between centers in mm 1000
Center height in mm 165
Max. Circumferential diameter bed in mm 330
Max. Circumferential diameter of cross slide in mm 198
Max. Swing diameter without bridge in mm 450
Turning spindle speed in min-1 70-2000
Spindle bore in mm 40
Spindle mount MK / MT5
Tailstock cone MK / MT3
Longitudinal feed 0.053-1.29 mm
Cross feed 0.013-0.31 mm
Travel length longitudinal slide in mm 760 mm
Traverse path of cross slide in mm 130 mm
Travel top slide in mm 75 mm
Quill travel in mm 100
Metric thread in mm / r 0.4-7
Thread inch 4-60 TPI
Max. Tool holder 14x14 mm
Weight
Gross weight in kg 635
Net weight in kg 600
Shipping dimensions
Packaging width in mm 740
Packaging height in mm 1,565
Packaging length in mm 1,860
General data
EAN Code 9120058373275




The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
