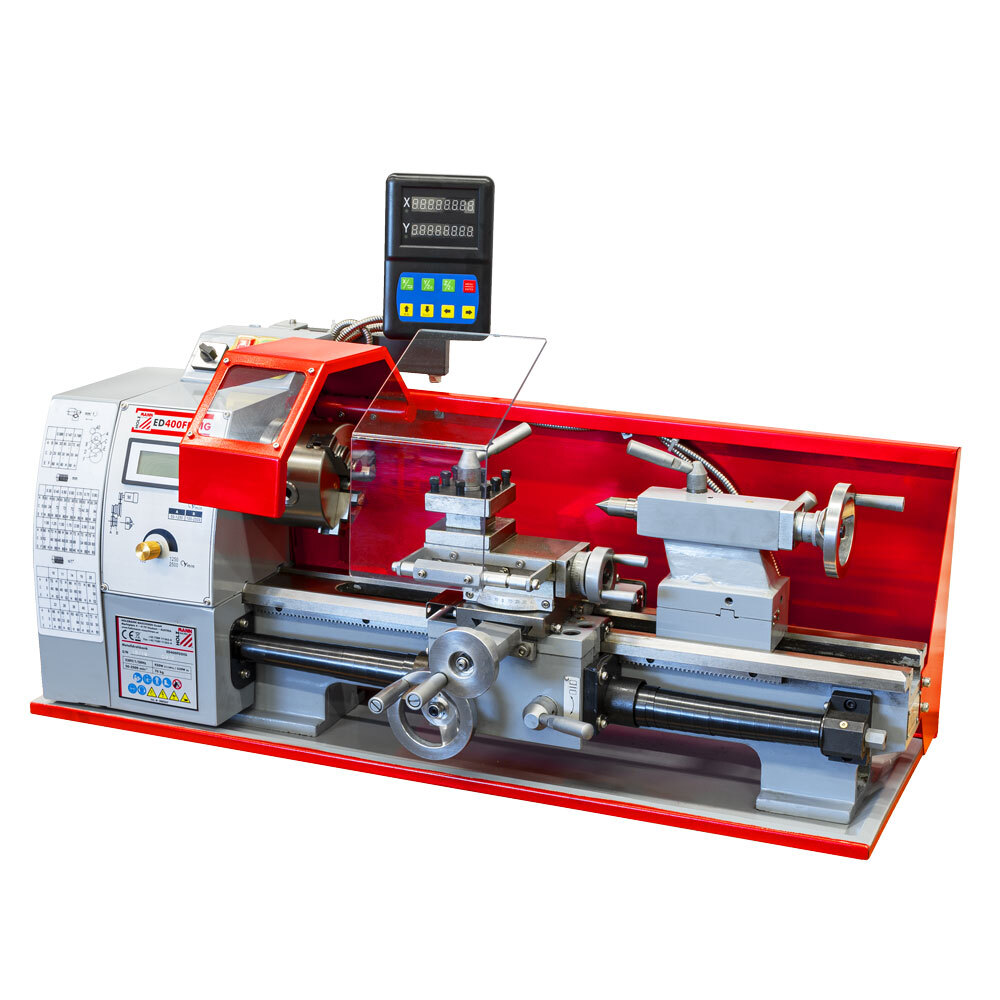

Holzmann ED400FDDIG 230V Metal Lathe
+3

Holzmann ED400FDDIG 230V Metal Lathe

9120058378065
£1,349.00
In stock
1
Product Details

Holzmann ED400FDDIG 230V Metal Lathe







Highlights

  • serially equipped with leadscrew for thread cutting and automatic longitudinal feed
  • induction-hardened and precision ground prismatic bed way guides
  • hardened main spindle bedded with adjustable taper roll bearings
  • high spindle centricity assures maximal turning accuracy
  • spindle speed steplessly adjustable, speed can be read off conveniently from digital speed display
  • comes with change gears delivering an exceptionally broad thread cutting range
  • guides conveniently adjustable via V-ledges ensuring precision for many years
  • powerful, maintenance free motor with under voltage release
  • smooth power transmission delivers constant torque
  • tailstock can be adjusted for taper turning
  • CW/CCW run mode
  • note: Machine runs at half speed when reversing.

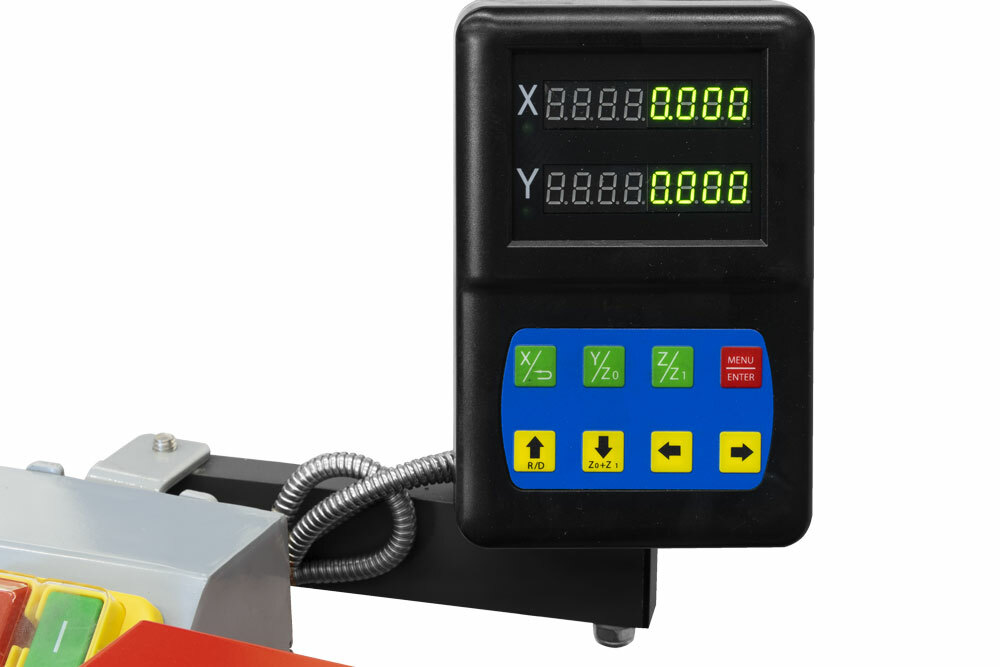

  • 2-axis digital read out (DRO)

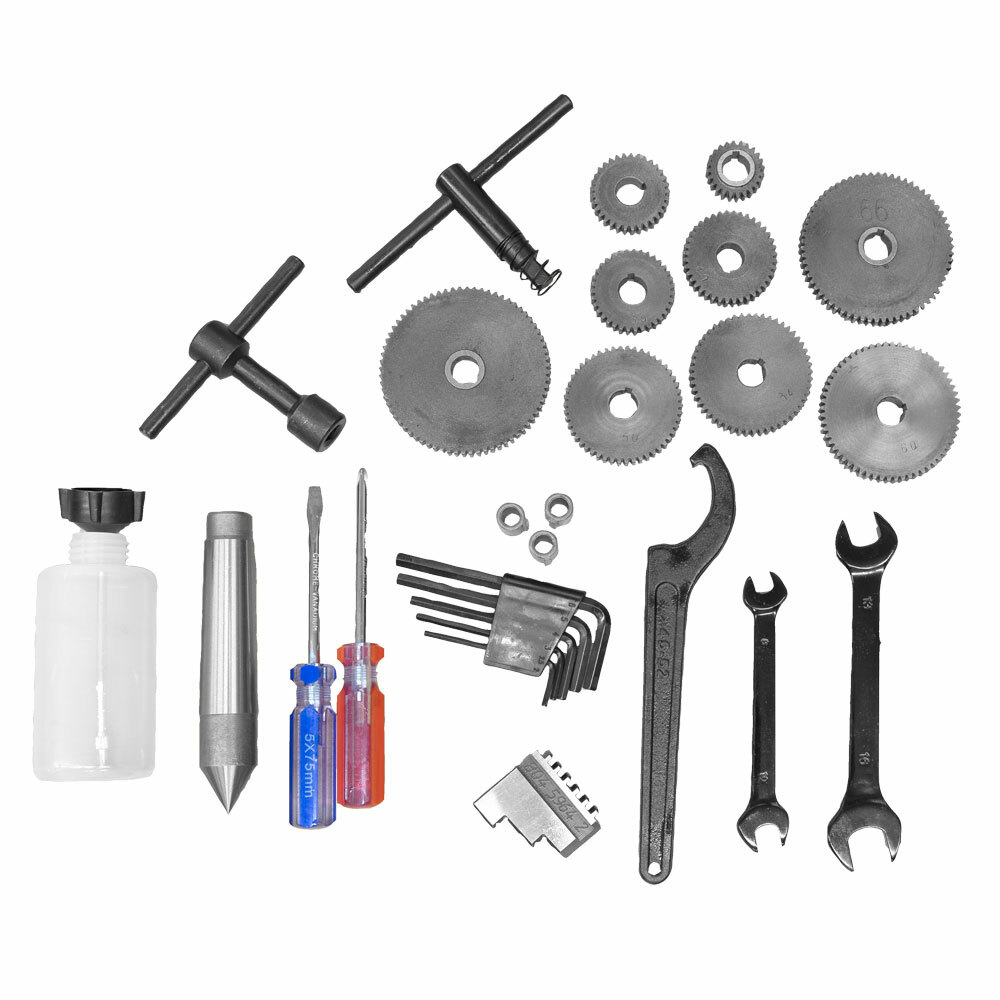

included in delivery: 3-jaw chuck Ø 100mm, 4-way tool post, dead centre MT3, dead centre MT2, chuck guard, chip tray, change gears, tools


Technical Details

motor data
motor power s1 in W 450
motor power s6 in W 630
voltage 230 V / 50 Hz
cable length 1,7m
measurements
total dimensions in mm 940 x 380 x 345
bed width in mm 100
turning machines
distance between centres in mm 400
max. swing over bed in mm 210
max. swing over cross slide in mm 134
lathe spindle speed in min-1 50-2500
spindle bore in mm 21
spindle nose mount MK3 / MT3
tailstock cone MK2 / MT2
longitudinal feed 0,089 / 0,147 / 0,198 mm/U
carriage travel in mm 376
cross slide travel in mm 80
compound slide travel in mm 55
tailstock sleeve travel 55
range of metric threads in mm/r 0,5 -3 (14)
range of inch threads 8 - 44 TPI (10)
max. tool holder cross-section 10
weight
gross weight in kg 77
net weight in kg 70

The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
