Knuth SSB 40 F Column Drill Press ( Part No. 162335 ) Large drilling capacity and easy handling
£9,157.00
In stock
Product Details

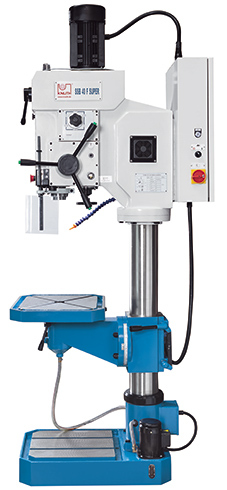

Knuth 40 F Super Column Drill Press
( Part No. 162335 )
Large Drilling Capacity and easy handling
Ex stock availability. 4 weeks. Subject to no prior sales
Highlights
- Knuth SSB 40 F Column Drill Press
-
Ideal for one-off and series production, for drilling, countersinking, reaming and thread cutting
- Very stable construction with thick-walled column and large overhang
- Infinitely variable speed adjustment with countershaft and digital display of the speed
- 4 automatic drill feeds, switchable via electromagnetic clutch with automatic limit switch

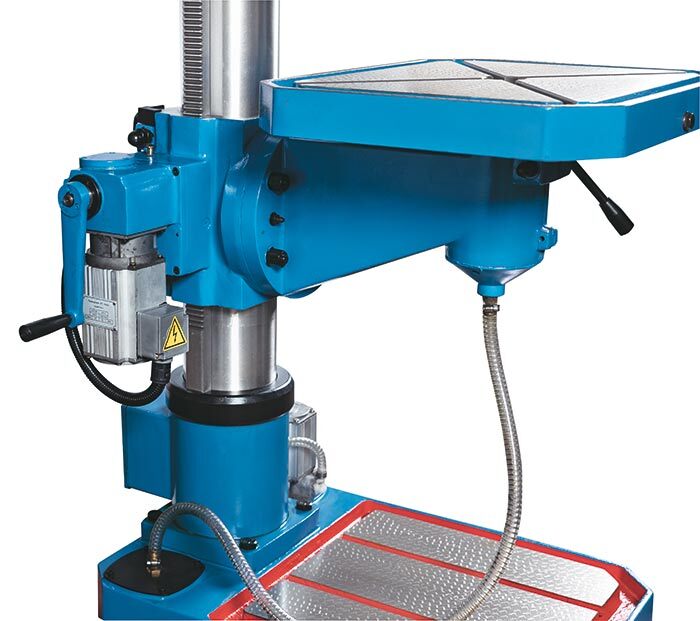

- Motorized table height adjustment
- Digital drilling depth display

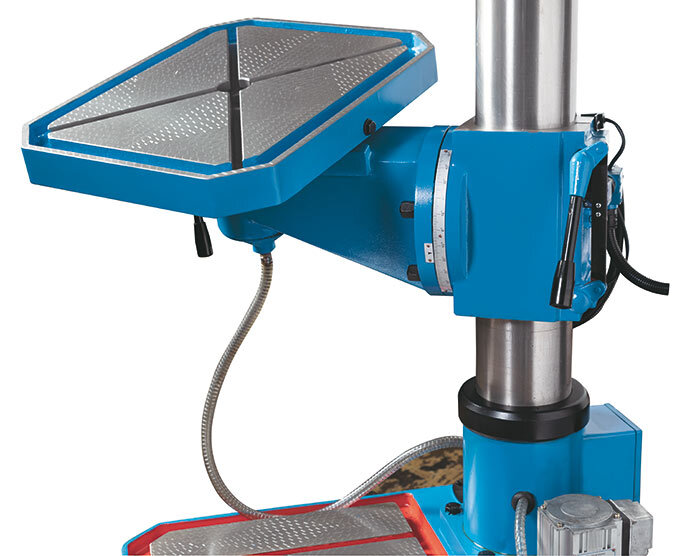

- Large drill table with all-round coolant channel, height-adjustable and swiveling ± 45°
- Standard thread cutting device
Technical Details
| WORKSPACE | |
|---|---|
| drilling performance | 40mm |
| table mounting surface | 540mm x 440mm |
| Tapping performance, steel | M24 |
| unloading | 340mm |
| Distance spindle nose - table surface | 665mm |
| Table swivel range (max.) | ± 45° |
| quill stroke | 190mm |
| Table travel manually | 570mm |
| Motorized table travel | 430mm |
| column diameter | 140mm |
| Distance spindle nose - foot | 1195mm |
| MAIN SPINDLE | |
|---|---|
| speed range | 60 rpm - 2600 rpm |
| spindle mount | MK 4 |
| FEED | |
|---|---|
| quill feeds | 0.1; 0.2; 0.3; 0.4 (4) mm/rev |
| DRIVE POWER | |
|---|---|
| Main drive engine power | 2kW |
| MASS AND WEIGHT | |
|---|---|
| Dimensions (length x width x height) | 1m x 0.65m x 2.22m |
| Weight | 500kg |
Standard Equipment
Thread cutting device
Protective shield
LED work light
Coolant
device Operating tool Operating
instructions
