Knuth SSB 32 Xn Column Drill Press ( Part No. 162332 ) Universal drill press for workshop applications
+3

Knuth SSB 32 Xn Column Drill Press ( Part No. 162332 ) Universal drill press for workshop applications

162332
£5,700.00
In stock
1
Product Details

Knuth SSB 32 Xn Column Drill Press

( Part No. 162332 )

Universal drill press for workshop applications

Ex stock availability. 4 weeks. Subject to no prior sales





Highlights

  • Knuth SSB 32 Xn Column Drill Press
  • The SSB Xn-Series drill presses are the right choice for every workshop, both for repair and production. These universal drilling machines have a thick-walled column, powerful drives and robust gearboxes for the spindle and feed. The large work area and the large, universal clamping tables enable easy handling and processing of small workpieces, but also large and heavy parts and assemblies. With its proven reliability, this series has been one of our best-selling solutions for more than 20 years.
    • Swivel table for angle drilling
    • Automatic drill feed
    • Worktable with 2 rotary axes for flexible operation
    • Tiltable milling head (SSB 32 XN)
    • Well thought out security features

Detail

  • Stable cast iron construction with thick-walled column
  • Thread cutting device as standard
  • Automatic drill feeds are switched on and off via an electromagnetic clutch

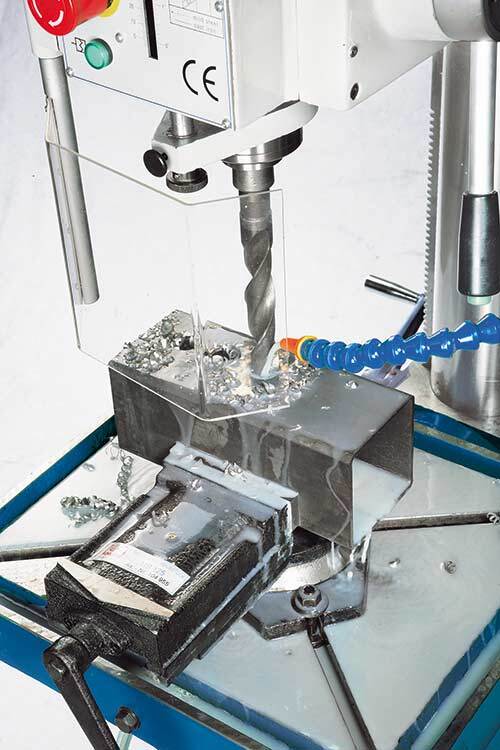

  • Fully equipped with coolant system and work light
  • Table can be rotated and swiveled ± 45°
  • 2-speed motor for 12 speed levels

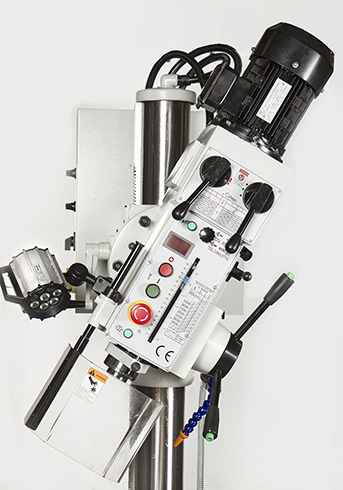

  • Head ± 45° swiveling and height adjustable
  • Digital speed display

Technical Details

WORKSPACE
drilling performance 32mm
table mounting surface 500mm x 420mm
table load capacity 100kg
Tapping performance, steel M20
unloading 320mm
Distance spindle nose - table surface 630mm
Table swivel range (max.) ± 45°
quill stroke 160mm
column diameter 120mm
Distance spindle nose - foot 1185mm
Swivel range head ± 50°
table lift 490mm
head travel 280mm
MAIN SPINDLE
spindle mount MK 4
spindle speed 125 rpm - 3030 rpm
Spindle speed levels 12
FEED
quill feeds 0.1; 0.2; 0.3mm/rev
DRIVE POWER
Main drive engine power 1.2kW
MASS AND WEIGHT
Dimensions (length x width x height) 0.84m x 0.5m x 1.96m
Weight 540kg

Standard Equipment

Thread cutting device
Protective shield

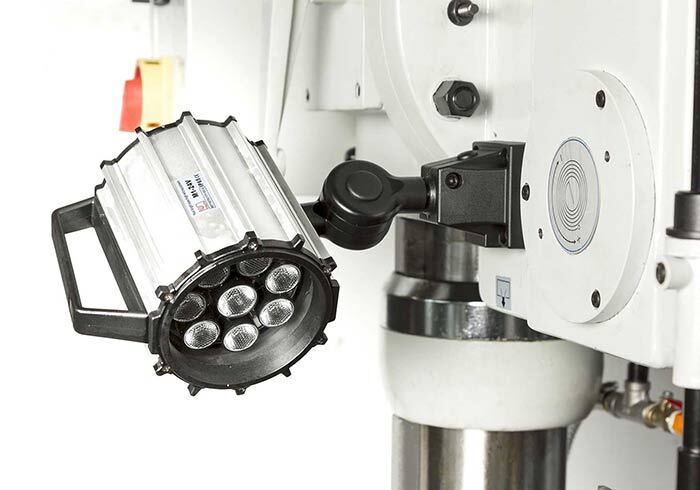

LED work light
Coolant
device Operating tool Operating
instructions

Optional Equipment

Wide range of optional equipment available for this machine as follows

Oscillating elements LK 3 SKU: 103330

Reducing sleeve MT 4/1 SKU 103820
Reducing sleeve MT 4/2 SKU: 103825
Reducing sleeve MT 4/3 SKU: 103830
Extension sleeve MT 4/5 SKU: 104670
Punch MK 4/5 SKU: 104695
Insertion spigot MK4 / B16 SKU: 104745
Insertion spigot MK 4/B 18 SKU: 104750
Keyless chuck 1-13 mm B16 SKU: 104765
Keyless chuck 3-16 mm B18 SKU: 104770
Tapping attachment MK3/4 M5-M12 SKU: 106035
Tapping attachment MK3/4 M8-M20 SKU: 106037
HSS countersink set approx. 2-12mm SKU: 107615
HSS countersink set approx. 6-20mm SKU: 107617
Boring head & boring bar set 50mm 9 pcs. SKU: 108631
Combination countersink set SKU: 108655
Countersink 90° SKU: 108665
PBS 140 machine vise SKU: 125006
PBS 200 machine vise SKU: 125007
UMS 140 vice SKU: 125031
Receiver shaft MK4 SKU: 108641
Boring head & boring bar set 75mm 12 pcs . SKU: 108633
Coolant concentrate 5 l SKU: 103184
PB 100 prism drill vice SKU: 104840
grip type. Deluxe 14/M12 SKU: 105295
Universal facing and boring head ADA / MK 4 SKU: 103402
Accessory set MK 4 8 pcs. SKU: 104594

Please contact us via email for price details of any options of interest.
