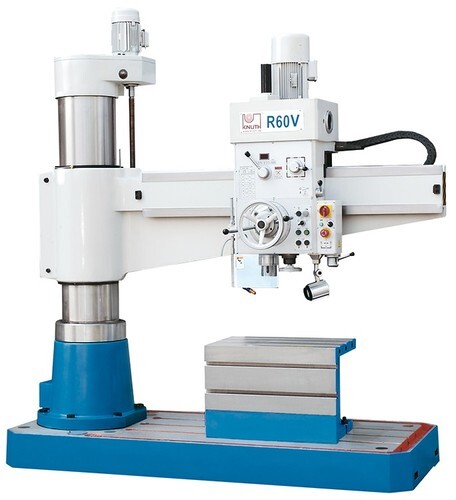

Knuth R60V Radial Drilling Machine ( SKU : 101649) Easy handling, of large and heavy workpieces
Knuth R 60 V Radial Drill Press
( Part No. 101649)
Easy handling, of large and heavy workpieces
Ex Stock Availability. 4 weeks . Subject to No Prior Sales.
Highlights
Knuth R 60 V Radial Drill Press
The Knuth range of radial drilling machines is one of the most versatile and powerful drilling solutions for drilling, reaming and countersinking in steel or cast iron. These models impress with their easy handling, even of large and heavy workpieces. The long projection arm makes it extremely flexible for use in many production and construction companies. The RV series is the modern, further developed version of the classic radial drilling machine and has been one of the most requested KNUTH models for more than 15 years.
- Infinitely variable spindle speed with digital display
- Standard cube table for extended application possibilities
- Robust construction for constant high accuracy
- Modern design for easy and comfortable operation
Detail
- Base, column, boom and gear head are made of premium high-quality cast
- Major design features include a large column and a highly torsion-resistant boom
- Boom height adjustment via a powerful motorized drive and vertical spindle
- The boom lifting gears run in an oil-bath for maximum reliability and minimum wear
- Advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset
- Swivel axis and travel axis feature extremely smooth operation to make the operator's everyday production work easier
- The gears feature hardened and precision-ground chrome-nickel steel for smooth and low-noise operation
- All gear parts are lubricated reliably via oil pump
- The main spindle runs on precision bearings and features an automatic spindle brake
- Quill teeth are precision-ground for a smooth feed and minimum wear
- The drill head moves on hardened and ground guideways
- All models feature adjustable overload clutches in the feeds
- Adjustable boring depth stop with large, easy to read scale and Nonius
- All operator controls are placed within reach for convenient and practical handling and quick learning
- Powerful coolant system with coolant reservoir integrated into the machine foot
- Optimum size/performance ratio and a new drive technology make this a bestseller
- Infinitely variable spindle speed and easy to read digital display
- The quills feature guided counterweights for easy handling and increased safety
- Independent hydraulic clamping: boom can be moved vertically without losing the spindle-to-bore alignment
- Drill head and column can be clamped/released together or separately with the push of a button
- A central lubrication system ensures reliable lubrication of the column
Proven performance, quality and cost-effectiveness
Technical Details
| WORKING AREA | |
|---|---|
| Drilling capacity | 62 mm |
| Tapping capacity, cast-iron | M 52 |
| Tapping capacity, steel | M 46 |
| Drilling depth (max.) | 315 mm |
| Machine table dimensions-height | 2400 mm x 1000 mm x 200 mm |
| Cube table dimensions-height | 750 mm x 500 mm x 500 mm |
| Throat | 350 mm - 1600 mm |
| Spindle nose-to-table surface distance | 350 mm - 1250 mm |
| Arm stroke (vertical) | 585 mm |
| Column diameter | 350 mm |
| TRAVELS | |
|---|---|
| Drill head travel (horizontal) | 1250 mm |
| HEADSTOCK | |
|---|---|
| Speed range | 38 1/min - 2000 1/min |
| Spindle mount | MK 5 |
| FEED | |
|---|---|
| Feeds | 0,06 mm/R - 1 mm/R |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 4 kW |
| Stroke motor | 1,5 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height)-height | 2,49 m x 1,05 m x 2,78 m |
| Weight | 3800 kg |
