Knuth KB 32 SF Column Drilling Machine. (Part No. 170461 ) High quality column drill press for industrial applications
Knuth KB 32 SF Column Drilling Machine
(Part No. 170461 )
High quality column drill press for industrial applications
Availability. Ex Stock. 4 weeks to site. Subject to no prior sales.
Highlights
The KB-S series is a reliable bench drill series for workshops and industry. The machines convince with a compact and modern design, high rigidity and excellent workmanship. These models are part of the basic equipment every mechanical workshop needs.
- Compact and powerful
- Digital speed display
- Tapping feature
- Integrated work light
- Delivered with drill chuck and vise

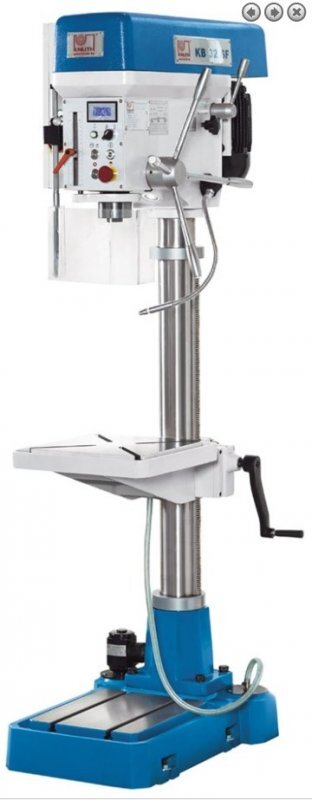

Knuth KB 32 SF Column Drilling Machine.
- Modern design, high-quality cast-iron, and excellent workmanship combined with superior rigidity, function and appearance
- Heavy, precision-ground work table with diagonal T-slots
- Very smooth height adjustment of drill table, even under high loads
- Large base plate with ground setup area and parallel T-slots
- Forward and reverse, plus automatic reversal of direction for thread cutting
- Spindle shank and spindle are hardened and ground
- Robust belt drive and quiet, powerful motor

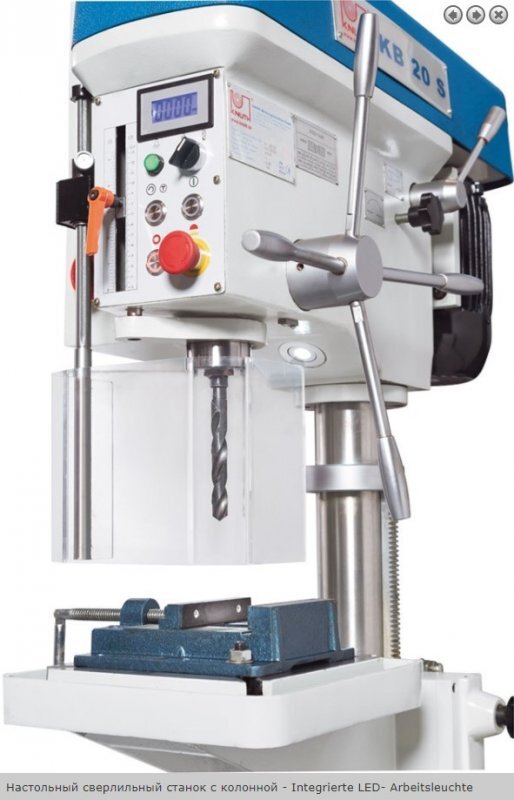

- Integrated LED work lamp is standard

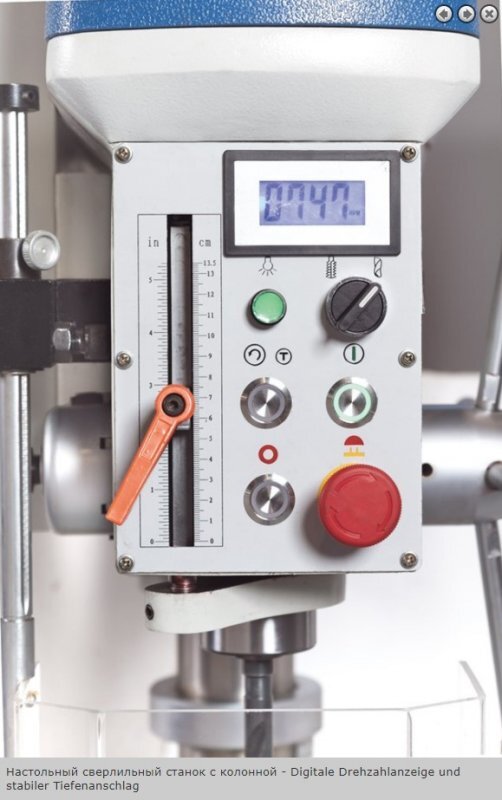

- S-series models with digital speed indicator
Technical Details
| WORKING AREA | |
|---|---|
| Drilling capacity | 32 mm |
| Tapping capacity (max.) | M 24 |
| Table set up area | 330 mm x 330 mm |
| Spindle nose-to-table surface distance | 813 mm |
| Spindle nose-to-foot distance | 1236 mm |
| Throat | 265 mm |
| Column diameter | 100 mm |
| Quill stroke | 150 mm |
| HEADSTOCK | |
|---|---|
| Speed range | 320 1/min - 1820 1/min |
| Spindle mount | 3 MT |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 1,5 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 1 m x 0,6 m x 2,1 m |
| Weight | 345 kg |
Standard Equipment
coolant system
drill chuck
tool-holder bits
drill press vise
tapping unit
operating tools
Options
Wide range of optional equipment available for this machine including
Contact us via Email for price details
