Knuth HPS 65 H Hydraulic Structural Steel Cutters ( Part No. 131182) Universal machining on up to 5 work stations: Punching-Cutting-Notching
Knuth HPS 65 H Hydraulic Structural Steel Cutters
( Part No. 131182)
Universal machining on up to 5 work stations: Punching-Cutting-NotchingAvailability, 4 weeks to site, Subject to no prior sales.

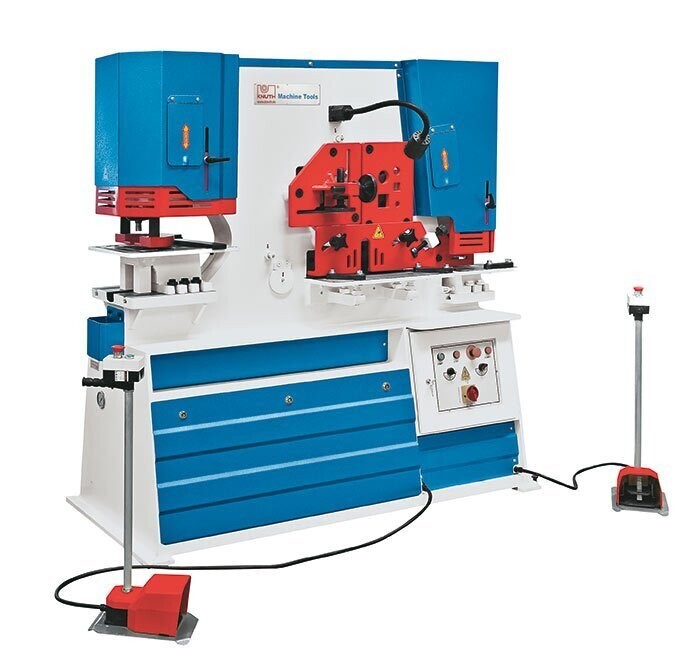

HPS 65H As shown
Highlights
HPS H Series Hydraulic Structural Steel Cutters
The hydraulic profile steel shears of the HPS H series cut and punch flat steel, rods and profiles extremely precisely and efficiently. Section steel cutters like these are mainly used in metalworking shops, repair shops and in vehicle construction. As a one- or two-cylinder construction, the construction convinces with multifunctionality. It combines flat steel shears, notcher, hole punch and profile steel shears in one machine. The hole punch of the HPS series works with common punches and matrices, which expands the range of use of the machines.
Range
HPS 45 H Rated 45 tons press force / Single Cylinder
HPS 60 H Rated 60 tons press force / Single Cylinder
HPS 65 H Rated 65 tons press force / Double Cylinder( Quoted model)
HPS 85 H Rated 85 tons press force / Double Cylinder
HPS 115 H Rated 115 tons press force / Double Cylinder
HPS 175 H Rated 175 tons press force / Double Cylinder
HPS 65 H Hydraulic Structural Steel Cutter
The hydraulic profile steel shears of the HPS H series cut and punch flat steel, rods and profiles extremely precisely and efficiently. Section steel cutters like these are mainly used in metalworking shops, repair shops and in vehicle construction. As a two- cylinder construction, this Ironworker machine convinces with multifunctionality. It combines flat steel shears, notcher, hole punch and profile steel shears in one machine. The hole punch of the HPS series works with common punches and dies, which expands the range of use of the machines.
Flat Steel Cutters
- For strip steel, flat steel, wide flat steel
- Table with angular and linear stops
- Adjustable hold-down
- Lower knife provides 4 cutting edges
Angular Profile Steel Cutters
- For angle steel sections
- Cut angle 90° and 45°
- Adjustable material guide plate
Rod Steel Station
- For round and square steel
- Robust material guide plate

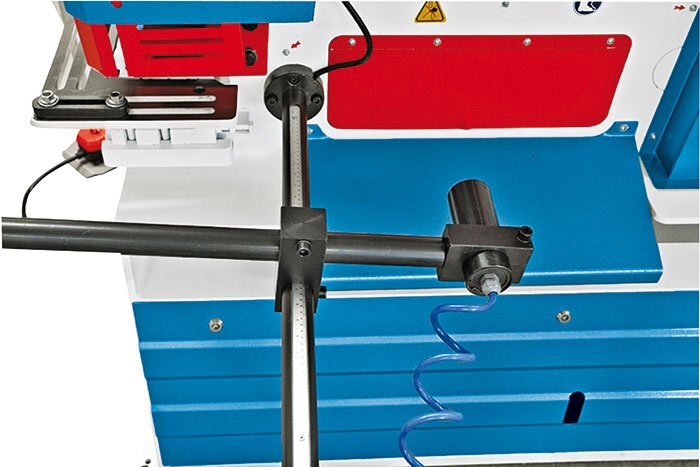

Back Gauge
- Including swivel boom
- For use on Flat Steel, Angular Steel and Rod Steel Stations
Hole Punch Station
- For punching round holes and slots in sheet metals, flat steel and U-section steel
- Table with adjustable angular stops
- Infinitely variable stroke adjustment
- Premium Kingsland tools
- Hydraulic overload protection
Notching Station
- Rigid support table with adjustable stops
Hole Punching Station
Technical Details
| WORKING AREA | |
|---|---|
| Number of hydraulic cylinders | 2 positions |
| PUNCH PRESS | |
|---|---|
| Pressure force | 65 t |
| Punch capacity (max.) | 26 mm x 20 mm |
| Diameter x thickness | 57 mm x 10 mm |
| Throat | 305 mm |
| Stroke | 55 mm |
| Stroke number (at 20 mm stroke) | 25 H/min |
| Working height | 1005 mm |
| STEEL CUTTER | |
|---|---|
| Cutting capacity flat (max. width) | 375 mm x 15 mm |
| Cutting capacity flat (max. thickness) | 300 mm x 20 mm |
| Knife length | 380 mm |
| Cutting capacity round | 45 mm |
| Cutting capacity square | 45 mm |
| Steel cutter working height | 895 mm |
| PROFILE CUTTER | |
|---|---|
| Cutting capacity 90° | 130 mm x 130 mm x 13 mm |
| Cutting capacity 45° | 70 mm x 7 mm |
| Profile cutter working height | 1130 mm |
| NOTCHER | |
|---|---|
| Plate thickness (max.) | 10 mm |
| Width | 45 mm |
| Depth | 100 mm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating hydraulic pump | 5,5 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 1,69 m x 0,77 m x 1,76 m |
| Weight | 1700 kg |
Standard Equipment
easy replaceable punch holder
stamps and dies
angle cutting blade
flat bar cutting blade
notching blade
solid bar cutting blade
Electric backgauge with automatic cutting (1.000mm)
foot pedal with emergency stop button
hook spanner wrench
work lamp
Back gauge with automatic back gauge activation
Optional Equipment
Cutting blade for UPN profiles for HPS 65 H
SKU: 253587
Contact us via email for price and delivery details of this option.
