Knuth SBS 355 Horizontal Band Saw ( Part No. 152788) High cutting capacity, compact design and quick action angle adjustment
Knuth SBS 355 Horizontal Band Saw
( Part No. 152788)
High cutting capacity, compact design and quick action angle adjustment
Ex stock availability. 1/2 weeks to site. Subject to no prior sales.
Highlights
Knuth SBS 355 Horizontal Band Saw
This universal workshop band saw is the top model of the SBS series. The saw frame of the compact machine can be swiveled to the right and left, up to a maximum of 60 degrees. The user can guide the saw frame by hand or move it by means of a feed rate controlled by a hydraulic valve. The belt speed of the SBS 355 can be controlled by an inverter. The model also has hydraulic workpiece clamping and an automatic saw frame lift after the end of the cut. This means that the machine is also suitable for efficient processing of small series.
- One-piece cast-iron saw frame
- Rigid vise with long stroke
- High cutting capacity
- Compact design
- Quick-action angle adjustment left and right
Detail

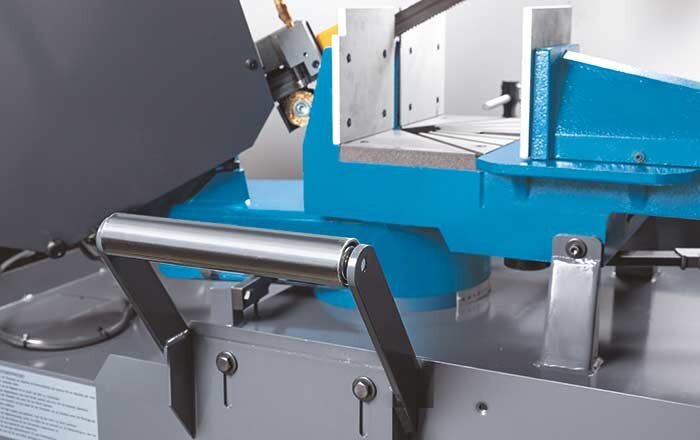

- Rigid vise with lateral slide, long stroke and long guideways in the movable jaw segments
- The one-piece cast-iron saw frame is torsion-proof and swivels 60° to the right, and 45° to the left
- Rigid saw blade guides offer a wide adjustment range for workpieces with small and large cross-sections
- The combination of carbide jaws and adjustable ball bearing guides ensure precision cuts
- A wide bi-metallic saw blade ensures additional stability during heavy machining operations
- Saw frame features manual feed for sensitive workpiece characteristics
- Hardened, polished helical gear with large bronze drive wheel for long service life
- Quiet operation, short machining times and easy handling ensure increased productivity
- Powerful motor for continuous operation
- High-capacity coolant system is included
- Includes base
- Hydraulic quick-action clamping fixture with proven performance in series production ensures constant tension to the last cut
- Infinitely variable saw blade speed for optimum machining of a wide range of materials and profiles
- Easy handling - at the end of the cut, the integrated hydraulics lift the saw frame to the home position
Technical Detail
| CUTTING CAPACITIES | |
|---|---|
| Cutting capacity 0° (round) | 355 mm |
| Cutting capacity 0° (square) | 300 mm |
| Cutting capacity 0° (flat) (length x width) | 300 mm x 530 mm |
| Cutting capacity 45° (round) L | 300 mm |
| Cutting capacity 45° (square) L | 270 mm |
| Cutting capacity 45° (round) R | 355 mm |
| Cutting capacity 45° (flat) L (length x width) | 270 mm x 270 mm |
| Cutting capacity 45° (square) R | 290 mm |
| Cutting capacity 45° (flat) R (length x width) | 290 mm x 360 mm |
| Cutting capacity 60° R (round) | 240 mm |
| Cutting capacity 60° R (square) | 170 mm |
| Cutting capacity 60° R (flat) (length x width) | 170 mm x 240 mm |
| Cutting speed | 20 - 80 (infinitely var,) m/min |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 2,2 kW |
| Supply voltage | 400 V |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 2,18 m x 0,97 m x 1,13 m |
| Weight | 805 kg |
| Saw blade dimensions | 3770 mm x 27 mm x 0,9 mm |
Standard Equipment
1 saw blade
coolant system
base
pressure gauge for saw blade tensionig
hydraulic cylinder for saw frame
inverter for infinitely variable saw blade speed
hydraulic workpiece clamping
operator instructions
Optional Equipment
Optional equipment available for this machine subject to seperate quotation.
Bi-Metal Bandsaw blade (3/4 T/") SKU: 119155
Contact Traxx Industries for price and delivery details.
