Knuth AHK M 2140 NC Press Brake ( Part No. 182642) Compact bending solution with motorised R - axis
Knuth AHK M 2140 NC Press Brake
( Part No. 182642)
Compact bending solution with motorised R- axis Current Availability, 13 weeks lead time to site, Subject to no prior sales.
Highlights
Knuth AHK M NC Press Brake Series
The AHK M series was developed as a modern, inexpensive NC alternative to CNC press brakes. Many operators are familiar with working without CNC programming and this series of models combines proven technology with modern safety standards. The backgauge in the X and R axes, as well as the depth gauge in the cylinders, can be positioned directly via the touchscreen, or bending sequences for automatic operation can be stored in the NC control. The series convinces in the production of workpieces with recurring materials and contours.
Range - Models to choose from
AHK M 1230 NC 1250 mm Brake Length , 30 Tons Force ( Currently 3 months lead time to site)
AHK M 1540 NC 1540 mm Brake Length , 40 Tons Force Currently Ex Stock, Subject to no prior sales
AHK M 2160 NC 2160 mm Brake Length , 60 Tons Force ( Currently 3 months lead time to site)
Contact us via email for price and current availability. mroberts892@btinternet.com
Knuth AHK M 2160 NC Press Brake Series
The AHK M series was developed as a modern, inexpensive NC alternative to CNC press brakes. Many operators are familiar with working without CNC programming and this series of models combines proven technology with modern safety standards. The back gauge in the X and R axes, as well as the depth gauge in the cylinders, can be positioned directly via the touchscreen, or bending sequences for automatic operation can be stored in the NC control. The series convinces in the production of workpieces with recurring materials and contours.
- stress relieved welded steel construction
- Upper beam with torsion shaft
- NC control with 7'' display
- Back gauge with X
- and R axis
- European style upper tool
Detail
Machine frame and upper beam
- The machine frame is a very precise and low-stress welded steel construction with a rigid bending beam and hydraulic cylinders on both sides
- The large overhang and a narrow table provide plenty of scope for complex bending sequences
Hydraulic system
- The hydraulic unit with tank is space-saving and stiffens the entire construction, placed at the top of the machine frame
- The exact positioning of the upper beam is ensured by a torsion shaft, which connects the depth stops of both cylinders
Front support arms
- Each support arm is easily movable, height-adjustable and stable
- A stop bar on the support surface helps to align the workpiece
Bending tools
- Promecam tool holders guarantee a comprehensive selection of bending tools
- The manual quick clamping of the tool holder shortens the changing times
- The die has 4 bending dies for a wide range of workpieces
Security and productivity
- The safety concept is based on the latest CE regulations
- Light curtains reliably protect the work area
Steering
- All functions are entered and called up directly on the touchscreen
- In manual mode, all axes can be positioned by motor and the set values are shown on the display
- In semi-automatic operation, the values entered by the operator are approached directly
- In automatic mode, programmed bending sequences are positioned automatically
- 500 data sets can be stored in memory, and programs can also be saved externally and imported again
- A data backup for the created programs is also possible according to the same principle
- In addition to a USB interface, the machine also has a network connection on the control panel

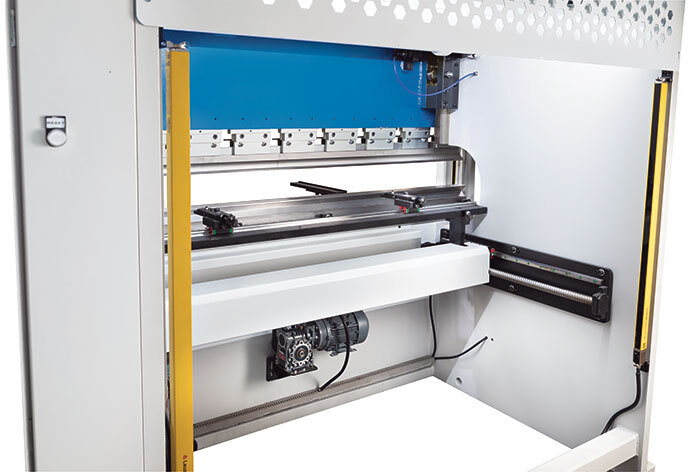

Back gauge
- The good stability of the NC-controlled back gauge is an important factor for the excellent machining precision
- The linear guides and the large dimensioned ball screws require little maintenance and are robust
- The motorized R-axis facilitates the precise adjustment of the stop height
- The lateral positioning of the stop fingers takes place on a stable, smooth-running linear guide
Technical Details
| WORKING AREA | |
|---|---|
| Throat | 320 mm |
| Pressure force | 60 t |
| Stroke | 160 mm |
| Brake length | 2100 mm |
| Distance between columns | 1700 mm |
| TRAVELS | |
|---|---|
| Travel in X-axis | 600 mm |
| FEED | |
|---|---|
| Bending speed | 10 mm/s |
| Rapid feed | 90 mm/s |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 7,5 kW |
| Motor rating X-axis | 0,75 kW |
| Motor rating R-axis | 0,25 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 2,35 m x 1,6 m x 2,23 m |
| Weight | 4340 kg |
Standard Equipment
Weintek 7'' NC control
Motorized back gauge X-axis
Motorized back gauge R-axis
European style upper tool H = 67 mm (segmented)
European style lower tool 4V
front support arms (2 pieces)
Light curtain
foot pedal with emergency stop switch
Operating instructions
Optional Equipment
Wide range of options available
Contact us via email for price and delivery details of this optional items.
