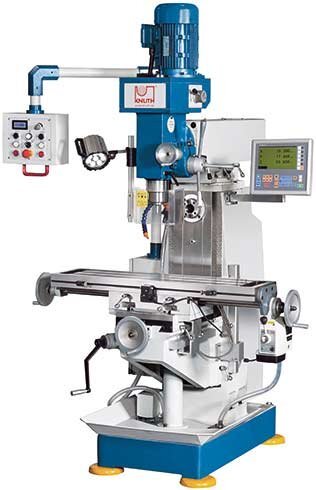

Knuth VHF 1.1 Universal Milling Machine ( Part No. 362665 ) Equipped with a horizontal spindle, a swiveling vertical milling head and a large clamping table.
Knuth VHF 1.1 Universal Milling Machine
( Part No. 362665 )
Equipped with a horizontal spindle, a swiveling vertical milling head and a large clamping table.
Availability. Currently 3/4 weeks from receipt of order. Subject to no prior sales.
Highlights
Knuth VHF 1.1 Universal Milling Machine
The versatile universal milling machine of the VHF series is equipped with a horizontal spindle, a swiveling vertical milling head and a large clamping table. Spindle speed and feed on the X-axis are infinitely variable. With its extensive equipment, this model is ideal for a wide range of applications in training departments, repair and model-making workshops.
- Universal cutter head with manual quill feed
- Horizontal milling spindle with its own drive
- Infinitely variable spindle speed
- Feed on X-axis
- Extensive standard equipment
Details
- Compact, easy to handle universal milling machine with rigid frame made of vibration-dampening cast iron
- Easy to shift back-gearing via 2-step gears integrated into the vertical cutter head, plus variable frequency for high torque at the main spindle
- Entire cutter head swivels ± 45°, quill movement via capstan handle, or quill micro-feed via hand-wheel
- Horizontal spindle features a quiet, low-maintenance v-belt drive
- Large setup table swivels horizontally
- Proven TV 1000 on X axis allows automatic advance and rapid feed of table, including infinitely variable speed and adjustable limit stops
- Coolant system and chip tray are included
Technical Details
| WORKING AREA | |
|---|---|
| Drilling capacity | 25 mm |
| Milling diameter in steel (max.) | 18 mm |
| Table set up area | 1000 mm x 240 mm |
| Table load capacity (max.) | 150 kg |
| TRAVELS | |
|---|---|
| Travel X-axis | 535 mm |
| Travel Y-axis | 160 mm |
| Travel Z-axis | 320 mm |
| VERTICAL MILLING HEAD | |
|---|---|
| Spindle speed (vertical) | 100 1/min - 2000 1/min |
| Spindle mount | ISO 40 |
| Quill stroke | 120 mm |
| Throat | 200 mm - 700 mm |
| Spindle nose-to-table surface distance | 65 mm - 385 mm |
| HORIZONTAL MILLING SPINDLE | |
|---|---|
| Spindle speed (horizontal) | 60 1/min - 1350 1/min |
| Horizontal spindle-to-table surface distance | 0 mm - 300 mm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating horizontal spindle | 2,2 kW |
| Motor rating vertical spindle | 1,5 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 1,38 m x 1,22 m x 2,15 m |
| Weight | 1000 kg |
Standard Equipment
- 3-axis position indicator X.Pos 3.2
2 long cutter arbors (Ø22,Ø27 mm)
drill chuck 16 mm
reducing sleeve ISO 40 / MT3 and ISO 40 / MT2
coolant system
work lamp
operating tools
