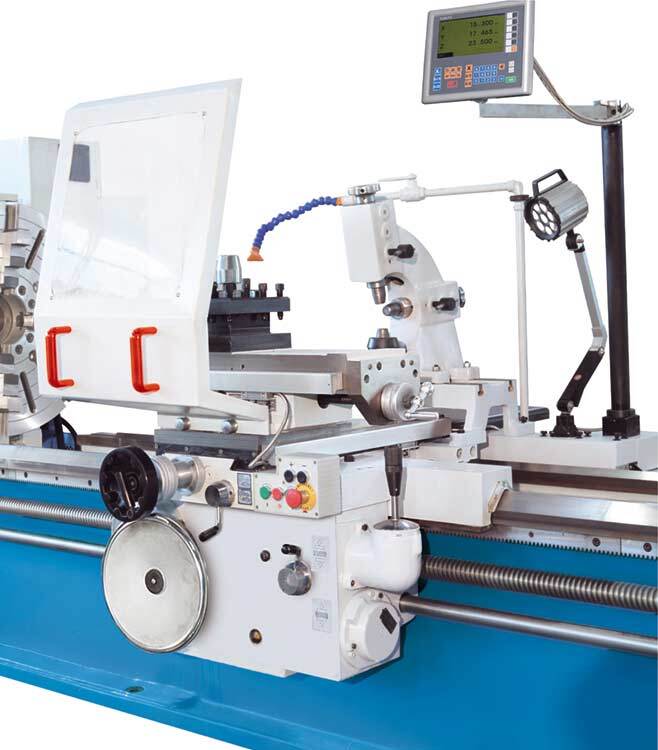

Knuth DL S 425/1500 Universal Heavy Duty Lathe ( Part No. 301510 ) Constant machining power for easy handling of heavy workpieces

Knuth DL S 425/1500 Universal Heavy Duty Lathe

( Part No.301510 )

Constant machining power for easy handling of heavy workpieces

Availability, 26 weeks lead time to site. Subject to No Prior Sales.

Highlights

Knuth DL S Universal Heavy Duty Lathe Series

The DL S lathe series is slightly smaller than the DL E Heavy, but is also designed for large turning diameters and workpiece lengths. It is the solution for conventional machining of workpieces up to 5000 mm (197 in.) in length and over 720 mm (28 in.) in diameter. The particularly wide and heavily ribbed machine bed accommodates the heavy workpiece weights. The multi-disc clutch gives the operator control over the dynamics of the spindle start-up and the rapid traverse in the support is particularly effective with large bed lengths.

• Center widths up to 5000 mm (197 in.)
• Spindle bore of 100 mm (4 in.)
• Powerful motor
• Spindle speed can be adjusted in 4 steps
• Rapid feed in Y
• and Z-direction
• Complete with assembled 3-axis position indicator

Range 8 models to choose from

DL S 425 /1500 Maximum length 1500 mm , Turning dia over bed 850 mm

DL S 425/3000 Maximum length 3000 mm , Turning dia over bed 850 mm

DL S 425 /4000 Maximum length 4000 mm , Turning dia over bed 850 mm

DL S 425 /5000 Maximum length 5000 mm , Turning dia over bed 850 mm

DL S 515 /1500 Maximum length 1500 mm , Turning dia over bed 1000 mm

DL S 515/3000 Maximum length 3000 mm , Turning dia over bed 1000 mm

DL S 515 /4000 Maximum length 4000 mm , Turning dia over bed 1000 mm

DL S 515 /5000 Maximum length 5000 mm , Turning dia over bed 1000 mm

Contact us for current availability if any of these models of interest.

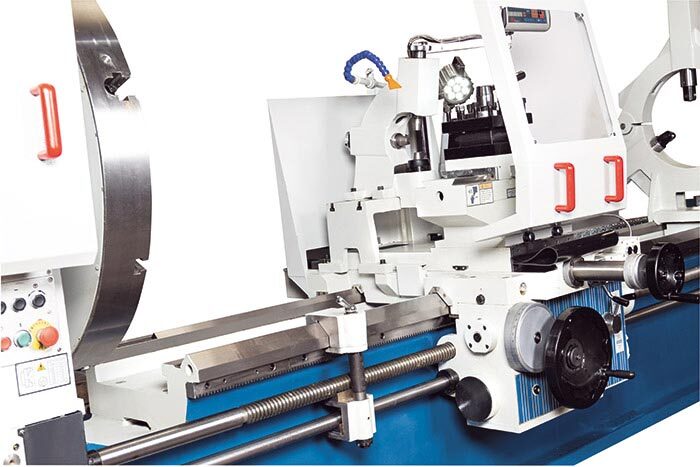

Knuth DL S 425/1500 Universal Heavy Duty Lathe

Highlights

• Extra heavy, wide machine bed with heavy ribbing and one-piece mono-block construction
• Induction-hardened and ground guide slots ensure long-term accuracy and minimum wear
• Massive headstock with high-precision main spindle on a tapered roller bearing with 100 mm spindle bore for excellent stability under heavy loads
• Very quiet operation at maximum spindle speed
• Joystick control for X and Z feeds is mounted directly to support
• Manual 4-step auxiliary gearbox, premium frequency drive technology combined with main spindle motor ratings up to 7.5 kW allow exact tuning of speed and torque for heavy-duty machining
• Rapid feed for X and Z axis allow quick support positioning and less down-time
• Adjustable overload clutch in apron protects the feed mechanics from damages and failures
• Central, practical controls for feeds and thread leads
• The auxiliary gearbox features a wide spectrum of diametric, inch, module, and metric threads
• Support and top slide are designed for high cutting forces

• More accuracy
• Lower error rate
• Increased productivity
• Resulting in valuable time savings
• For increased productivity
• Easy to read display
• Operator-specific features
• Convenient keyboard layout
• Resolution: 0.01/ 0.005 mm
• Default coordinates
• Axis position is maintained when display is turned off
• Hole circle pattern calculation
• Calculator function
• Storage for 10 tools
• Radius / diameter toggle
• Mm/inch conversion
• Easy expansion and maintenance-free operation
• Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes

Technical Details

Standard Equipment

3-axis position indicator
4-jaw-faceplate chuck Ø 800 mm
4-station tool holder
dead centers
reducing sleeve
protective shield for support
chuck guard
coolant system
foundation bolts
work lamp
operating tools
operator instructions

Optional Equipment

Optional equipment available as follows

Contact us by email if any optional equipment is of interest

Operator Training

Operator training available in showroom subject to quotation

prior to delivery. Email us to outline your needs.

Shipping

Fully inclusive shipping rates covering transportation, import customs documentation, duties

quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands

and other remote sites should seek advice prior to order via email. Clients will be responsible for

their own site offload and siting at point of use.

Finance Availability

Looking to finance your equipment?

We have access to a variety of funding sources who will look sympathetically

at requests for funding finance.

These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.

The financial services division of Siemens will consider HP on the investment. Subject to Status.

On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.

We will confirm this with you at time of order.
