Knuth GSM 20 Tap Grinder ( Part No. 112810 ) Tap Grinder for grinding HSS and carbide taps

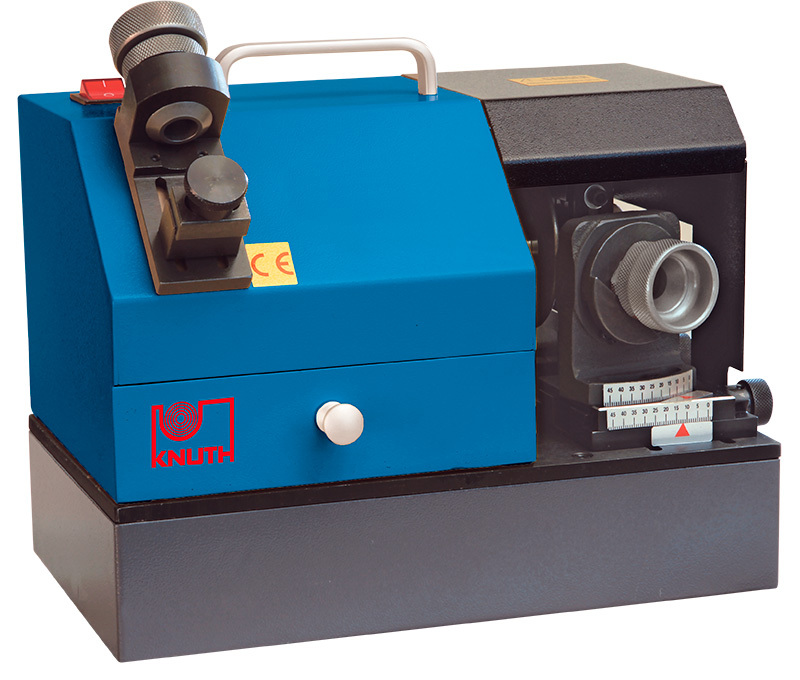

Knuth GSM 20 Tap Grinder
( Part No. 122810 )
Tap Grinder for grinding HSS and carbide taps
Ex Stock Availability .Delivery currently 2 weeks from receipt of order.
Highlights
Tap Grinder for grinding HSS and carbide taps. The point angle is adjustable from 5° to 30° and suitable for taps with 2, 3 and 4 flutes.
- Equipped with grinding wheel
- Standard delivered with 6 collets
- Portable version
- Extended grinding capacities
- Easy to use
Product Details
Knuth GSM 20 Tap Grinder
- Portable tab grinder for tap sizes M5 to M20
- Suitable for taps with 2, 3, and 4 flutes
- To maintain good surface quality
- To maintain dimensional stability of threads
- To prevent tool breakage due to increasing cutting forces
Regular regrinding is recommended for the following reasons:
Technical Details
| WORKING AREA | |
|---|---|
| Grinding area | M5 - M20 |
| Point angle | 5 deg - 30 deg |
| Speed | 5300 1/min |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 0,18 kW |
| Supply voltage | 220 V |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 0,35 m x 0,23 m x 0,27 m |
| Weight | 12 kg |
Optional Equipment
Diamond cutting wheel for GSM 20
SKU: 112811
