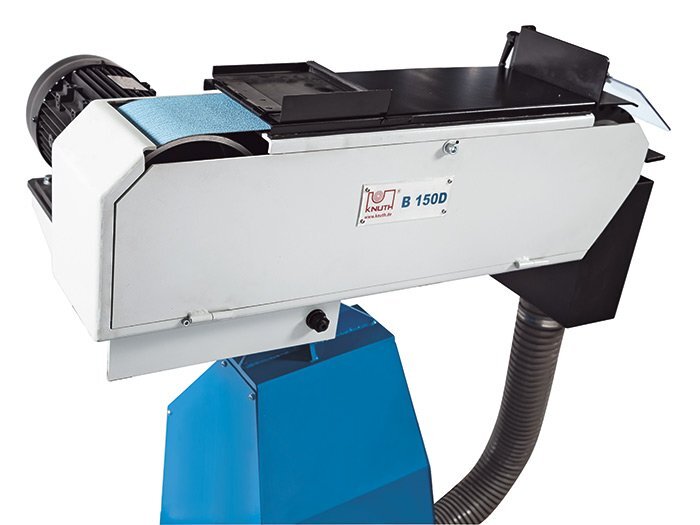

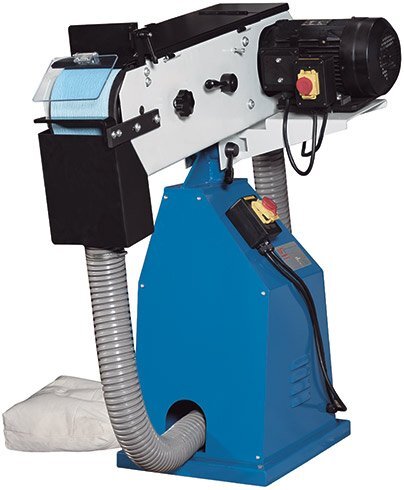

Knuth B150 D Belt Sander ( Part No. 102887 ) Industrial Belt Sander for surface edge and radii grinding
Knuth B150 D Belt Sander
( Part No. 102887 )
Industrial Belt Sander for surface edge and radii grinding
Ex Stock Availability .Delivery currently 2 weeks from receipt of order.
Highlights
The heavy belt grinder has a large grinding surface with an endless grinding belt that runs over a large contact roller. The angle of the grinder can be adjusted horizontally and connected to a dust extraction system via a nozzle. This belt grinder series has a particularly powerful main drive, ideal for grinding flat and straight surfaces or for chamfering and deburring edges. The contact roller is also ideal for grinding outer and inner radii or angles on narrow workpiece ends.
- For precision grinding of tube unions
- Contact roll for grinding of shaft ends
- Longitudinal grinding surface for deburring
- Suitable for stainless steel and aluminum
- Ready for vacuum exhaust connection
Product Detail
- Excellent grinding results due to minimal vibration during sanding belt operation and rigid design of all components
- The wide contact roll is ideal for grinding edges, points and radii
- Adjustable grinding support with adjustable eye protection for maximum accuracy and safety
- One cover encloses the longitudinal grinding surface while it is not in use
- Grinding belts can be changed within seconds via a quick-change vise, no tools required
- Chip collectors help keep the work environment clean
- The B150 D belt sander features a base with integrated vacuum exhaust
Technical Details
| WORKING AREA | |
|---|---|
| Contact wheel | 200 mm x 150 mm |
| Sanding area | 530 mm x 150 mm |
| Belt speed | 33 m/s |
| Speed | 2800 1/min |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 4 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Driving roller (dimensions) | 225 mm x 150 mm |
| Overall dimensions (length x width x height) | 1,05 m x 0,62 m x 1,27 m |
| Weight | 135 kg |
Standard Equipment
base
1 sanding belt
vacuum exhaust
safety observation shield
operator instructions
Optional Equipment
Sanding belts
- Metal grinding wheel with high chip-removal rate for flat surface and light contour grinding
- Universal use in various fields of metalworking
- Cost-effective machining and long tool life due to highly resistant corundum
- Medium flexible cotton layer on X for smooth machining operation
- Consistently uniform grinding pattern
