Knuth KSB Series Box Column Drill Press Superior rigidity for drilling, reaming and thread cutting tasks
Knuth Box Column Drill Press
Superior rigidity for drilling, reaming and thread cutting tasks
Availability. Ex Stock. 2/3 weeks to site. Subject to no prior sales.
Featured Model KSB 50C Box Column Drill Press
Highlights
KSB Series Box Column Drill Press
The box column drilling machines of the KSB series are the heavyweights among column drilling machines. Their unwavering stability enables superior performance in demanding applications. Nothing vibrates here. Nothing bends here. Finely stepped spindle and feed gears provide the correct machining parameters for large bores. The table and head can be adjusted on the column and cannot be swiveled, which provides an additional advantage in terms of stability.
- Extremely rigid box-column design
- Table and drill head can be moved individually
- High torque and drilling capacity
- Powerful automatic feed
- Includes thread cutting unit
Models Available
KSB32A Drilling Capacity 32 mm Spindle speeds (9) 50 -2000 1/min
KSB 40B Drilling Capacity 40 mm Spindle Speeds (12) 31.5 -1400 1/min
KSB 50C Drilling capacity 50 mm Spindle Speeds (9) 45 - 850 1/min ( Featured Model)

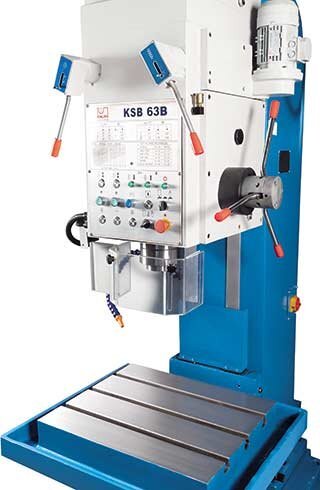

KSB 63B Drilling Capacity 63 mm Spindle Speeds (9) 40-570 1/min

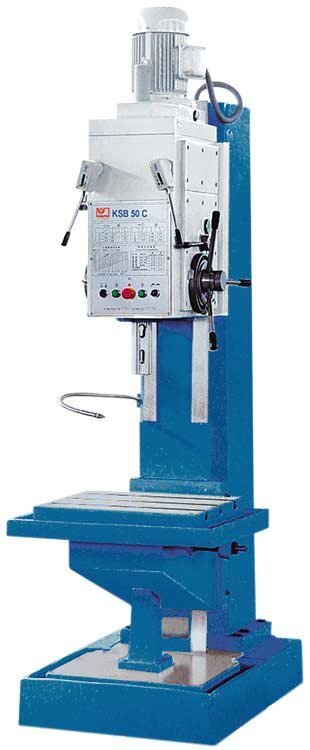

Knuth KSB 50C Box Column Drill Press
- Box-column design provides high load capacity, and is torsion-proof and rigid
- Table and drill head can be moved individually for an optimum machining height
- 9-step feed and speed gears, with oil-bath lubrication
- High torque across the entire speed range
- Thread-cutting unit automatically reverses upon reaching the preset depth
Technical Details
| WORKING AREA | |
|---|---|
| Drilling capacity | 50 mm |
| Feed force, axial (max.) | 16 kN |
| Throat | 335 mm |
| Vertical head travel | 195 mm |
| Quill stroke | 250 mm |
| Feed Z-axis | 0,056 mm/R - 1,8 mm/R |
| Spindle nose-to-table surface distance | 725 mm |
| Table stroke | 315 mm |
| T-slots, width | 18 mm |
| Number of T-slots | 3 positions |
| HEADSTOCK | |
|---|---|
| Spindle torque (max.) | 350 Nm |
| Spindle mount | MK 5 |
| Spindle speed | 45 1/min - 850 1/min |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 4 kW |
| Motor rating coolant pump | 0,09 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Flow rate | 25 l/min |
| Overall dimensions (length x width x height) | 1,04 m x 0,91 m x 2,54 m |
| Weight | 1250 kg |
Standard Equipment
coolant system
tapping unit
LED work lamp
operating tools
operator instructions
Optional Equipment
Direct indexing head S 200 SKU: 110966
