Knuth KMT B 2554 NC Guillotine Shear ( 2550 mm width x 4 mm maximum plate thickness cut) ( Part No. 133650) Motorised Swing Beam Shears with a controlled back gauge
Knuth KMT B 2554 NC Guillotine Shear ( 2550 mm width x 4 mm maximum plate thickness cut)
( Part No. 183650)
Motorised Swing Beam Shears with a controlled back gauge
Highlights

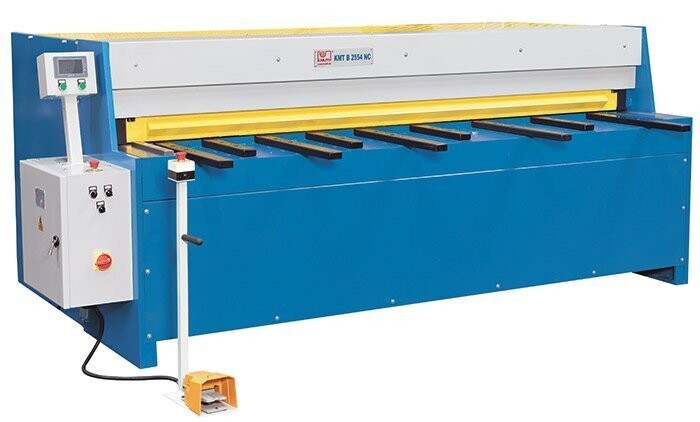

Knuth KMT B 2554 NC Guillotine Shear
Machine Frame and Drive System
- The machine frame is made of a robust steel weldment treated with stress-relief annealing
- An automatic hold-down fixates the plate during cutting
- The double-edged upper and lower knives can be rotated and reused
Material Support
- The rigid side angle stop simplifies alignment of the plate to the cut line
Operation and Ergonomics
- The PLC back-gauge control with 4.3" touchscreen features a user-friendly graphic interface for quick and easy programming
- The mobile control unit features a foot switch, so the operator has both hands free
Back Gauge
- The back gauge is driven by a servo motor, which significantly improves positioning and repeatability accuracy
- A plate hold-up fixture prevents any overhang of the plate in front of the back gauge to ensure maximum accuracy and quality of every cut, even in thin plates
- Support arms are positioned via an air cylinder and lowered in sync with the cutting process
Technical Details
| WORKING AREA | |
|---|---|
| Structural steel plate thickness | 0,8 mm - 4 mm |
| Working length | 2550 mm |
| Cutting angle | 1,8 deg |
| Strokes per minute (automatic mode) | 30 H/min |
| Knife length | 2570 mm |
| Work table height | 830 mm |
| Support arms | 600 mm |
| Number of support arms | 5 positions |
| BACK GAUGE | |
|---|---|
| Rear stop | 630 mm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 7,5 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 3,05 m x 1,87 m x 1,26 m |
| Weight | 2500 kg |
Standard Equipment
pcl control
work lamp
safety guard with power off after open door
Back gauge with 4,3" Touchscreen
foot pedal
cut-line lighting
lateral stop
Support arms with material support balls
powered rear stop
hold-down
pneumatic sheet hold-up device
Safety cover Working area Backgauge
operator instructions
