Holzmann BBM35MANN 230V Hinge Slot Drilling Machine ( Unit optionally available with BBM35MS machine stand)
£549.99
In stock
Product Details

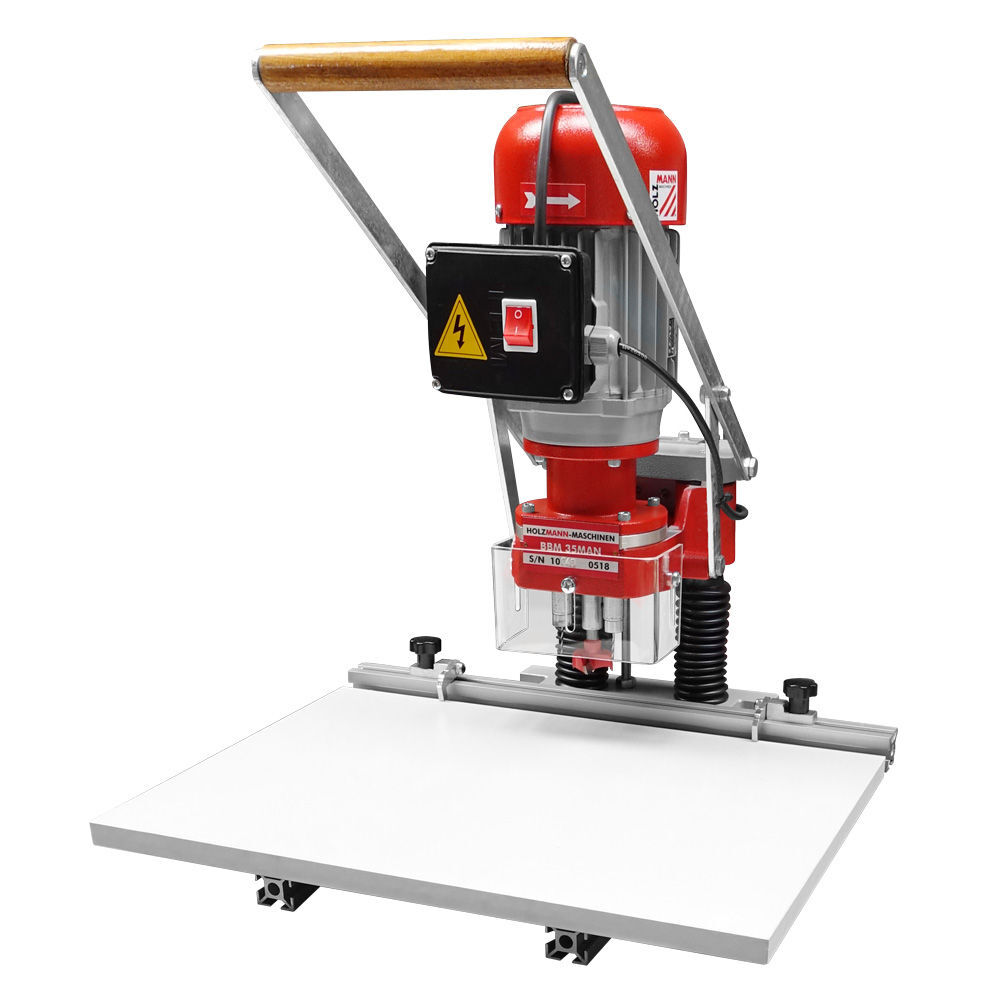

Holzmann BBM35MANN 230V Hinge Slot Drilling Machine
( Unit optionally available with BBM35MS Machine Stand)
Highlights
Holzmann BBM35MANN 230V Hinge Slot Drilling Machine
Manual feed Holzmann BBM35MAN bench hinge slot mortise machine. Specially designed for recessing circular hinges in Kitchen cupboard and wardrobe doors. Features include a powerful 750W motor, large 500 x 300mm (LxW) laminated MDF worktable, and 80mm spindle to table distance. This useful bench slot mortiser will drill hinge slots 35mm Ø for hinge with pilot drills set at 45mm centres and 9.5mm from hinge centre, with a max. plunge cutting stroke 20mm deep. Drilling pattern Blum, conversion to Hettich Drilling pattern with optional Hettich head possible. Ideal for ambitious hobby craftsmen and small businesses.
hardware drilling machine with a manual feed

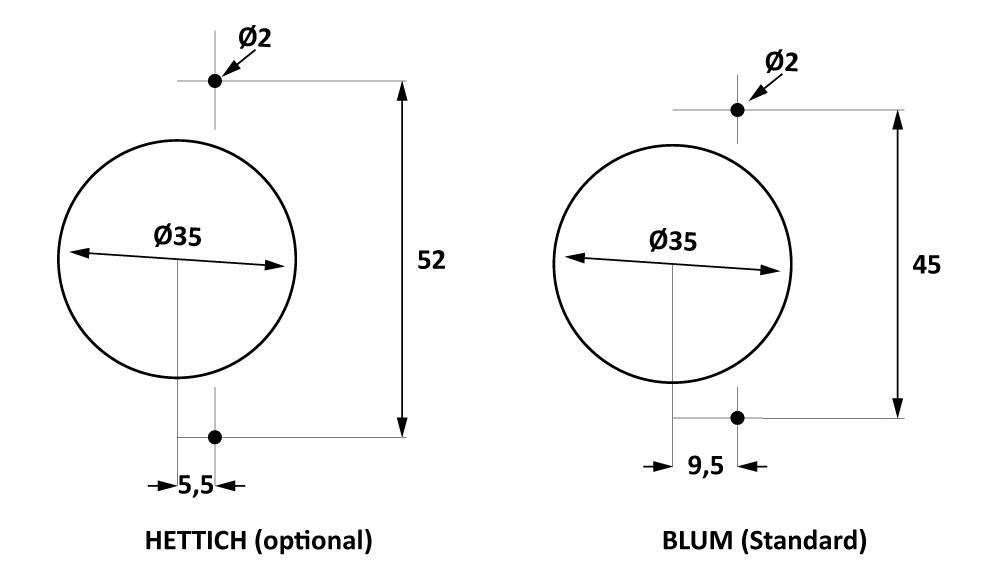

- drilling pattern Blum, conversion to Hettich Drilling pattern with optional Hettich head possible
- ideal for ambitious hobby craftsmen and small businesses
- Diameter hinge cutter 35 mm
- Diameter side drills 2 mm
Technical Details
motor power s1 in W 750
voltage 230V 50Hz
speed in min-1 2800
measurements
table size in mm 500×350
workpiece measurements
min. workpiece length in mm 180
technical specification
max. distance spindle-table in mm 80
drilling wood
max. drilling depth in mm 20
weight
gross weight in kg 22
net weight in kg 20
packaging
packaging width in mm 0,550
packaging length in mm 0,550
packaging height in mm 0,550
general data
EAN code 9120058376931
motor power s1 in W 750
voltage 230V 50Hz
speed in min-1 2800
measurements
table size in mm 500×350
workpiece measurements
min. workpiece length in mm 180
technical specification
max. distance spindle-table in mm 80
drilling wood
max. drilling depth in mm 20
weight
gross weight in kg 22
net weight in kg 20
packaging
packaging width in mm 0,550
packaging length in mm 0,550
packaging height in mm 0,550
general data
EAN code 9120058376931
Optional

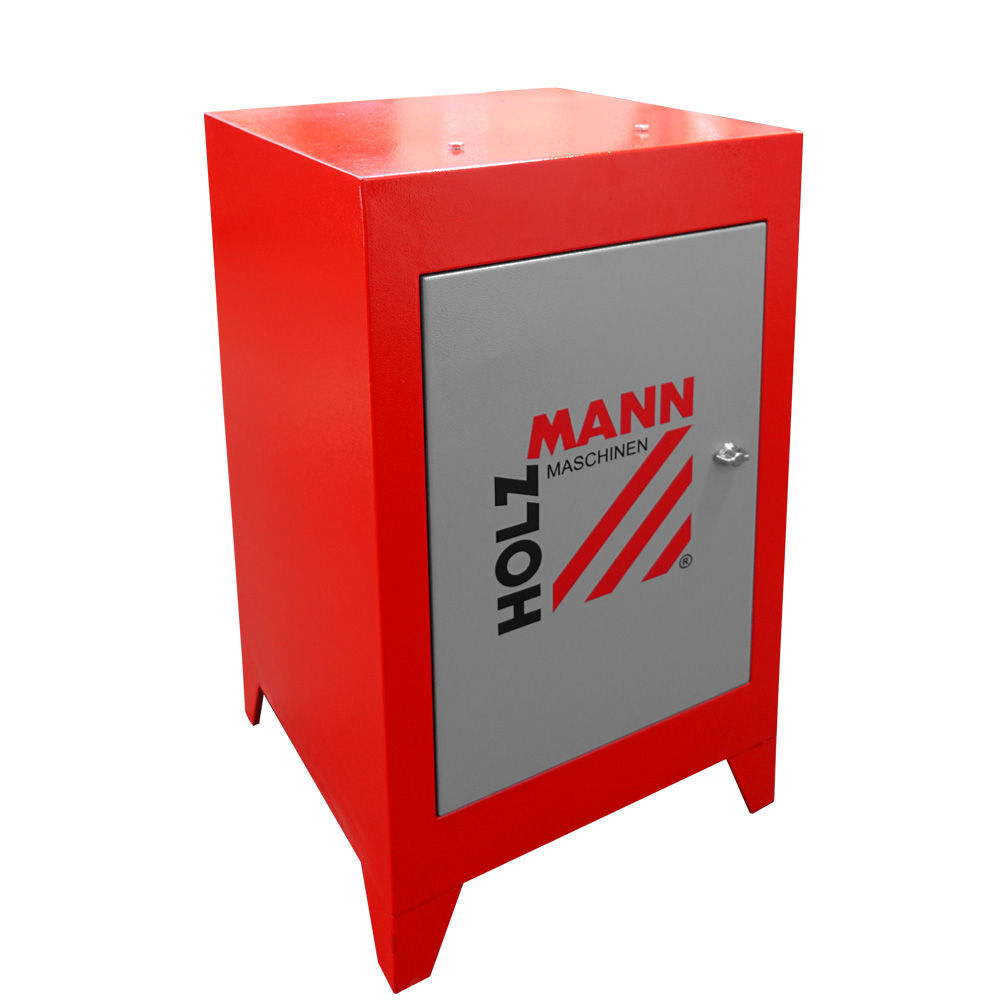

BBM35MS Machine Stand
Highlights
- Machine stand suitable for BBM35MAN and BBM35PNEU
- locker with tray
- Machine stand suitable for BBM35MAN and BBM35PNEU
- locker with tray
Technical Details
measurements
total dimensions in mm 900x500x500
weight
gross weight in kg 32
net weight in kg 27
packaging
packaging width in mm 0,500
packaging length in mm 0,500
packaging height in mm 0,900
general data
EAN code 9120058377006
measurements
total dimensions in mm 900x500x500
weight
gross weight in kg 32
net weight in kg 27
packaging
packaging width in mm 0,500
packaging length in mm 0,500
packaging height in mm 0,900
general data
EAN code 9120058377006
The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
