Evolution R185CMS-Li Loaded Inc 4Ah Battery / Single Charger / MP Blade 088-0001A
Evolution R185CMS-Li Loaded Inc 4Ah Battery / Single Charger / MP Blade
088-0001A
Highlights

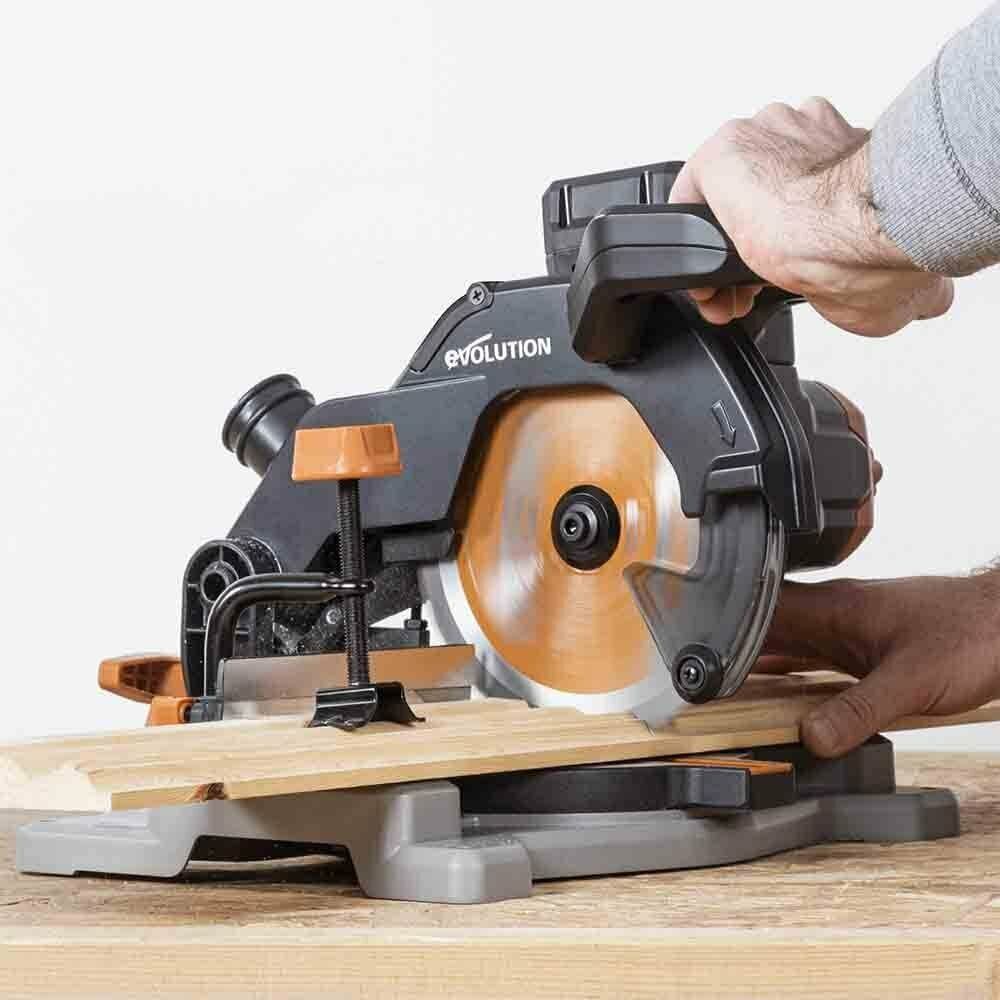

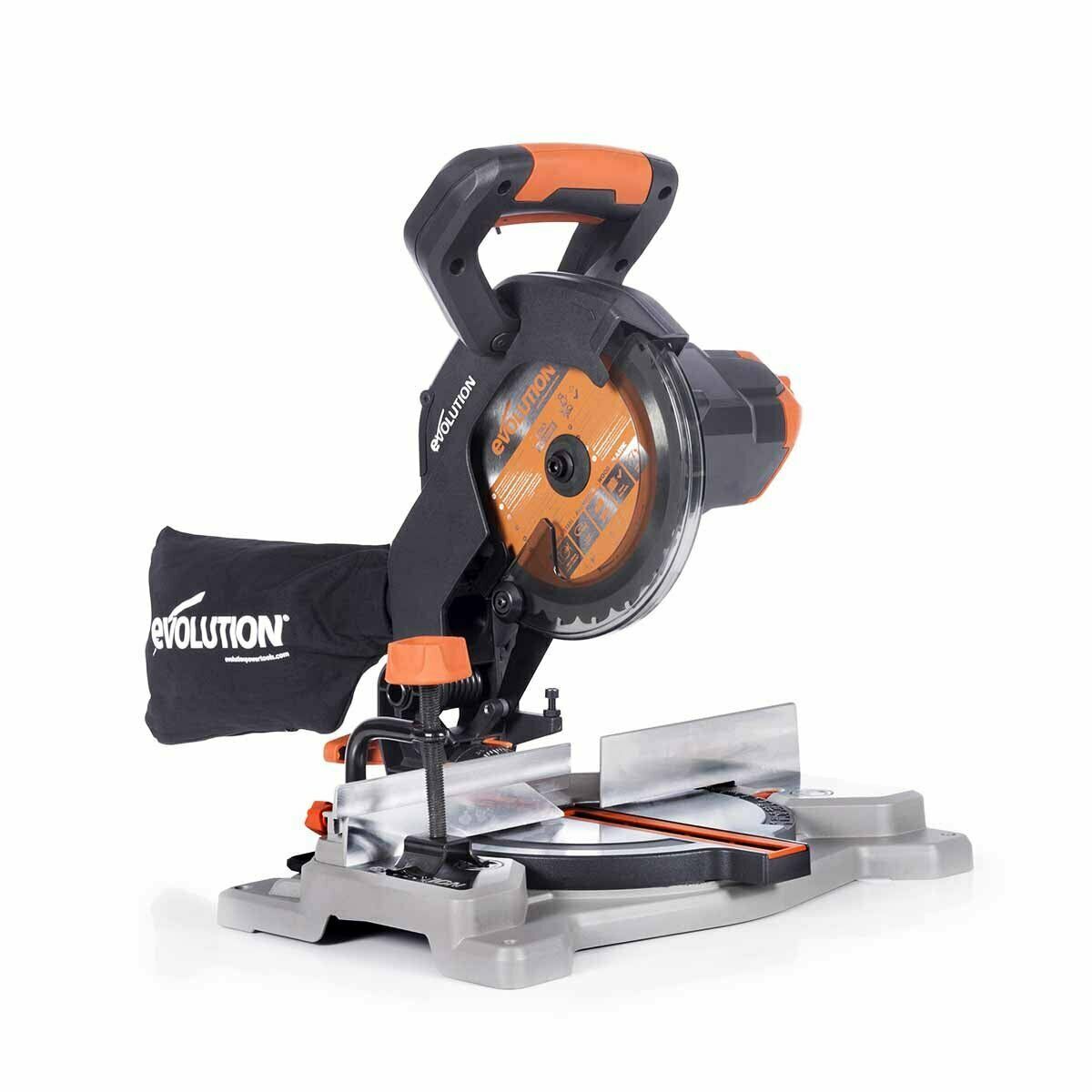

The Evolution R185CMS-Li Cordless Compound Mitre Saw delivers precise cuts in new and reclaimed wood, plastics, composites and metals. Its powerful motor, accuracy and long run times make it the perfect tool for worksite and workshop use and its compact size and Multi-Material blade technology make it ideal for any home project.
The R185CMS-Li 18V Li-ion Cordless Compound Mitre Saw is packed with features; Multi-Material cutting technology, dust collection bag & vacuum attachment port, it's large 105mm x 45mm cross-cut capacity and Mitre & bevel capability provide real versatility. Easy accurate set-up and precision repeatable cuts come as standard with the R185CMS-Li delivering measure once cut once accuracy. Clean and accurate cuts through new and reclaimed wood as well as cool to the touch, burr-free cuts through mild steel and non-ferrous metals are easy the with the supplied Multi-Material blade.
Powered by Evolution?s 18V EXT Li-Ion battery system the R185CMS-Li delivers long run times and has the power to cut wood plastics, composites and metals with our Multi-material blade technology.
The loaded version is bundled with our R18BAT-Li4 4Ah battery pack and R18RCH-Li Single Port Rapid Charger which will take you from zero to fully charged in only 50 minutes . All of Evolutions EXT Cordless Li-ion power tools are compatible with all EXT batteries, so you can share across multiple tools for maximum versatility.
If you want a powerful, versatile, compact and full-featured Cordless Compound Mitre Saw which can cut any material anywhere the R185CMS-li is a cut above the competition.
- EXT Li-ion cordless performance and versatility
- High Power 850W Brushed DC motor
- Optimised drivetrain, maximum battery run time
- 50 Minute charge time with 4Ah battery.

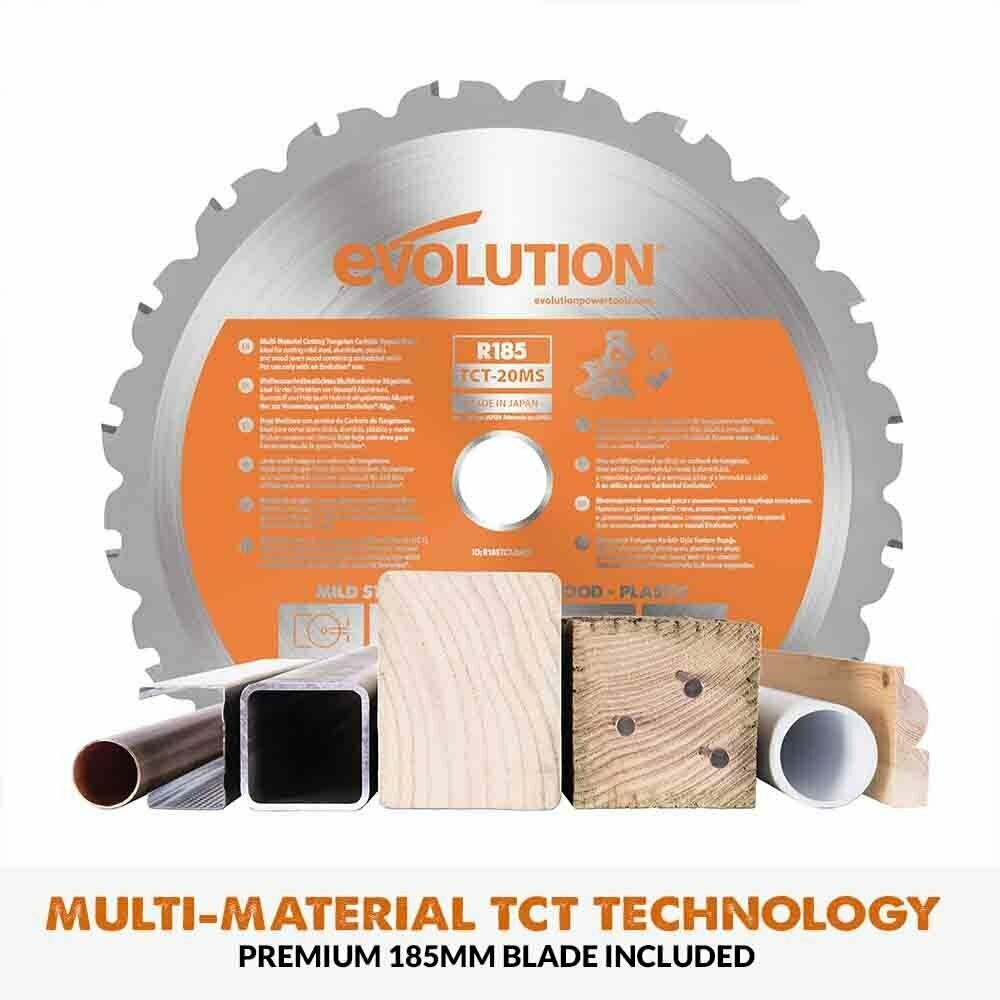

- Multi-Material: premium Japanese Tungsten Carbide Tipped TCT blade, cuts wood, metal, plastic composites and more
- Accurate, repeatable Bevel, Mitre & Compound cuts
- Cast alloy base, trade tough build.
- Ergonomic ambidextrous handles for easy control
- Split Rear Fence For Compound cuts
- Soft Start & Electronic Blade Brake For Safety
- Vacuum compatible dust extraction
- Dust Bag included
- Integrated Cary Handles
- 3-Year limited warranty**
- Erbauer EXT battery system compatible
Technical Details
| Name | R185CMS-LI |
| Product Code | 088-0001 |
| Voltage / (Hz) | 18v -50Hz |
| Power | 850W |
| No Load Speed (min-1 rpm) | 4200rpm |
| Blade Size | 185mm |
| Blade Bore | 20mm |
| Net Weight | 5.9kg / 7.5kg |
| Dust port Adaptor Size | 35mm |
| Tool Dimensions | 278 x 426 x346mm |
| Cutting Capacity | |
| Mild steel Plate - Max Thickness | 6mm |
| Mild Steel Max Wall Thickness | 3mm |
| Wood max Section | 45 x 105mm |
| Minimum Size Workpiece (smaller pieces require support) | 125 x 30 x 3mm |
| 0º Mitre x 0º Bevel | 105 x 45mm |
| 45º Mitre x 0º Bevel | 75 x 45mm |
| 0º Mitre x 45º Bevel | 105 x 38mm |
| 45º Mitre x 45º Bevel | 75 x 38mm |
| Mitre Range | 45° - 45 ° |
| Bevel Range | 0 ° - 45° |
| Blade Diameter | 185mm |
| Bore Diameter | 20mm |
| No of Teeth | 20T |
| Kerf | 1.7mm |
| Sound pressure level Lpa | 82.4db (A); K=3db (A) |
| Sound power level Lwa | 95.4 db (A); K=3db (A) |
| Uncertainty | 3db (a) |
Product supplied with battery and charger.
Evolution Warranty
Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty
with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
