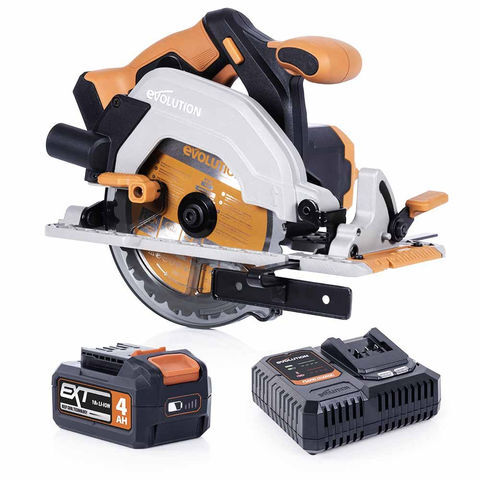

Evolution R165CCS-Li Cordless 165mm Circular Saw 18V Li-Ion EXT & Multi-Material Blade - 4.0Ah Battery & Rapid Charger 066-0001A
Evolution R165CCS-Li Cordless 165mm Circular Saw 18V Li-Ion EXT & Multi-Material Blade - 4.0Ah Battery & Rapid Charger
066-0001A
Highlights
The Evolution R165CCS-Li Cordless Circular Saw delivers precise cuts in new and reclaimed wood, plastics, composites and metals. It’s powerful motor, accuracy and long run times make it the perfect tool for worksite and workshop use and its compact size and Multi-Material blade technology make it ideal for any home project.
The R165CCS-Li 18V Li-ion Cordless Circular Saw is packed with features; Multi-Material cutting technology, dust collection bag & vacuum attachment port, its best in class 55mm adjustable depth of cut and 0-50° bevel capability provide real versatility. Our innovative Shadow Line LED cutting guide perfectly projects the blade kerf onto the cutting surface for measure once cut once accuracy. Clean and accurate cuts through new and reclaimed wood as well as cool to the touch, burr free cuts through mild steel and non-ferrous metals with the supplied Multi-Material blade.
Powered by Evolution’s 18V EXT Li-Ion battery system the R165CCS-Li delivers long run times and has the power to cut wood plastics, composites and metals with our Multi-material blade technology. The loaded version is bundled with our R18BAT-Li4 4Ah battery pack and R18RCH-Li Single Port Rapid Charger which will take you from zero to fully charged in only 50 minutes. All of Evolution’s EXT Cordless Li-ion power tools are compatible with all EXT batteries, so you can share across multiple tools for maximum versatility.
If you want a powerful, versatile, cordless Circular Saw with best in class adjustable cutting depth, 0-45º bevel cutting ability and ready to cut any material anywhere the R165CCS-Li is a cut above the competition.
Technical Details
| Name | R165CCS-LI |
| Product Code | 066-0001 |
| Voltage / (Hz) | 18v -50Hz |
| Power | 850W |
| No Load Speed (min-1 rpm) | 4600rpm |
| Net Weight | 3.4kg |
| Dust port Adaptor Size | 30mm |
| Maximum Bevel Capacity (degrees) | 45 ° |
| Cutting Capacity | |
| Max Cutting Thickness (plate) | 3mm |
| Max Wall Thickness | 3mm |
| Max 90 degree | 55mm |
| Max 45 Degree | 38mm |
| Max 50 degree | 32mm |
| Blade Specifications | |
| Blade Diameter | 165mm |
| Max Speed (min-1 rpm,) | 5200rpm |
| Bore Diameter | 20mm |
| Kerf | 1.7mm |
| Noise & Vibration Data | |
| Sound pressure level Lpa | 87.2 db (A); K=3db (A) |
| Sound power level Lwa | 92 db (A); K=3db (A) |
| Vibration | ah,w=2,302m/s2 Main Handle |
| ah,w=2,218m/s2 2nd Handle |
Evolution Warranty
Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty
with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
