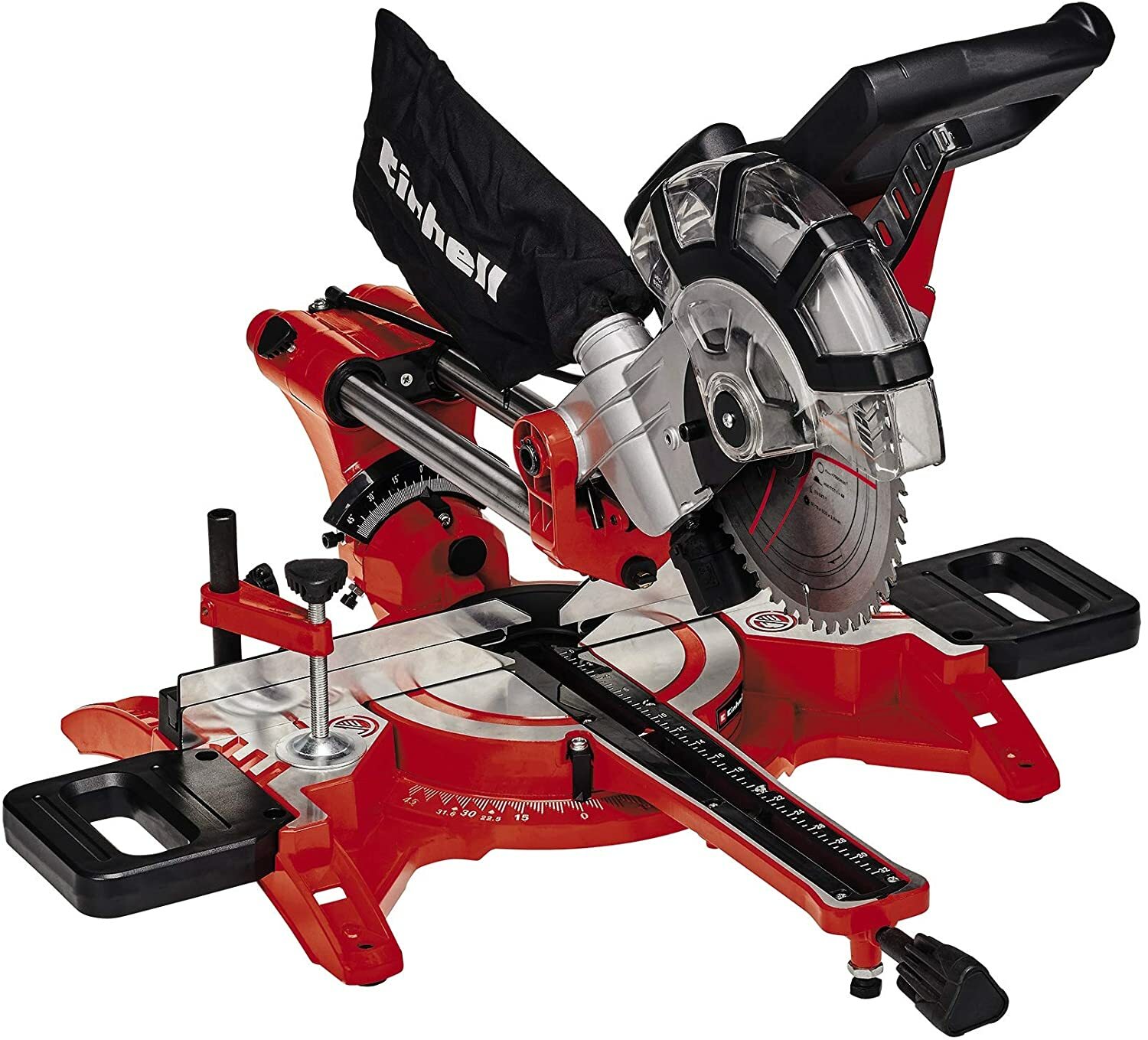

Einhell TC-SM 21311 Dual Sliding Mitre Saw
Einhell TC-SM 21311 Dual Sliding Mitre Saw
Highlights
- Integrated drag function for wide workpieces
- Turntable with precise angle setting for angular cuts
- Saw head tilts to the left and right for mitre cutting
- Includes laser (mains-powered) for precise guidance while cutting
- Supports for sawing long workpieces on both sides
- Workpiece stop with rails adjustable to the left and right
- High-grade carbide-tipped precision saw blade
- Clamping device for holding the workpiece securely in position
- Includes sawdust bag to keep the workplace clean
- Dust funnel behind saw blade to remove sawdust more effectively
The TC-SM 2131/1 Dual is a drag, crosscut and mitre saw for cutting wood, laminated panels and plastic. The saw head can be tilted continuously to the left and right for high flexibility in setting mitres on two sides. An integrated, mains-powered laser marks the cutting line, enabling the workpiece to be positioned quickly and exactly. The high-quality turntable of the TC-SM 2131 Dual comes with an exact angle adjustment facility for angular cuts which can be latched single handedly in various positions. The integrated drag function enables you to cut particularly wide workpieces. Workpiece supports on two sides, a clamping device for reliable securing of the workpiece and a workpiece stop with rails that adjust to the left and right enable safe, precise operation. The table insert is equipped with a practical scale for reading off the workpiece width. The high-grade carbide-tipped precision saw blade guarantees clean, powerful cutting results. The sawdust bag keeps the workplace clean, while the dust funnel behind the saw blade is another big step up in the effectiveness of sawdust removal. A transport brace is provided for easy and safe mobility.
Technical Details
| Technical data | |
|---|---|
| Mains supply | 220-240 V | 50 Hz |
| Power | 1500 W |
| Number of saw teeth | 48 Pieces |
| Max. power (S2 | S2time) | 1800 W | 5 min |
| Idle speed | 4900 min^-1 |
| Saw blade | 210 mm x 30 mm |
| Mitre cut | 45 ° - 45 ° |
| Swiveling range | 47 ° - 47 ° |
| Cutting width 90° x 90° | 310 mm x 62 mm |
| Cutting width 90° x 45° | 210 mm x 62 mm |
| Cutting width 45° x 90° | 310 mm x 36 mm |
| Cutting width 45° x 45° | 210 mm x 36 mm |
| Diameter of suction adapter | 36 mm |
| Length | 717 mm |
| Width | 455 mm |
| Height | 393 mm |
| Logistical data | |
|---|---|
| Product weight (kg) | 11 |
| Gross weight (kg) | 14.2 |
| Dimensions single packaging | 717 mm x 455 mm x 393 mm |
Warranty
Einhell warranty their products for a 2 year period from purchase.
