Einhell Table Saw TC-TS 2025/2 U 230v

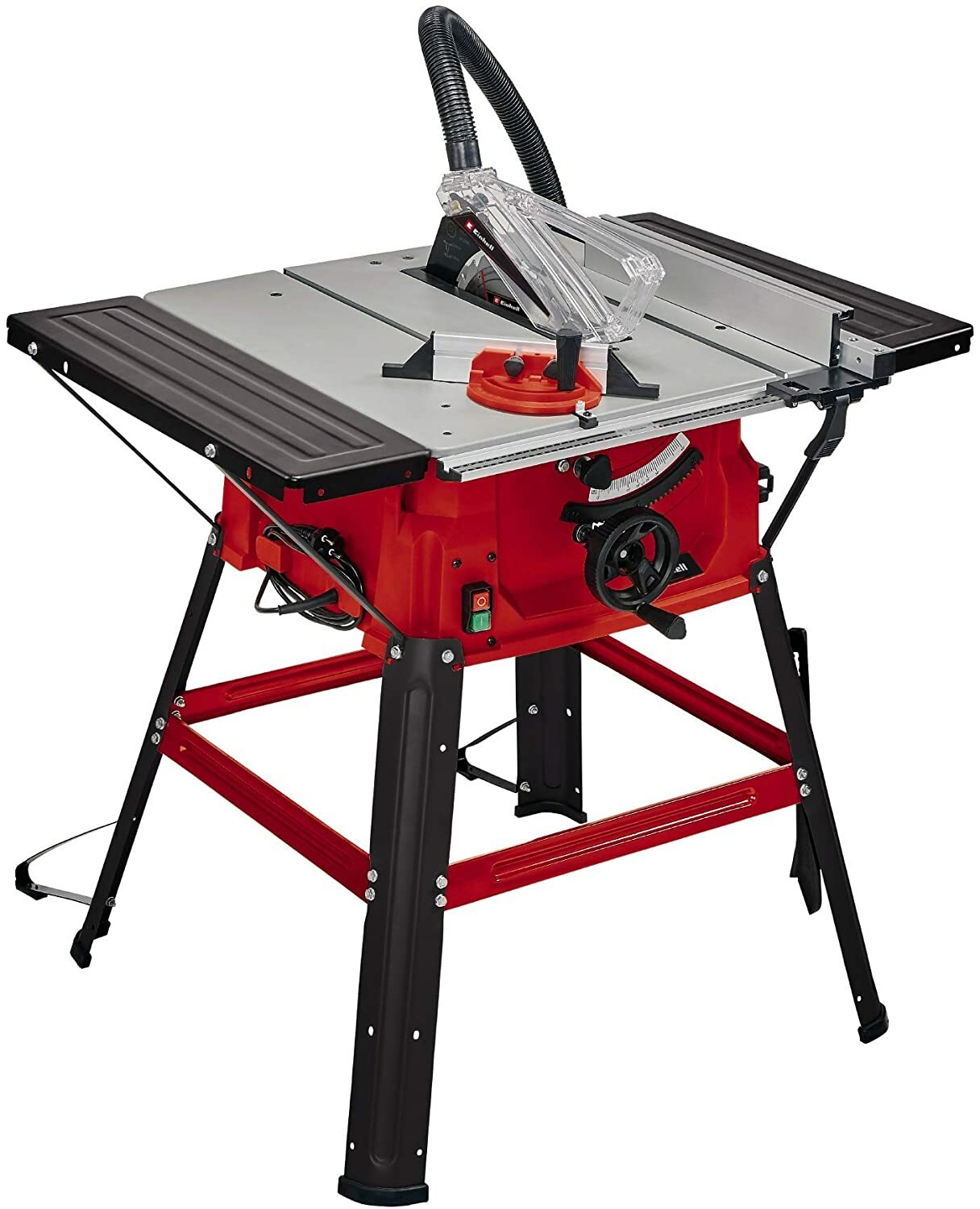

Einhell Table Saw TC-TS 2025/2 U
Highlights
The Einhell bench-type circular saw TC-TS 2025/2 U saw is a powerful device with which enables ambitious DIY enthusiasts to work with solid wood, fiberboard and many other similar materials. It is supplied with a carbide-tipped precision saw blade, the height and angle of which can be adjusted by one hand easilly using the 2in1 saw blade adjustment. The improved parallel guide makes it easy to realize perfect longitudinal cuts, while the cross stop and the tiltable saw blade are perfect for mitre cuts. The table extensions enlarge the surface additionally. The dust extraction at the housing and at the saw blade cover help for cleaning the air. For all included tools, guides, the push stick and the cable are appliances for the stowage.
Technical Details
| Technical data | |
|---|---|
| Mains supply | 220-240 V | 50 Hz |
| Power | 1800 W |
| Max. power (S6 | S6%) | 2000 W | 25 % |
| Idle speed | 5000 min^-1 |
| Saw blade | 250 mm x 30 mm |
| Number of saw teeth | 24 Pieces |
| Swiveling range of saw blade | 45 ° |
| Max. cutting height at 45° | 65 mm |
| Max. cutting height at 90° | 85 mm |
| Height adjustment continuous | 0-85 mm |
| Diameter of suction adapter | 36 mm |
| Working height | 850 mm |
| Size of working table | 563 mm x 583 mm |
| Table broadening left | 583 mm x 165 mm |
| Table broadening right | 583 mm x 165 mm |
Logistical Data
Length 711 mm
Width 624 mm
Height333 mm
Gross weight
single packaging 22.46 kg
Product weight 19.24 kg
Warranty
Einhell warranty their products for a 2 year period from purchase.
