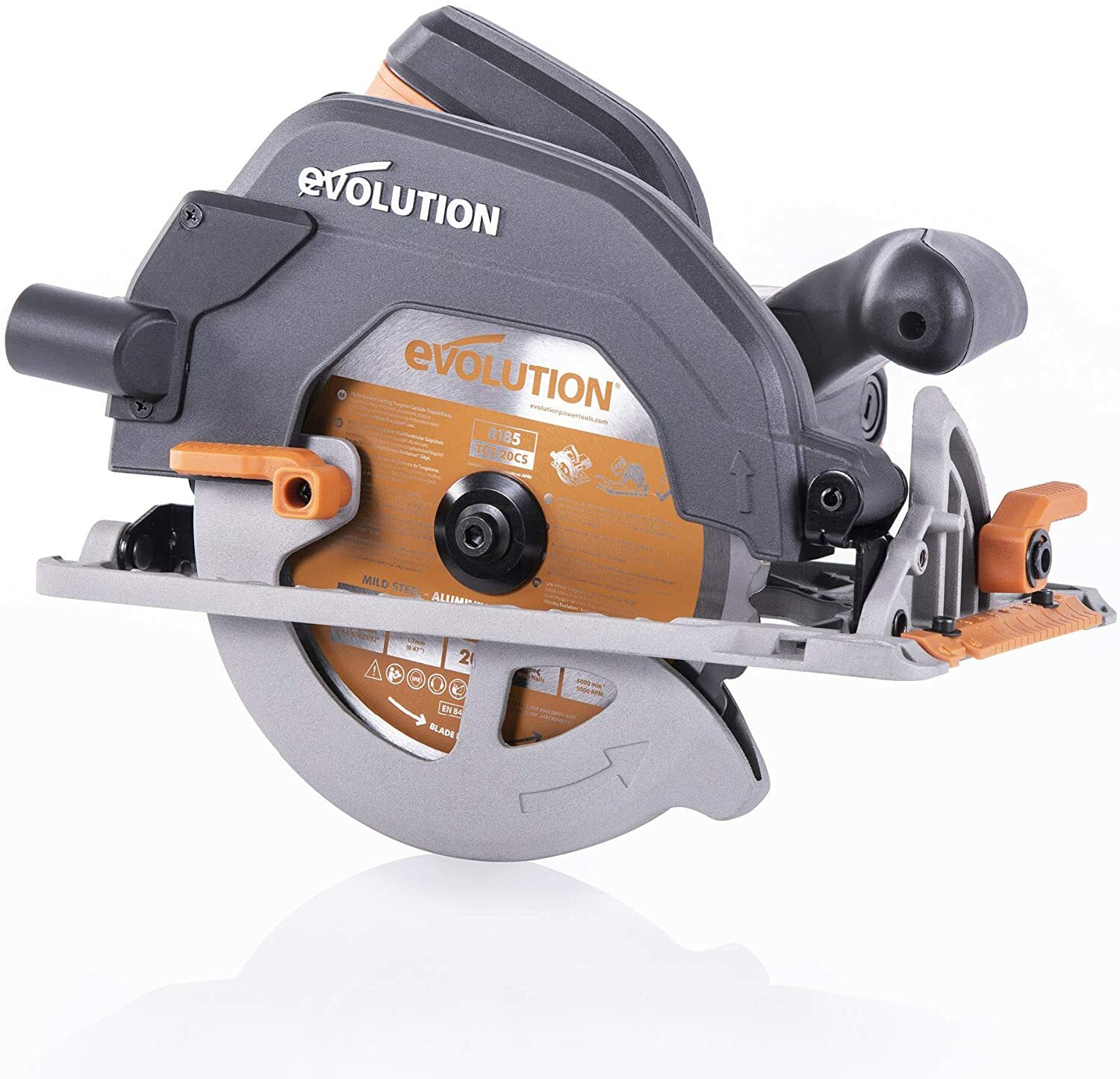

Evolution R185CCS 185mm Circular Saw with TCT Multi-Material Cutting Blade -
Evolution R185CCS 185mm Circular Saw with TCT Multi-Material Cutting Blade
Highlights
Trade rated, best in class, 185mm circular saw, ideal for any professional. Designed in Sheffield, South Yorkshire, this impressive multi-material cutting circular saw with 1600W, the powerful, hi-torque motor is capable of cutting wood even with embedded nails, laminate, aluminium, plastic and even 6mm thick mild steel, all with the same Japanese made, tungsten carbide tipped blade.
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with adjustable 64mm depth of cut - perfect for trench cutting.
- Reliable, smooth square cutting every time in a variety of materials.
- Powerful 1600W hi-torque motor with optimized gearbox & blade system.
- 0° - 60° bevel tilt with 22.5° and 45° bevel detents cuts angles accurately & easily.
- Channelled airflow & base indicators ensure optimum visibility of your cutting line.
- Ergonomic, soft-grip handles to provide maximum control, versatility, and precision.
- Dust extraction port & adaptor included for vacuum compatibility.
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
- 3 Year limited warranty.
Technical Details
| Motor (110V 50Hz): | 1600W |
| Motor (240V 50Hz): | 1600W |
| Speed No Load (110V): | 3700 rpm |
| Speed No Load (240V): | 3900 rpm |
| Max. Bevel (Left): | 60° |
| Circular Saw Base: | Cast Aluminium |
| Cable Length: | 3m |
| Blade Dia.: | 185mm |
| No. of Teeth: | 20 |
| Bore: | 20mm |
| Kerf: | 1.7mm |
| Max. Depth of Cut (0°): | 64mm |
| Max. Depth of Cut (45°): | 40mm |
| Max. Depth of Cut (60°): | 24mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Mild Steel Box Section (Max. Wall Thickness): |
6mm |
| Product Dimensions: | 255mm x 375mm x 265mm |
| Packaging Dimensions: | 370mm x 278mm x 218mm |
| Product Weight: | 4.9 kgs |
| Packaged Weight: | 6 kgs |
| Sound Pressure Level L PA : | 94,3dB(A) K=3 dB(A) |
| Sound Power Level L WA : | 105,3dB(A) K=3 dB(A) |
| Vibration - Main Handle (Sawing Wood): | A h,w = 3,347m/s 2 |
| Vibration - Auxiliary Handle (Sawing Wood): | A h,w = 3,119m/s 2 |
| Vibration - Main Handle (Sawing Metal): | A h,M = 3,572m/s 2 |
| Vibration - Auxiliary Handle (Sawing Metal): | A h,M = 3,241m/s 2 |
| Uncertainty K: | 1,5m/s 2 |
Evolution Warranty
Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty
with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
