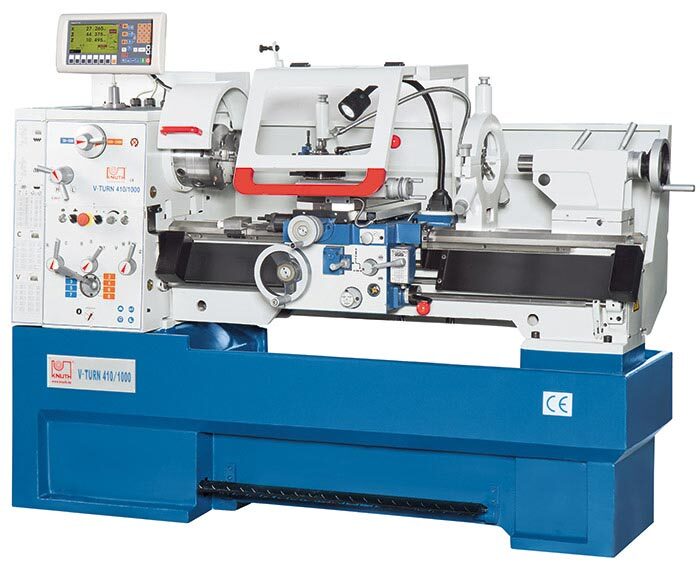

Knuth V-Turn 410 /1000 Precision Lathe ( Part No. 300820 ) Precision complemented by extensive accessories and constant cutting speed.

Knuth V-Turn 410 /1000 Precision Lathe

( Part No.300820 )

Precision complemented by extensive accessories and constant cutting speed.

Ex Stock Availability, 4 weeks, Subject to No Prior Sales.

Highlights

Knuth V-Turn 410 /1000 Precision Lathe

Our bestseller V-Turn is a precision lathe that is also suitable for production. Equipped with an inverter and a high-performance motor, it achieves spindle speeds of up to 3,000 rpm and processes small-diameter workpieces efficiently and with the best quality. The models also offer power and stability for heavier cutting. When facing, the "constant cutting speed" function integrated into the X-Pos adapts the spindle speed to the turning diameter and thus delivers qualities that are comparable to the results of a CNC machine.

• Constant cutting speed
• High spindle speed and engine power
• Extensive standard equipment
• Versatile application possibilities

Detail

• V-constant - the spindle speed is automatically adapted to the changing workpiece diameter during face turning - the almost constant cutting speed on the turning tool cutting edge enables a surface quality that is comparable to the turning results of CNC lathes
• The stable, heavily ribbed machine bed with a solid, one-piece cast base forms a solid basis
• Wide, hardened and ground guideways guarantee best turning results and durability
• Generously dimensioned spindle bearings and the precision main spindle for excellent concentricity
• Main spindle gear with hardened and ground gears and shafts, smooth-running and high-speed
• Main spindle motor with 5.5 kW power for powerful cutting
• Spindle speeds infinitely adjustable from 30-550 and 550-3000 rpm
• Micrometer and turret stop as standard
• Easy to maintain thanks to the integrated central lubrication on the support
• The extensive functions of the X.Pos position indicator are supplemented here by the digital speed indicator and easily programmable additional functions
• Incl. 3-axis position indicator with integrated spindle speed indicator, fully assembled
• 3 Axis Position Indicator
• Higher work accuracy
• Lower error rate
• Greater production security
• Significant time savings
• productivity increase
• Optimal readable display
• User-friendly functions
• Clearly arranged keyboard
• Resolution 0.01 / 0.005mm
• coordinate value specification
• Retaining the axis position when the display is switched off
• Storage for 10 tools
• Radius / diameter switching
• Conversion mm/inch
• Display of upper (Z0) and bed slides (Z1) both separately and in difference / cumulative switching on lathes
•

Technical Details

Standard Equipment

Revolving steady rest

Fixed centering point
Reducing sleeve

3-axis position indicator X.pos 3.2 VC 4
-B face plate chuck Ø 250 mm

Clamping plate Ø 350 mm

Change gears Quick-change tool holder head
WB
Quick-change tool holder WBD 25120
Coolant system
Fixed steady rest
Turret stop
Micrometer stop

Chip tray

Splash protection wall

Support shield

Chuck protection

Foot brake

LED work light

Thread gauge

Operating tools

Operating instructions

Optional Tooling

Wide range of tooling options available

3-jaw lathe chuck 200mm D1-6 (steel) SKU: 146372

4-jaw lathe chuck 200mm D1-6 (steel) SKU: 146472

Interchangeable holder WBD 25X120 SKU: 103291

Interchangeable holder WBD 25X140 SKU: 103292

Live center MK4 SKU: 106755

Interchangeable holder WBD 32X120 SKU: 103293

Oscillating elements LK 3 SKU: 103330

Interchangeable holder WBD 32X140 SKU: 103294

Clamp turning tool set 16/20/24mm 9 pcs SKU: 108780

Interchangeable holder WBH 32X130 SKU: 103295

Clamp turning tool set 25mm SKU: 108670

Interchangeable holder WBJ 40X120 SKU: 103296

WBA-A2a cutter holder SKU: 103297

Insert set 16/20/24mm, 30 pcs. SKU: 108782

Interchangeable holder WBH 18x120 SKU: 103298

Insert set 25mm, 30 pcs. SKU: 108675

Coolant concentrate 5 l SKU: 103184

Reducing sleeve MT 4/1 SKU: 103820

Power Worker chip removal device SKU: 123040

Reducing sleeve MT 4/2 SKU: 103825

Reducing sleeve MT 4/3 SKU: 103830

knurl holder SKU: 108520

Extension sleeve MT 4/5 SKU: 104670

Insertion spigot MK4 / B16 SKU: 104745

Knurl set, oblique SKU: 108521

Insertion spigot MK 4/B 18 SKU: 104750

Quick-adjust hollow spindle stop size 6 46-58 SKU: 103020

Keyless chuck 1-13 mm B16 SKU: 104765

Accessory set MK 4 8 pcs. SKU: 104594

Live centers in the MK4 range SKU: 106790

Keyless chuck 3-16 mm B18 SKU: 104770

Measuring tool set M5 SKU: 108344

Turning tool set 8 pcs. 20mm SKU: 108700

Clamp turning tool set 20mm SKU: 108773

spare seat 12/16/20mm 5pcs. / Clamp turning tool SKU: 108775

Clamp turning tool set 20mm 9 pcs. SKU: 108778

Insert set 20mm, 30 pcs. SKU: 108779

soft top jaws for 3-jaw chuck 200mm (116501/116502) SKU: 116551

soft top jaws for 4-jaw chuck 200mm (116601/116602) SKU: 116651

Contact us via Email for price details

Operator Training

Operator training available in showroom subject to quotation

prior to delivery. Email us to outline your needs.
