Knuth Roturn 402 C CNC Inclined Bed Lathe( Part No. 180628 ) Powerful , productive and cost effective
Knuth Roturn 402 C CNC Inclined Bed Lathe
( Part No. 180628 )
Powerful , productive and cost effective
Ex Stock Availability, Currently 4 weeks to site, Subject to No Prior Sales.
Highlights
This machine of the ROTURN C series impresses with the classic virtues of a compact CNC production lathe. With its Siemens 828 D Basic control, it meets all the requirements for current control technology. The inclined bed machine with 8-station tool turret and powerful 15 kW (20 hp) main spindle motor has a hydraulic 3-jaw chuck with through-hole. The tailstock is equipped with a hydraulically operated quill and a large stroke. A flat top conveyor and a high-performance coolant system round out the standard equipment.
- Powerful main spindle motor
- 8 station tool turret
- Includes chip conveyor
- Siemens 828 control
- Chuck with through-hole

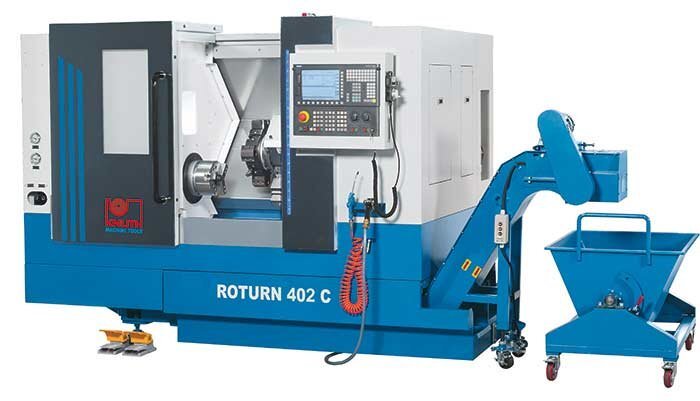

Knuth Roturn 402 C CNC Inclined Bed Lathe
- Highlights
- Future-proof: the Siemens 828 D Basic control meets all requirements for advanced control technology
- A hydraulic 3-B chuck with passage is included in the scope of delivery as standard
- Hinged belt conveyor and high-performance coolant system included in standard equipment
- Heavy machine frame with inclined bed ensuring high rigidity and easy chip removal
- Precise linear guides in X and Z for high stability and accuracy even at highest loads
- The enclosed work space is easily accessible through a large sliding door
- Tailstock with hydraulically operated quill with a maximum stroke of 85 mm
- Automatic central lubrication system ensures reliable lubrication of guideways
- Max. Spindle speed 3.000 1/min (Roturn 400C) or 2.000 1/min (Roturn 402C)
- Motor power 11/15 kW
- The 8-station tool turret ensures a large work area and quick and precise tool changes
Steering/Control
Siemens 828D Basic
- Compact, robust and maintenance-free operator panel CNC with dedicated system software for turning, milling and grinding technologies
- High-quality, robust operator panels made of die-cast magnesium with IP65 protection
- Maintenance-free operator panel front, e.g. B. No fan, battery or hard drive
- Highest processing precision with 80-bit NANOFP accuracy
- New SINUMERIK Operate user interface, consistent with SINUMERIK 840D
- ShopTurn/ShopMill (option): Shortest programming time when manufacturing individual parts and small series
- Advanced Surface: the best workpiece surfaces with a minimum of processing time thanks to innovative, high-performance CNC functions
- SINUMERIK MDynamics technology package with the new Advanced Surface function: perfect workpiece surfaces and extremely short processing times when manufacturing mold components
- ProgramGUIDE: shortest processing time and maximum flexibility in the production of large series parts
- Unique range of technology cycles - from the machining of any turning and milling contours with residual material detection to process measurement
- G-Tech is a grinding package with extensive CNC functions from the inexpensive entry-level model to highly productive machines
- Animated Elements: unique operating and programming support with moving image sequences
- State-of-the-art data transmission via USB stick, CF card and network (Ethernet)
- SINUMERIK Integrate for production Access MyMachine /Ethernet allows worldwide remote diagnostics
- Easy Message: integrated mobile radio modem for optimal process monitoring and maximum machine availability via text messages (SMS)
- Easy Extend: flexible handling of machine units, e.g. B. an A-axis/dividing head
- Maintenance planner: Signaling of pending maintenance tasks based on the defined maintenance intervals
Features:
- Operator panel variants for horizontal or vertical operator panel housing
- Proximity/distance sensor for smart display control
- Integrated QWERTY CNC full keyboard with short-stroke keys
- Additional Ethernet interface on the rear of the CNC for permanent factory networking
- Additional USB interface on the back of the CNC for the machine control panel
- Integrated PLC based on the instruction set of the SIMATIC S7-200 with ladder diagram programming (ladder steps)
- I/O interface based on PROFINET for connecting PLC I/O and machine control panel
- Up to 5 axes/spindles
- 1 analog spindle
- 1 processing channel/operating mode group
- Integrated tool management with tool life control
- Configurable user screens with SINUMERIK Integrate for engineering Run MyScreens (Easy Screen)
- SINUMERIK Integrate for engineering Run MyRobot /EasyConnect for easy connection of robots and handling systems
- Integrated data archiving procedure for easy data update
Technical Details
| WORKING AREA | |
|---|---|
| Workpiece length (max.) | 430 mm |
| Center height | 200 mm |
| Turning diameter over bed | 400 mm |
| Turning diameter over support | 250 mm |
| TRAVELS | |
|---|---|
| Travel X-axis | 200 mm |
| Travel Z-axis | 450 mm |
| HEADSTOCK | |
|---|---|
| Lathe chuck diameter | 250 mm |
| Speed range | 50 1/min - 2000 1/min |
| Spindle mount | A2-8 |
| Spindle bore | 86 mm |
| Spindle bore with draw tube | 75 mm |
| RAPID FEED | |
|---|---|
| Rapid feed X-axis | 16000 mm/min |
| Rapid feed Z-axis | 20000 mm/min |
| TOOLING | |
|---|---|
| Number of tool stations | 8 positions |
| Boring bar mount diameter | 40 mm |
| TAILSTOCK | |
|---|---|
| Tailstock taper | 5 MT |
| Tailstock quill diameter | 88 mm |
| Tailstock quill stroke | 85 mm |
| DRIVE CAPACITY | |
|---|---|
| Main motor rating | 15 / 11 kW |
| Motor rating coolant pump | 0,18 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 3,8 m x 1,87 m x 1,91 m |
| Weight | 3400 kg |
Standard Equipment
Siemens 828 D control
hydr. 250 mm 3-jaw lathe chuck with through-hole
hydr. tailstock
automatic central lubrication
chain-type chip conveyor
heat Exchanger for electric control cabinet
closed work space
LED work lamp
coolant system
air gun
coolant system flush gun
operating tools
operator manual
Optional Equipment
Live Centers MT 5
SKU: 106760
Optional Automation Potential
Knuth have recently demonstrated and proven the enhanced automation potential
of this powerful machine tool by the addition of the flexloader 10 robotic based flexible loading and unloading system
for CNC lathes and CNC machining centres, creating an enhanced machine tool capable of long periods of production autonomy.
See this demonstrated in the attached video recently released by the company.
Contact ourselves for further details of this technology and commercial considerations of this powerful combination.
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
Shipping
Fully inclusive shipping rates covering transportation, import customs documentation, duties
quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands
and other remote sites should seek advice prior to order via email. Clients will be responsible for
their own site offload and siting at point of use.
