Knuth ABS 460 L Fully Automatic Band Saw ( Part No. 152766) A new generation of fully automatIc band saws with more automation, faster cuts and less down - time.

Name: Knuth ABS 460 L Fully Automatic Band Saw ( Part No. 152766) A new generation of fully automatIc band saws with more automation, faster cuts and less down - time.
SKU: 152766
Price: 27599.0 GBP
Availability: InStock

Store / Welding & Fabrication Plant, Consumables

£27,599.00

In stock

Product Details

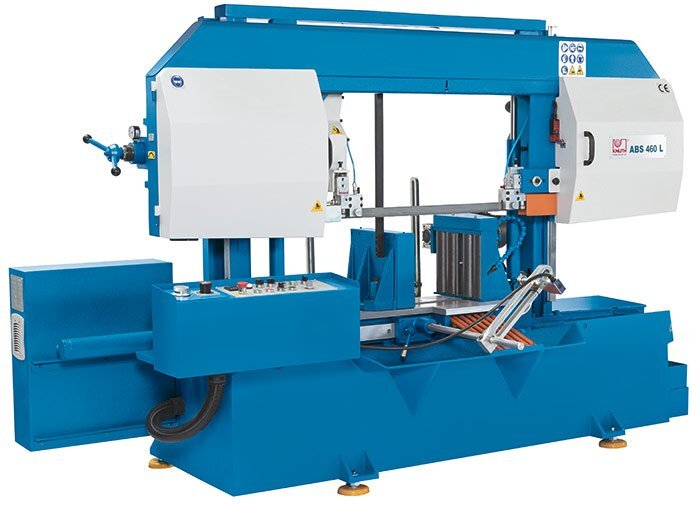

Knuth ABS 460 L Fully Automatic Band Saw

( Part No. 152766)

A new generation of fully automatIc band saws with more automation, faster cuts and less down - time.

Ex stock availability. 4 weeks to site. Subject to no prior sales.

Highlights

The models of the ABS-L series are fully automatic horizontal band saws for precisely straight sawing of large and heavy workpieces. A rigid dual column frame forms the heart of the extremely stable construction. Using the central control panel, you can regulate the saw frame feed, steplessly adjust the saw blade speed and machine the workpiece hydraulically. The robust automatic material feed does not need any electronics or programming and still offers high repeat and dimensional accuracy.

Dual column design for superior stability
Material feed system with workpiece guide rollers
Hydraulic workpiece clamping
Optical detection of the workpiece height
Feed roller table 1.2 m (4 ft)

Knuth ABS 460 L Fully Automatic Band Saw

Torsionally rigid machine frame made of a robust steel construction with high-quality linear guides
Proven material feed system with hardened workpiece guide rollers and hydraulic workpiece clamping
Shorter machining times are made possible by an advanced hydraulic saw frame feed design, including a new pressure control system to master any sawing tasks - infinitely variable setting of feed speed and cutting pressure
All required settings are accessible and clearly labeled at the second control valve for easy adjustments
Optical registration of the workpiece height allows empty runs in rapid feed mode for an optimum change-over to work feed and limiting of the vertical saw frame travel - everything is automated to reduce operator work load

Technical Detail

CUTTING CAPACITIES
Cutting capacity 0° (flat) (length x width)	470 mm x 460 mm
Cutting capacity 0° (round)	460 mm
Cutting capacity 0° (square)	460 mm
Cutting speed infinitely variable	20 m/min - 100 m/min
Stop length	500 mm
Aaccuracy of the feeding	0,5 mm

DRIVE CAPACITY
Motor rating main drive	4 kW
Motor rating hydraulic pump	0,55 kW
Motor rating feed	0,25 kW

MEASURES AND WEIGHTS
Overall dimensions (length x width x height)	3,1 m x 1 m x 1,8 m
Weight	1500 kg
Blade dimensions	5200 mm x 41 mm x 1,3 mm

Standard Equipment

saw-band
workpiece counter
band break control
coolant system
hydraulic clamping
mechanical saw blade tensioning with hydraulic pressure gauge
feed roller table 1,2 m
linear stop
operator instructions

Optional Equipment

Optional equipment available for this machine subject to seperate quotation.

Bi-Metallic Bandsaw Blade for HB 440 DG/ABS 460 B/HB 460 (3 T) SKU: 119820

Bi-Metallic Bandsaw Blade HB 440 DG/ABS 460B/HB 460 (4T) SKU: 119821

Bi-Metallic Bandsaw Blade HB 440 DG/ABS 450B/HB 460 (5T) SKU: 119822

Coolant Concentrate 5 Ltr . SKU: 103184

chip conveyor for ABS 460 L SKU: 251874

hydraulic blade tentioning for ABS 460 L SKU: 251875

3 meter roller table for ABS 460 L SKU: 253890

micro cooling system SKU: 253719

Laser pointer for ABS S NC / ABS H CNC SKU: 253753

Clamping force controlled at operator panel SKU: 253899

Contact Traxx Industries for price and delivery details.
