Knuth ABS 320 B Fully Automatic Band Saw ( Part No. 152755) Fully automated for continuous operation- with proven reliability, convincing price and performance.
Knuth ABS 320 B Fully Automatic Band Saw
( Part No. 152755)
Fully automated for continuous operation- with proven reliability, convincing price and performance
Ex stock availability. 4 weeks to site. Subject to no prior sales.
Highlights

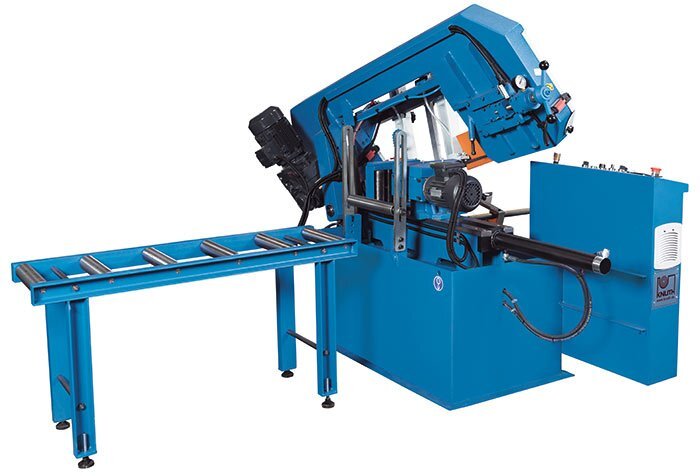

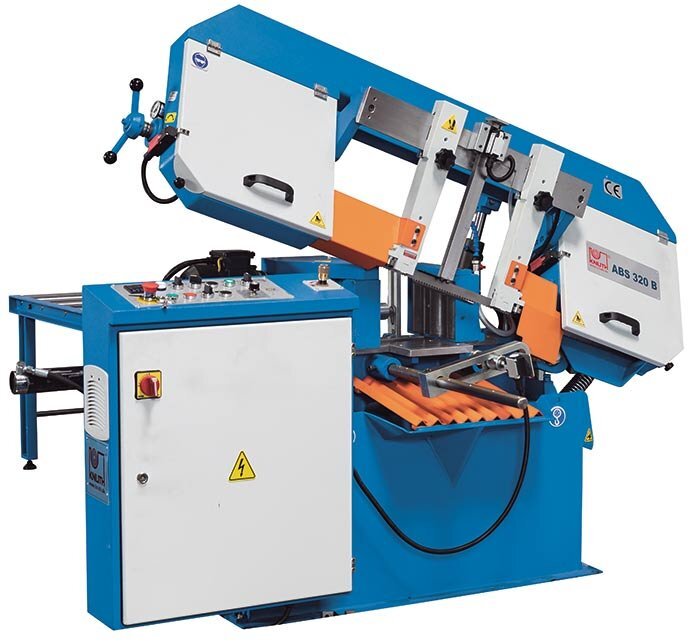

Knuth ABS 320 B Fully Automated Band Saw
The ABS 320 B is a fully automatic band saw designed for maximum reliability. The model impresses with high-quality components and a heavy, solid machine frame. The automatic feed via driven rollers in the clamping jaws enables continuous operation, perfect for single piece and series production. This inexpensive and sturdy production solution is very popular due to its high efficiency and ease of use. After more than 15 years it is still one of the best-selling KNUTH band saws.
- Roller material feed vise for fully automatic operation
- Height adjustment with switch to speed up the cutting process
- Workpiece counter to facilitate continuous production
- Manual top vise for bundle cutting
Detail
- Saw frame and machine bed are made of premium cast-iron for torsion-free performance even under maximum loads
- New helical gears ensure above-average service life and low maintenance
- Saw frame feed and cutting speed are infinitely variable

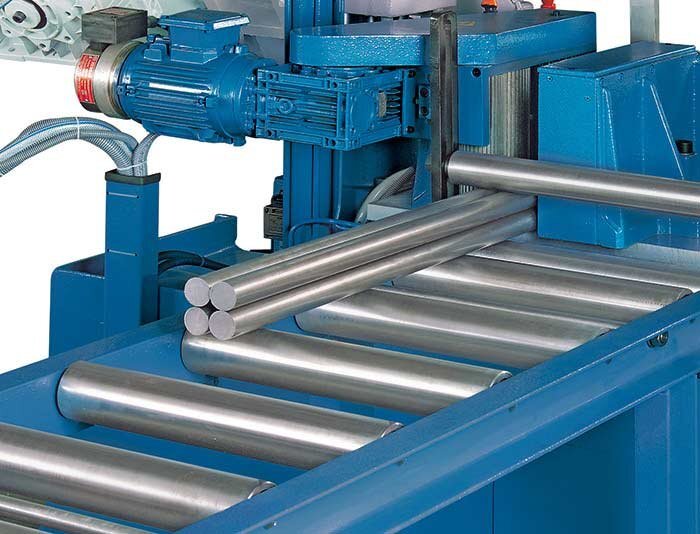

- Reliable roller feed system with hydraulic workpiece clamping
- Automatic adjustment of cutting height
- A bundle vise is provided for cutting entire material packs to length
Technical Detail
| WORKING AREA | |
|---|---|
| Roller guide length | 1200 mm |
| Feed rollers | 6 positions |
| CUTTING CAPACITIES | |
|---|---|
| Cutting capacity 0° (round) | 320 mm |
| Cutting capacity 0° (square) | 300 mm |
| Cutting capacity 0° (flat) (length x width) | 320 mm x 200 mm |
| Cutting speed | 20 m/min - 100 m/min |
| Stop length | 500 mm |
| Accuracy of the feeding | 0,5 mm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 2,25 kW |
| Motor rating hydraulic pump | 0,37 kW |
| Motor rating feed | 0,25 kW |
| Motor rating coolant pump | 0,12 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 1,85 m x 0,85 m x 1,25 m |
| Weight | 660 kg |
| Blade dimensions | 3660 mm x 27 mm x 0,9 mm |
Standard Equipment
automatic band break control
bundle vise

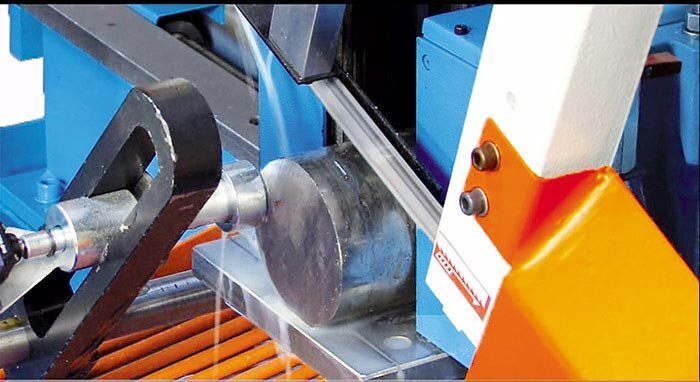

coolant system
operating tools
saw-band
chip wiper
feed roller table 1,2 m
hydraulic part clamping
operator instructions
Optional Equipment
Optional equipment available for this machine subject to seperate quotation.
Contact Traxx Industries for price and delivery details.
