Knuth SBS 255 Horizontal Band Saw ( Part No. 152786) High cutting capacity, compact design and quick action angle adjustment
Knuth SBS 255 Horizontal Band Saw
( Part No. 152786)
High cutting capacity, compact design and quick action angle adjustment
Ex stock availability. 1/2 weeks to site. Subject to no prior sales.
Highlights

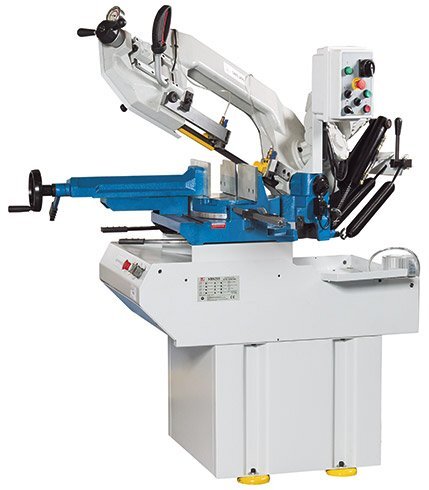

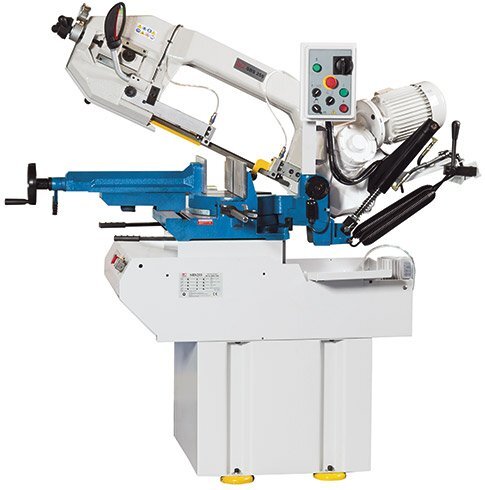

Knuth SBS 255 Horizontal Band Saw
This universal workshop band saw is model of the SBS series. The saw frame of the compact machine can be swiveled to the right and left, up to a maximum of 60 degrees. The user can guide the saw frame by hand or move it by means of a feed rate controlled by a hydraulic valve. The belt speed of the SBS 255 can be controlled by an inverter. The model also has hydraulic workpiece clamping and an automatic saw frame lift after the end of the cut. This means that the machine is also suitable for efficient processing of small series.
- One-piece cast-iron saw frame
- Rigid vise with long stroke
- High cutting capacity
- Compact design
- Quick-action angle adjustment left and right
Detail
- Rigid vise with lateral slide, long stroke and long guideways in the movable jaw segments
- The one-piece cast-iron saw frame is torsion-proof and swivels 60° to the right, and 45° to the left
- Rigid saw blade guides offer a wide adjustment range for workpieces with small and large cross-sections
- The combination of carbide jaws and adjustable ball bearing guides ensure precision cuts
- A wide bi-metallic saw blade ensures additional stability during heavy machining operations
- Saw frame features manual feed for sensitive workpiece characteristics
- Hardened, polished helical gear with large bronze drive wheel for long service life
- Quiet operation, short machining times and easy handling ensure increased productivity
- Powerful motor for continuous operation
- High-capacity coolant system is included
- Includes base
- 2 saw blade speeds, selectable at the drive motor
- Mechanical quick-action clamping allows for quick release and fixation of workpieces via hand-lever; ideal for small batches
- The SBS 255 features a round setup table, which pivots in synchrony with the saw frame
Technical Detail
| CUTTING CAPACITIES | |
|---|---|
| Cutting capacity 0° (round) | 255 mm |
| Cutting capacity 0° (square) | 230 mm |
| Cutting capacity 0° (flat) (length x width) | 315 mm x 230 mm |
| Cutting capacity 45° (round) L | 160 mm |
| Cutting capacity 45° (square) L | 160 mm |
| Cutting capacity 45° (round) R | 195 mm |
| Cutting capacity 45° (flat) L (length x width) | 160 mm x 160 mm |
| Cutting capacity 45° (square) R | 195 mm |
| Cutting capacity 45° (flat) R (length x width) | 195 mm x 230 mm |
| Cutting capacity 60° R (round) | 115 mm |
| Cutting capacity 60° R (square) | 115 mm |
| Cutting capacity 60° R (flat) (length x width) | 115 mm x 160 mm |
| Cutting speed | 45 / 90 m/min |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 1,5 kW |
| Supply voltage | 400 V |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 1,72 m x 0,73 m x 1,13 m |
| Weight | 380 kg |
| Saw blade dimensions | 2750 mm x 27 mm x 0,9 mm |
Standard Equipment
1 saw blade
coolant system
base
pressure gauge for saw blade tensioning
hydraulic cylinder for saw frame
operator instructions
Optional Equipment
Optional equipment available for this machine subject to seperate quotation.
Contact Traxx Industries for price and delivery details.
