Knuth SSB 70 Xn Advanced Column Drilling Machine
Knuth SSB 70 Xn Advanced Column Drilling Machine
(Part No. 101681 )
Features a large touchscreen control panel with excellent readability for a safe and intuitive operation
Availability. Ex Stock. 2/3 weeks to site. Subject to no prior sales.
Highlights

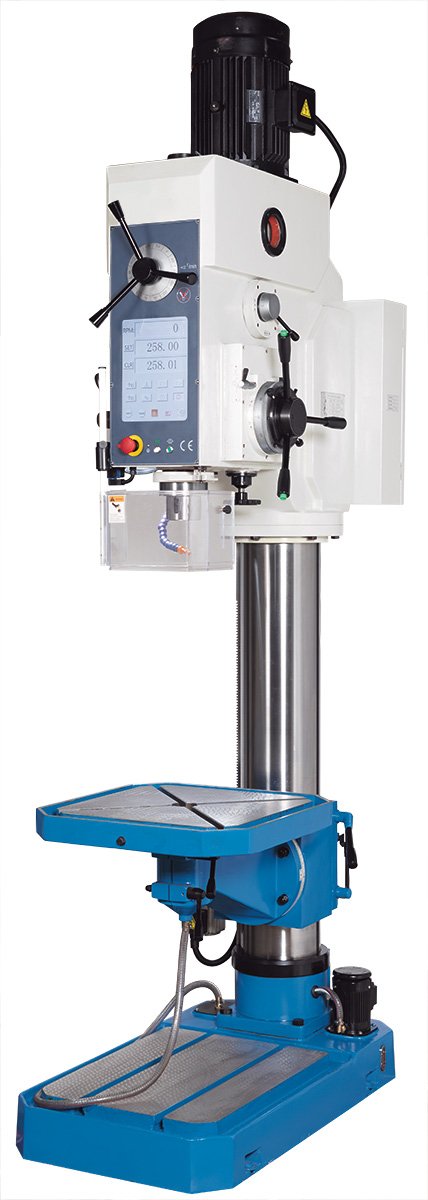

Knuth SSB 70 Xn Advanced Column Drilling Machine
SSB Xn Series drill presses are the right choice for any workshop, from maintenance to finishing. The Xn Advance Series models feature a large touchscreen control panel with excellent readability for a safe and intuitive operation. Spindle speed and quill feed are selected by the user via a rugged manual transmission. The setup table with motorized vertical movement makes handling of heavy clamping tools and workpieces easier. This drill press is ideal for custom and small-series machining, and especially for maintenance of large equipment in the steel and industrial construction sector.
- High drilling power
- Touchscreen control panel
- Precision-stepped gear drive
- Quill feed shifted via manual transmission
- Motorized table height adjustment
- Work table swivels and rotates
- 3-year Warranty on the Touchscreen
Product Details
- The top model of this series features an extra heavy construction with a thick-walled column
- Ideal for single part and batch productions, for drilling, countersinking, reaming, and thread-cutting with large diameters
- Base, column, table and gear head are made of premium high-quality cast iron

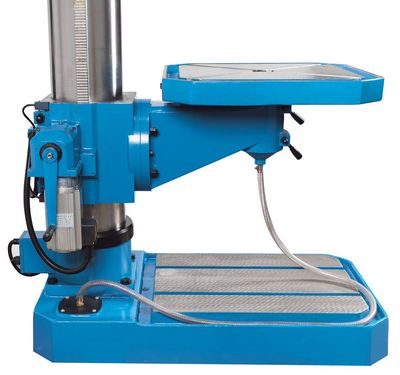

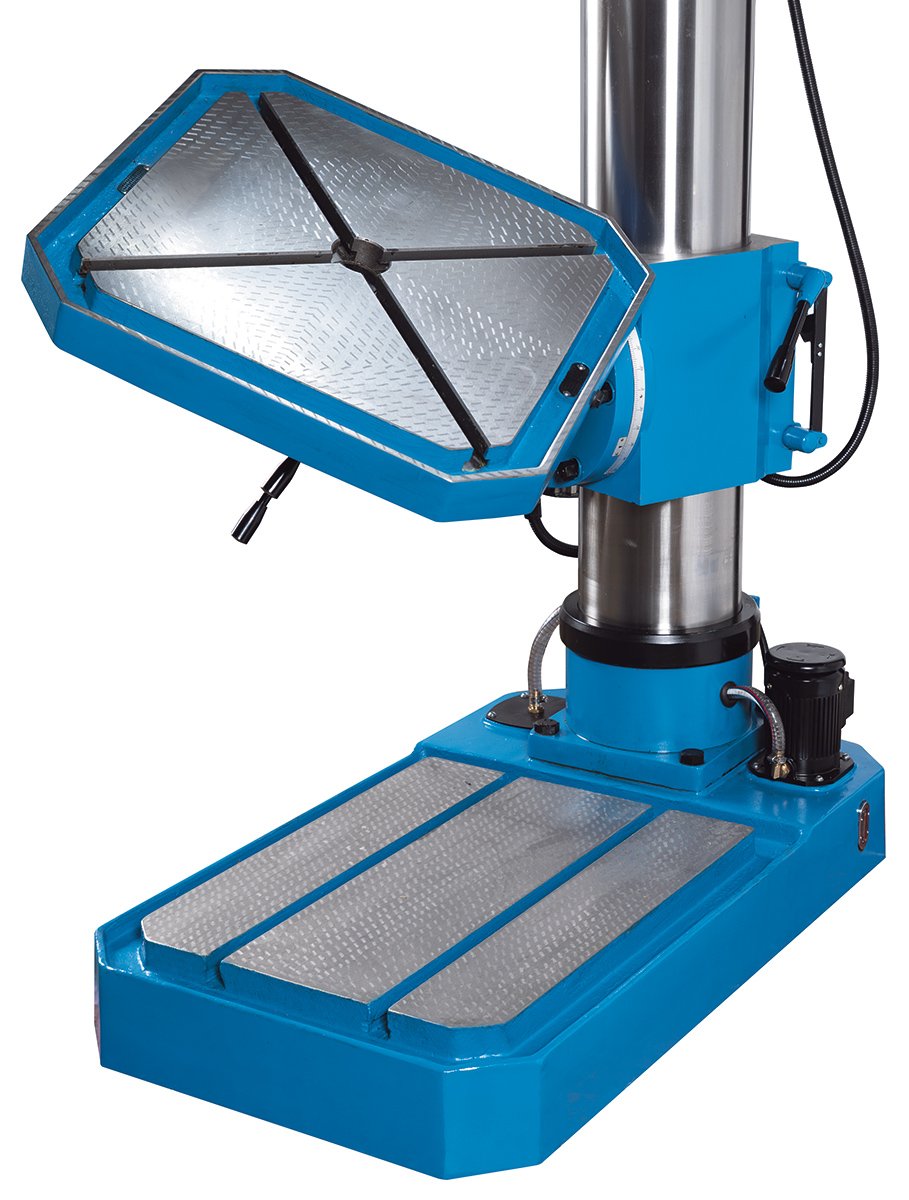

- The large work table with diagonal chip flutes can be rotated and swiveled
- Table height adjustment via a powerful motorized drive
- Main spindle and feed gears run in an oil bath ensuring high torque across the entire speed range
- The automatic quill feed is actuated via gears and shifted via an electromagnetic clutch
- For manual operation, the desired drill depth can be selected at the capstan handle
- A coolant device and a workplace lamp are standard accessories
- The rugged LED work light with splash guard is bright, energy-efficient, and glare-free
- All machines in this series include a thread cutting function as standard equipment

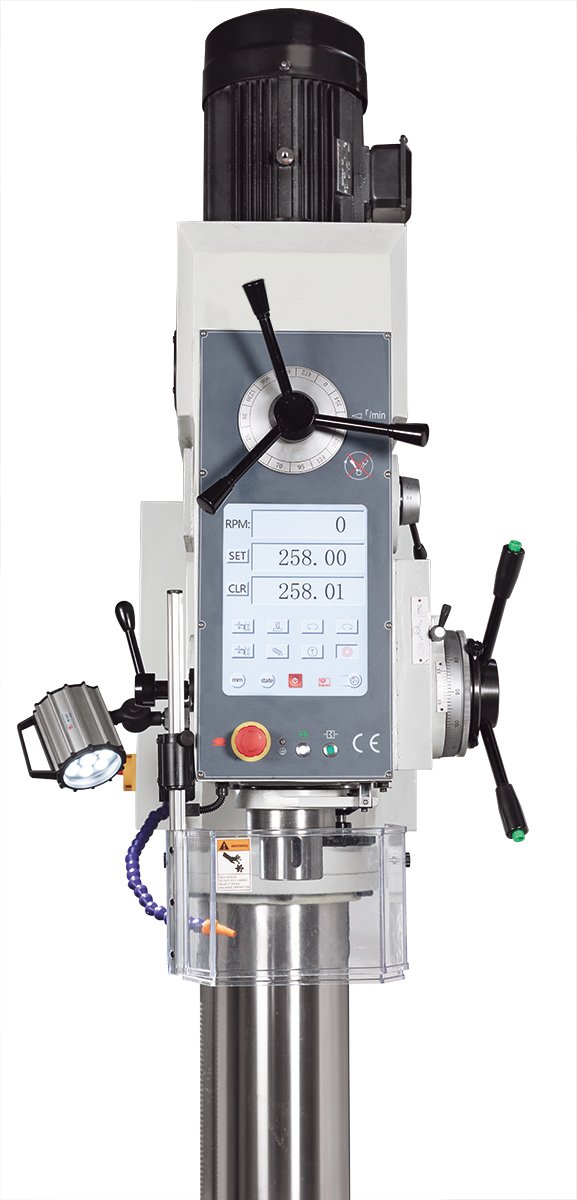

Modern operating concept with rugged touchscreen display
- The large touchscreen features a rugged, resistant surface
- The current speed is displayed on the touchscreen
- An electronic depth stop halts automatic feed with greater accuracy and no mechanical stress
- Upon reaching the desired thread depth, the spindle rotation will automatically reverse
- Measuring units for input and display can be selected by the operator (mm or inch)
- Coolant system and table feed can be activated on the touchscreen
- The built-in operating hour counter aids in monitoring service intervals and cost calculation
Technical Details
| Working area | |
|---|---|
| Drilling capacity | 70 mm |
| Tapping capacity, steel | M 50 |
| Table set up area | 600 mm x 600 mm |
| Manual table travel | 690 mm |
| Powered table travel | 600 mm |
| Table swivel range (max.) | ± 45° |
| Quill stroke | 270 mm |
| Column diameter | 220 mm |
| Spindle nose-to-table surface distance manuel | 792 mm |
| Spindle nose-to-table surface distance motorised | 740 mm |
| Spindle nose-to-foot distance | 1375 mm |
| Throat depth | 420 mm |
| T-slots, width | 16 mm |
| Number of T-slots | 2 positions |
| Headstock | |
|---|---|
| Spindle mount | 5 MT |
| Speed range | 38 1/min - 1230 1/min |
| Feed | |
|---|---|
| Quill feeds | 0,1- 0,4 mm/R |
| Drive capacity | |
|---|---|
| Motor rating main drive | 5,5 kW |
| Measures and weights | |
|---|---|
| Overall dimensions (length x width x height) | 1,22 m x 0,65 m x 2,82 m |
| Weight | 980 kg |
