Knuth SBS 1270/2.0 Folding Machine ( Part No. 131363) Heavy manual folding machine with segmented upper tool

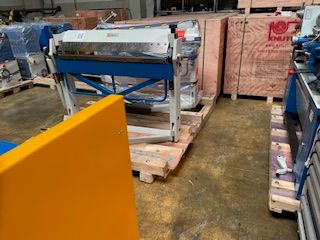

Knuth SBS 1270/2.0 Folding Machine
( Part No. 131363)
Heavy manual folding machine with segmented upper toolCurrent Availability, 1/2 weeks lead time to site, Subject to no prior sales.
Highlights
The folding machines of the SBS series are used for bending thin sheets. Due to their compact design, they fit easily into small workshops and cover a wide range of applications with their segmented upper tool. With an adjustable angle stop, these folding machines are also suitable for the production of small series.
- Compact and powerful
- Segmented upper tool for increased bending options
- Built-in manual bending compensation
- Adjustable angle stop for batch production
- Easy to use
- Detail
- For formed component bending
- Compression spring for top counterbalance
- Cam lock and rebound spring for bending beam counterbalance
- Bow handle for bending beam rotation
- Adjustable bending angle stop with scale up to 135°
- Segmented top beam tools
- Segment size: 25, 30, 35, 40, 45, 50, 75, 100, 150, 200, 250 ,270 mm
Technical Details
| WORKING AREA | |
|---|---|
| Plate thickness (max.) | 2 mm |
| Working length | 1270 mm |
| Bending bar angle (range) | 135° |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 1,6 m x 0,9 m x 1,18 m |
| Weight | 330 kg |
Standard Equipment
Segmented sharp nose tool type upper die
operator manual
